Extron electronics IPCP Pro Series User Manual

IPCP Pro Series • Reference Information 56
Unmounting a DIN Rail Unit
If the need arises, the IPCP Pro 350DR or IPCP Pro 355DR can be removed from the DIN
rail, whether or not cables are still attached. Remove or unmount the unit as follows:
1. Pull the mounting clip down to release the unit from the bottom of the rail (see figure 30,
1
). If you cannot grasp and pull the clip by hand, insert a small, flat-bladed screwdriver
(such as an Extron Tweeker) through the slot in the clip and pull it downward.
2. While the clip is pulled down, tilt the IPCPPro away from the DIN rail and lift it off the rail
(see
2
).
1
2
Tilt unit to
dismount.
Pull the clip
to release the unit
from the rail.
Locked
Unlocked
Rear View
Side View

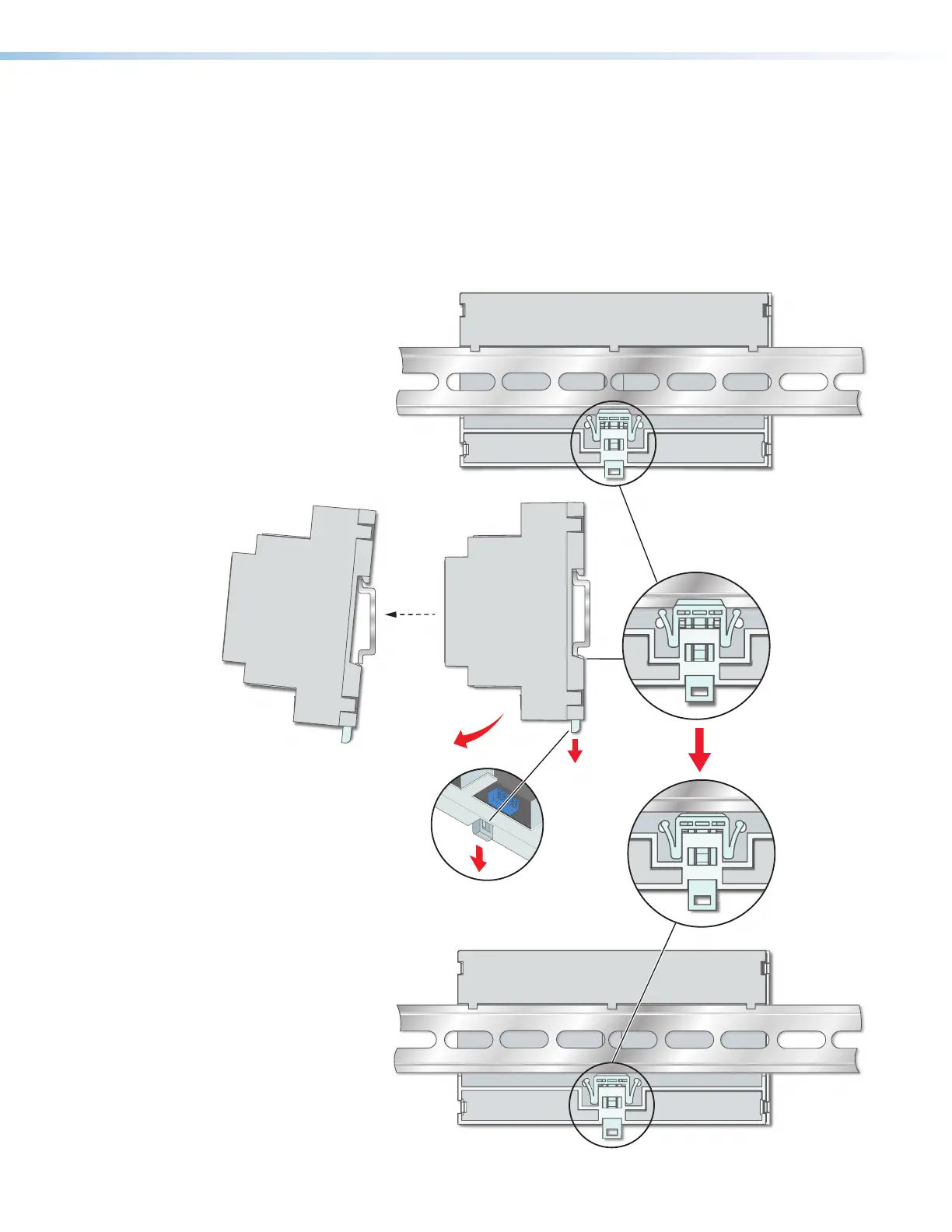

Figure 42. Unmounting the Unit
