EXXFIRE 750CNF - Page 36

version 4.7.2 – July 10th, 2022 Firmware version V2.1.7 and higher
EXXFIRE Installation and Service Manual 36
15. After the test, the squib simulator can be reset by pressing the "RESET" button on the squib
simulator. All red LEDs on the squib simulator should be turned off

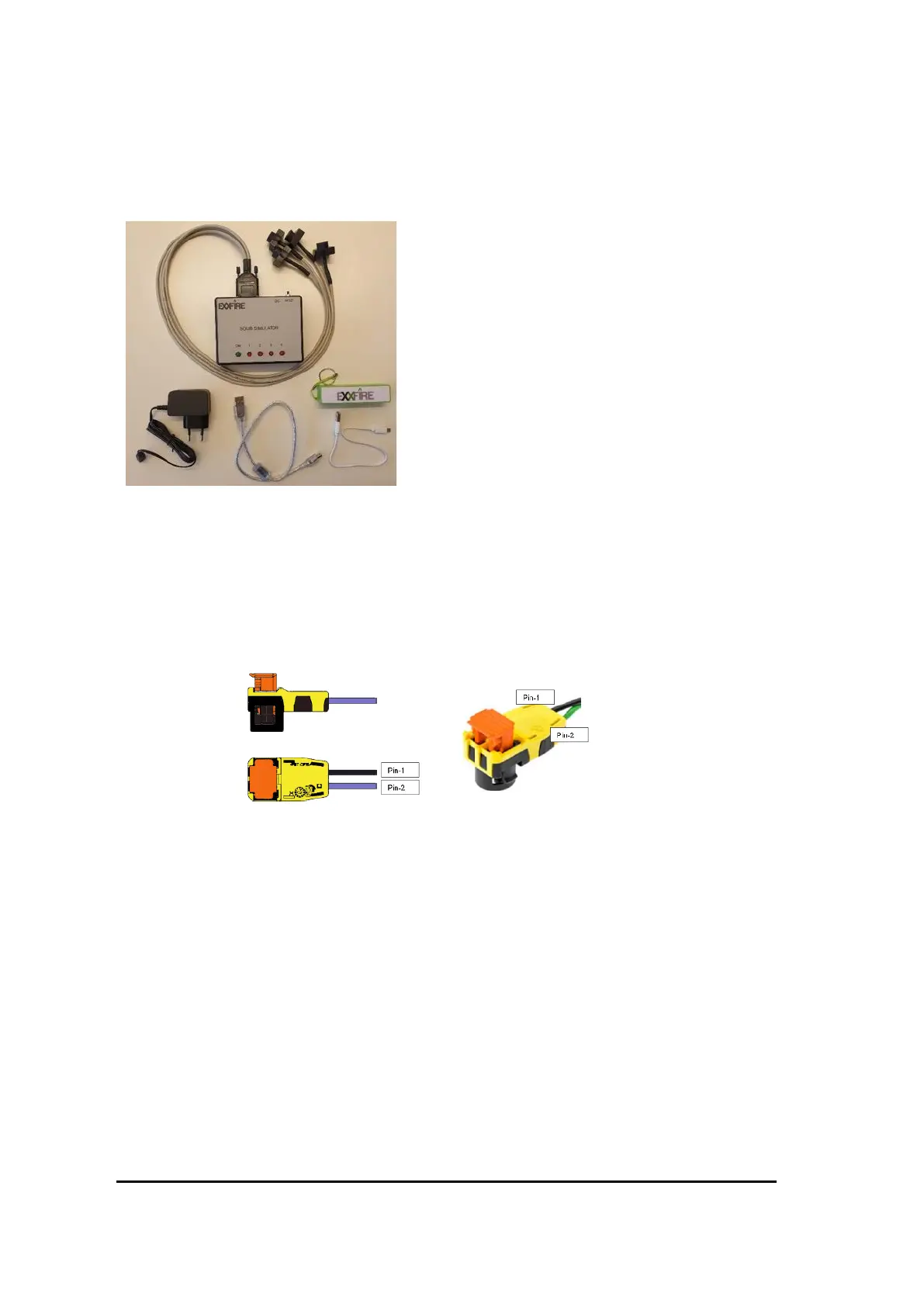

Figure 14 Squib simulator
Figure 15 Squib connector showing pin numbering (colours of the wiring can be different)
