FSG 90 System
3 Installation
December 2014 FAV_D10024 19

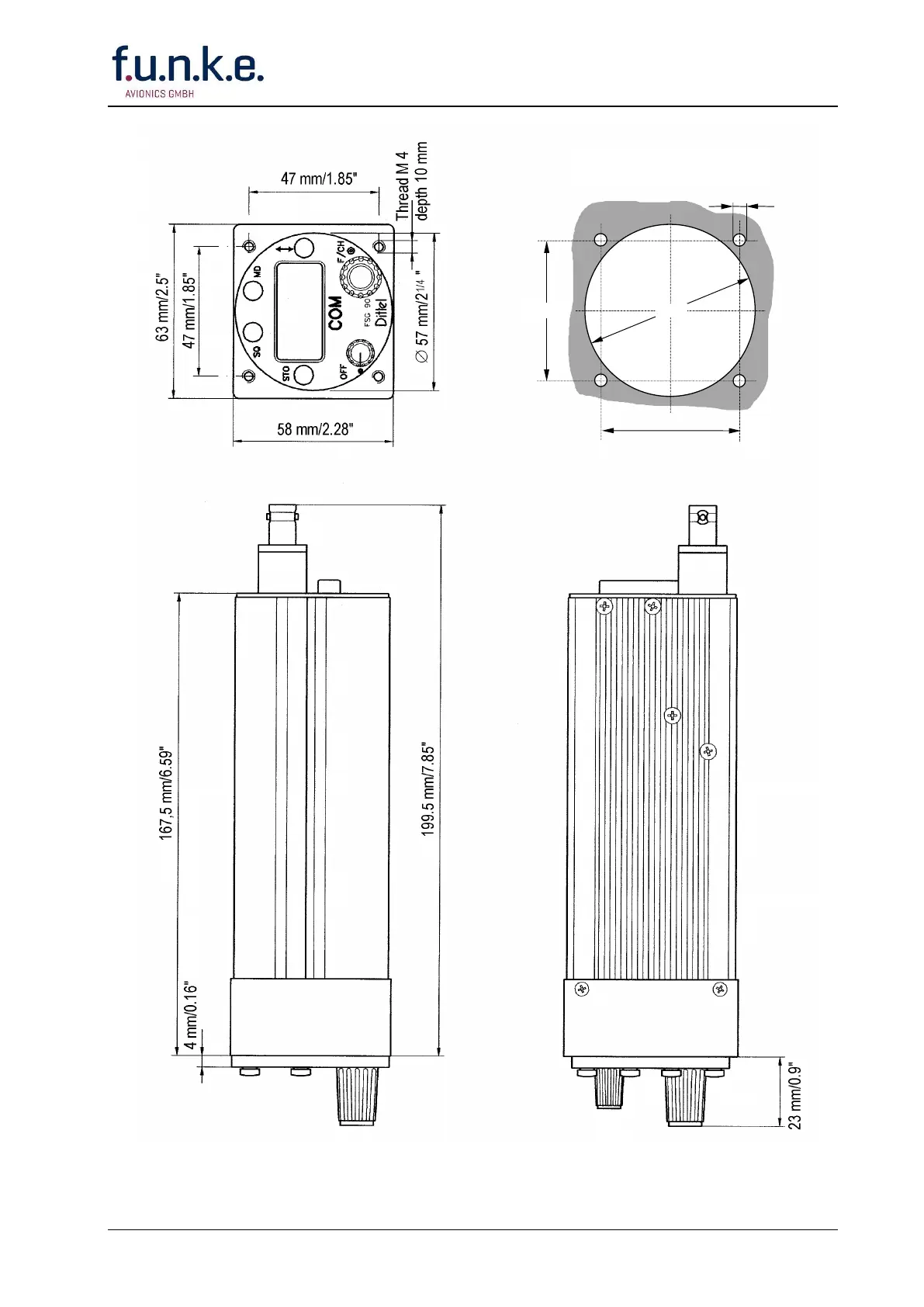

Fig. 3-4: FSG 90(X)
Dimensions
Installation Drawing

4.5

58
47

0.2
47

0.2
Cutout to be prepared or
Standard 2¼" panel opening
BACK-PANEL MOUNTING
