4.3 Frequency Display, 5-digit or 6-digit Liquid Crystal Display (LCD), two lines, can
be back-lit.
IMPORTANT!
 When the FSG 90 or FSG 90-H1 shows a 6-digit display, the radio is
operating in the combined 8.33/25 kHz mode.
 When the FSG 90 or FSG 90-H1 shows a 5-digit display, the radio is
operating in the '25 kHz only' mode.
 Frequency and channel name display complies with ICAO rules!
 The following displays are examples only!

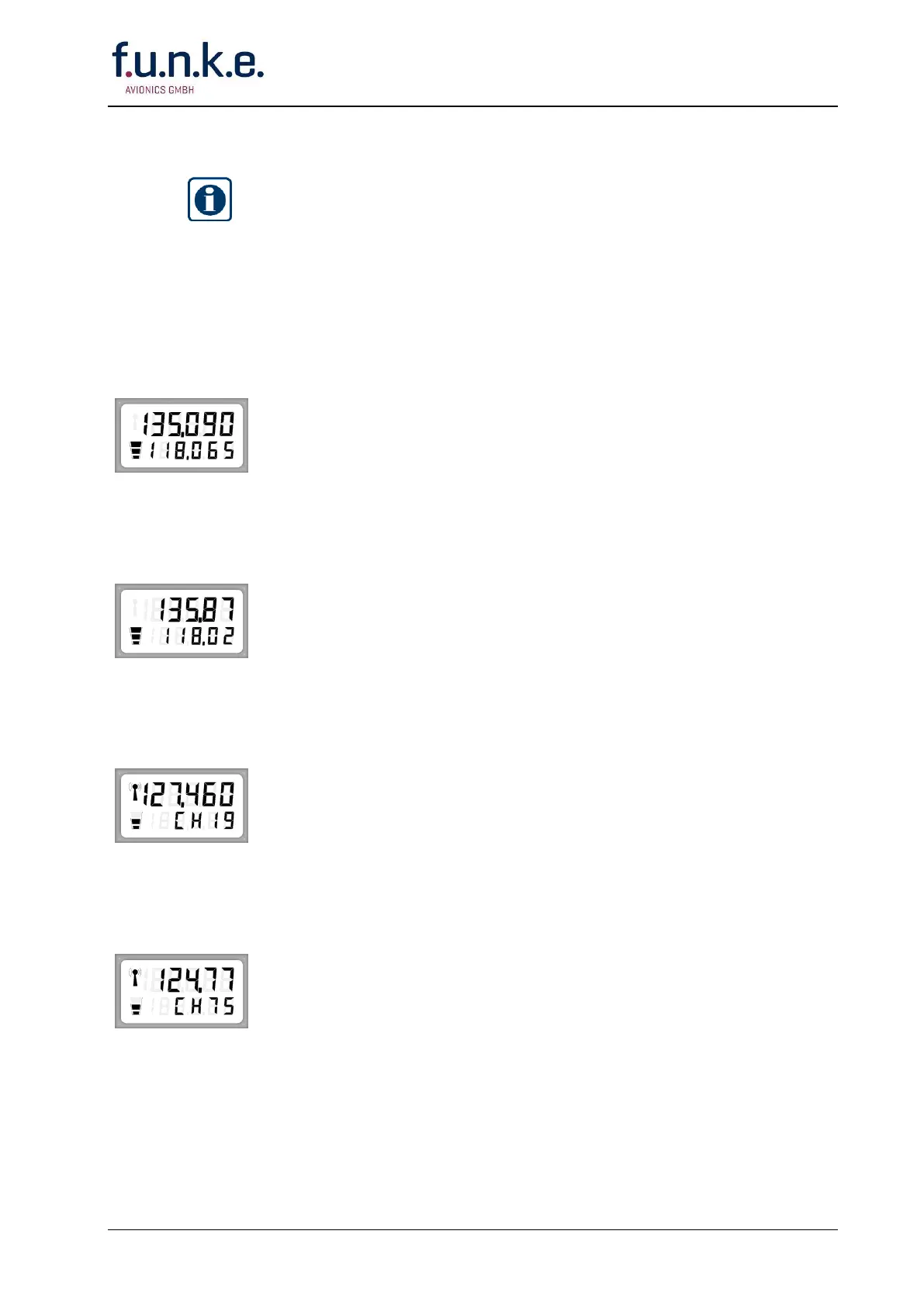

Transceiver operates in the 8.33/25 kHz mode (6-digit display)
Upper line: USE channel name (display 135.090 =
135.0916 MHz transmit and receive frequency)
Lower line: STBY channel name (display 118.065 = 118.0666 MHz
transmit and receive frequency)
Supply indicator: 3 segments: ≥ 12.7 Vdc, supply OK
TX indicator: OFF, radio receives.
Transceiver operates in the '25 kHz only' mode (5-digit display)
Upper line: USE frequency (display 135.87 = 135.875 MHz transmit
and receive frequency)
Lower line: STBY frequency (display 118.02 = 118.025 MHz
transmit and receive frequency)
Supply indicator: 3 segments: ≥ 12.7 Vdc, supply OK
TX indicator: OFF, radio receives.
Transceiver operates in the 8.33/25 kHz mode (6-digit display)
Upper line: USE channel name (display 127.460 = 127.4583 MHz
transmit and receive frequency)
Lower line: Channel memory number (19) associated with the above
USE channel name
Supply indicator: 2 segments: ≥ 12.0 Vdc, battery ½ charged
TX indicator: ON, radio transmits.
Transceiver operates in the '25 kHz only' mode (5-digit display)
Upper line: USE frequency (display 124.77 = 124.775 MHz transmit
and receive frequency)
Lower line: Channel memory number (75) associated with the above
USE frequency
Supply indicator: 2 segments: ≥ 12.0 Vdc, battery ½ charged
TX indicator: ON, radio transmits.
