Chapter 2 ─ Installation
Package Contents
The package contains the following:
Digital Video Recorder
Power Cord
User’s Manual (This Document)
RAS Software CD and User’s Manual
Infrared Remote Control
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals for the other items that make up
part of your system.

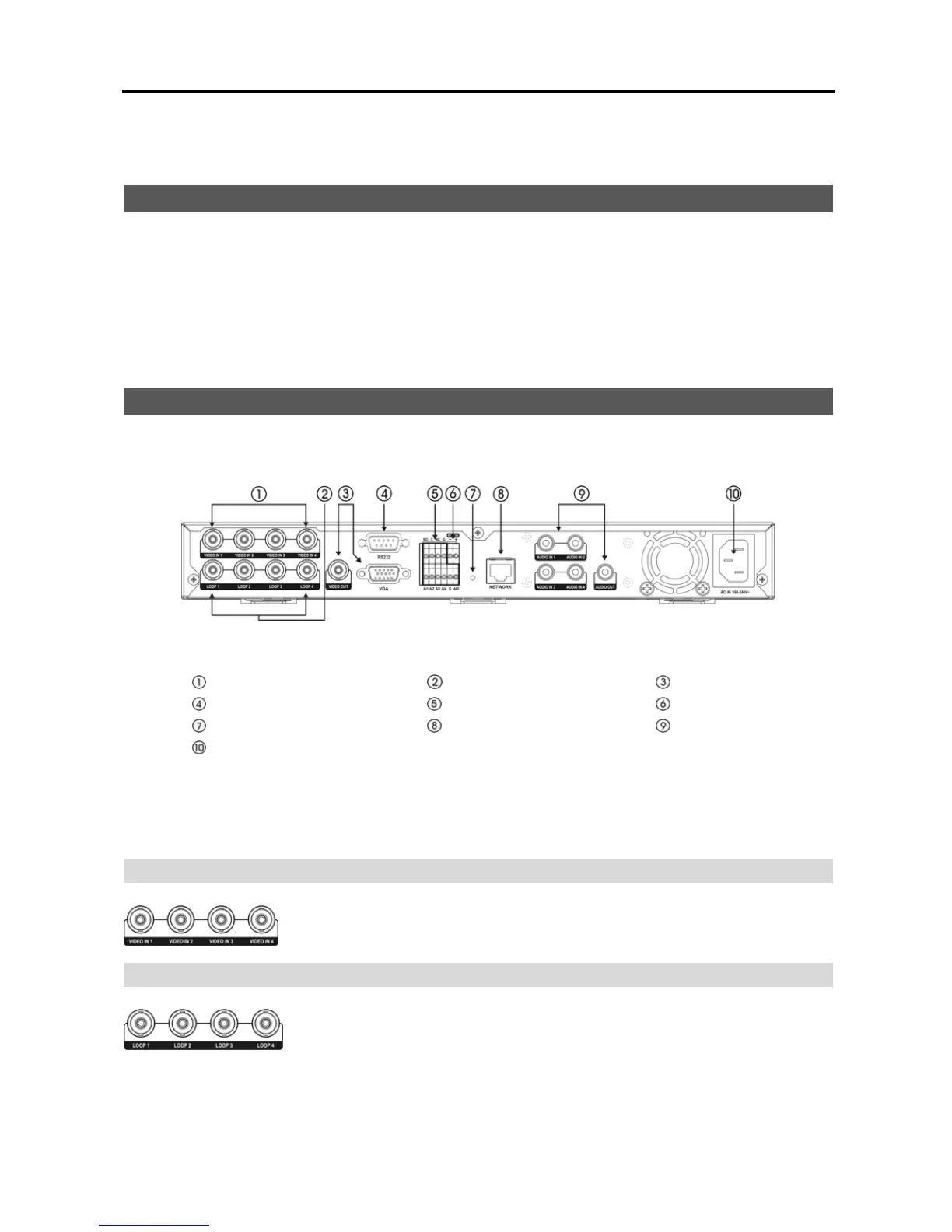

Figure 2 ─ DVR rear panel.
Video Input
Video Loop Through
Video Out
RS232 Port
Alarm Input/Output
RS485 Port
Factory Reset Switch
Network Port
Audio In/Out
Power Cord Connector
Your DVR can be used with either NTSC or PAL equipment.
NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and an NTSC
monitor.
Video Input
Video Loop Through
NOTE: The Loop BNC connectors are auto terminated. Do NOT connect a cable to the Loop BNC unless it is
connected to a terminated device because it will cause poor quality video.
Connect the coaxial cables from the video sources to the BNC Video In connectors.
If you would like to connect your video source to another device, you can use the Loop
BNC connectors.
