User’s Manual
28
Free Space – The icon
displays when the DVR is in the Recycle mode, and the percentage of available storage space
displays when the DVR is not in the Recycle mode.
Date/Time – The current date and time information displays.
User Name ─ The name of the current user logged in displays.
Camera No. ─ The camera number displays at the top-left corner of each camera screen.
Camera Title ─ The camera title displays at the top-left corner of each camera screen.
Record – The record related icons display on each camera screen.
Audio – The icon
displays on each camera screen for which the DVR can play live audio.
PTZ – The icon
displays on each PTZ camera screen.
Text-In – The text input strings display on the screen. You can adjust the Display Dwell time (sec.) for the text input
strings displayed on the screen.
Logo – The logo displays on the screen during playback.
You can adjust the transparency of the setup screens by highlighting Transparency and using the Left and Right
arrow buttons.
Highlight the Main Monitor tab, and the Main Monitor setup screen appears.
Highlight the VGA tab, and the VGA setup screen appears.

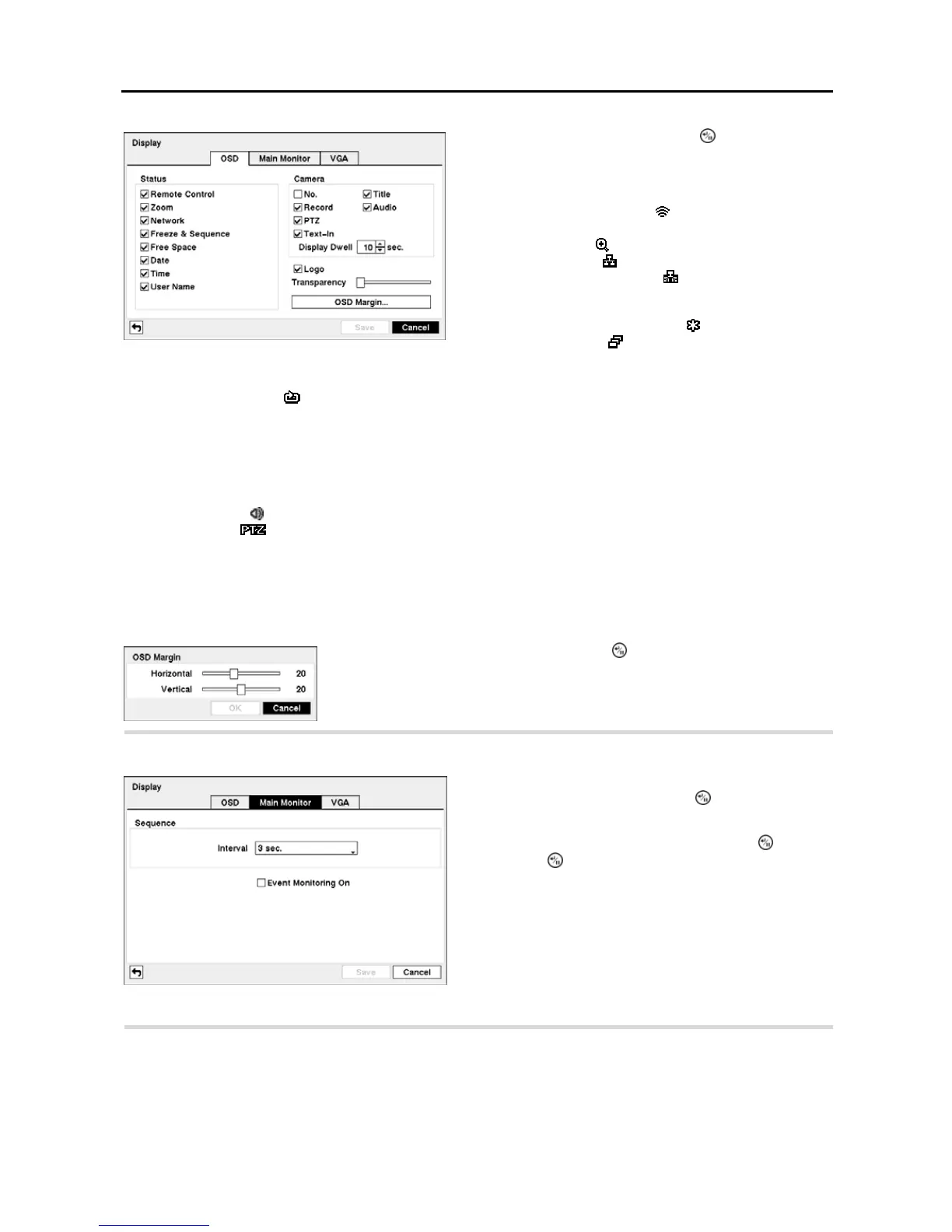

Figure 34 ─ Display OSD setup screen.
Highlighting an item and pressing the
button toggles that
item On and Off. When an item is On, there is a checkmark
in the box beside it. The following items can be turned On
or Off:
Remote Control – The icon
displays when the DVR can
be controlled by the infrared remote control.
Zoom – The icon
displays on the enlarged video.
Network – The icon
displays when the unit is connected to a
network via Ethernet. The icon
displays on each camera
when audio communication is available between the DVR and
a PC running RAS via Ethernet
.
Freeze & Sequence – The icon
displays while in the
Freeze mode, and the
displays while in the Sequence mode.
Highlighting OSD Margin… and pressing the button displays how OSD text will
be displayed on the monitor. You can adjust the horizontal and vertical margins
so that text and icons will not be hidden beyond the edges of the monitor.
Figure 35 ─ Main Monitor setup screen.
You can adjust the display dwell time by highlighting the
box beside Interval and pressing the
button. You can
select dwell intervals ranging from 1 second to 1 minute.
Highlight Event Monitoring On and press the button.
Pressing the
button toggles between On and Off. When
it is On, the DVR will display the camera associated with
the event when an event occurs.
