Falcon DVR - PTZ, Zoom, and Event Monitoring

4-Channel Digital Video Recorder
45
Login/Logout
Selecting (Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User
and enter the password to log into the system. Selecting
(Logout) in the Live Monitoring menu displays the Logout
screen asking you to confirm whether or not you want to log out the current user.
Zoom Mode
You can enlarge an area of the video by selecting Zoom from the Camera Menu in the Live Monitoring menu or pressing
the
Zoom button on the front panel. For a few seconds after selecting Zoom from the Camera Menu or pressing the
Zoom button, a rectangle displays on the screen. A rectangle shows the area that will be enlarged. You can move the
rectangle around using the arrow buttons. Pressing the (Enter) button in the Zoom mode enlarges the area in rectangle.
Exit the Zoom mode by selecting Zoom again from the Camera Menu or pressing the
Zoom button again. While in
the Zoom mode, the icon displays if Zoom is selected in the Display setup screen (OSD tab).
Event Monitoring
When an event occurs, the DVR will display the camera associated with the event if Event Monitoring On is selected
in the Display setup screen (Main Monitor tab).
Event monitoring lasts for the dwell time set for event recording. After the dwell time has elapsed, the monitor returns
to the previous screen unless another event has occurred. If you want to return to the live monitoring mode before the
dwell time has elapsed, press one of the camera buttons.
Covert Camera
If a camera is set up as Covert 1 in the Camera setup screen (Settings tab), that camera will not be displayed unless a
user with Covert Camera View authority logs into the system. However the camera title and status icons will be
displayed on the monitor.
If a camera is set up as Covert 2 in the Camera setup screen (Settings tab), that camera appears to be Off unless a user
with Covert Camera View authority logs into the system. The camera title will be grayed out and status icons will
not be displayed on the monitor.
NOTE: When a camera is set up as Covert 1, the DVR displays the camera title and status icons on the covert
video. When set up as Covert 2, the DVR displays only the camera title on the covert video.
If a user who has Covert Camera View authority logs into the system, the user can view video from cameras set to
Covert 1 or Covert 2 including the camera titles and status icons.
PTZ Mode
If a user who has PTZ Control authority logs into the system, the user can control PTZ cameras. The DVR will control
cameras with Pan, Tilt and Zoom capabilities. Select PTZ from the Camera Menu in the Live Monitoring menu or
press and hold the
PTZ button on the front panel for three seconds or longer to display the PTZ camera menu and enter
the PTZ mode. Select PTZ again from the Camera Menu or press and hold the PTZ button for three seconds or longer
again to exit the PTZ mode.

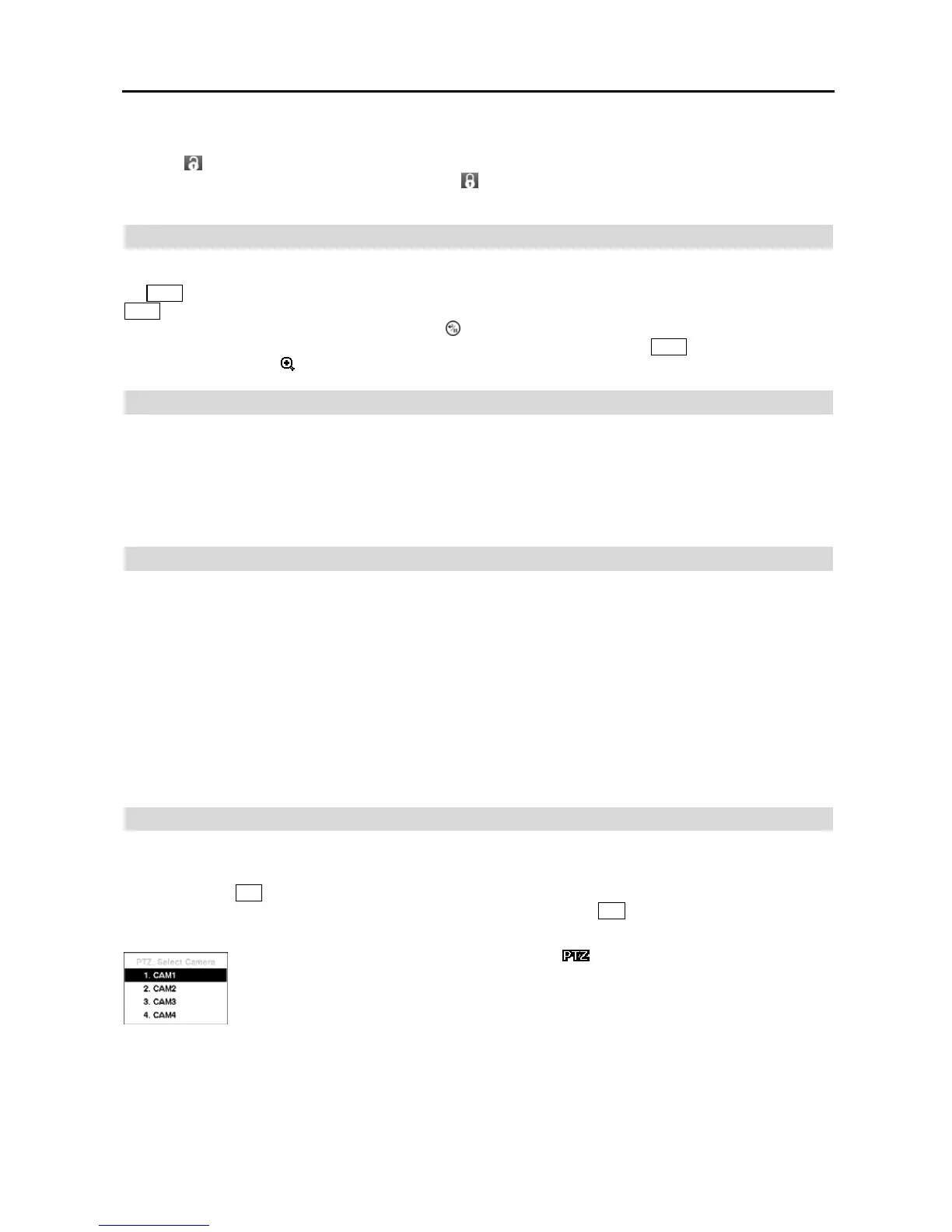

Figure 60 ─ PTZ Select Camera menu.
Select the PTZ camera you wish to control. The icon
flickers on the PTZ camera screen. You
can control the camera using front panel control buttons, by setting up presets or by selecting the
expanded PTZ features. To use the front panel buttons, press the Left and Right arrow buttons to
pan left and right. Press the Up and Down arrow buttons to tilt the camera up and down. Press the
camera button 1 to zoom in, and press the button 2 to zoom out. You can use the button 3 and button
4 to focus the image.
