3.
Burner Lock-Out Reset Switch
Resets burner for further lighting attempts when burner lockout indicator is illuminated.
4.
Filtration Pump Switch (G3840F only)
Energises filtration pump when burner switch is in OFF(O) position.
5.
Temperature Safety Limiter Reset Button
Remove cap, green push button.
G3840 and G3840F Controller Diagnostic
Indicators
(On printed circuit board of controller, behind control panel)
Green LED ‘ON’ indicates heat demand. Green LED ‘OFF’ indicates no heat demand.
Red LED flashes if temperature probe is either short or open circuited.
Red LED is permanently ‘ON’ to indicate system is OK.
Set point is +/-7⁰C of mid-set point.
2.5 PRE-COMMISSIONING CHECK
a) Clean out pan thoroughly using hot water and detergent. Rinse out and dry thoroughly.
Note - For further detail with regard to cleaning, refer to
Section 8.
b) Ensure drain valve is closed. Fill pan with clean cooking oil to -MIN- (maximum cold fill
mark) indicated on fryplate (See Figure 7).
Note: MAX refers to maximum hot fill mark.
c) With gas supply still shut off, turn on electrical mains supply.
d) Open door and press temperature limit thermostat reset button (green), refer to Section
2.6. Set burner switch to Position 'I' (ON position).
e) Turn control knob to desired temperature (140⁰C) and heat demand indicator will illuminate
(Figure 2,
item 4).
f) Fryer ignition sequence will commence and spark may be heard before unit locks out.
Note: Ignition system will attempt a second sequence, 14 seconds after completion of first
try if no flame is detected during first attempt. (Unit will only lock out after
2nd attempt).
g) Neon next to burner switch inside door will illuminate to indicate lockout has occurred and
that

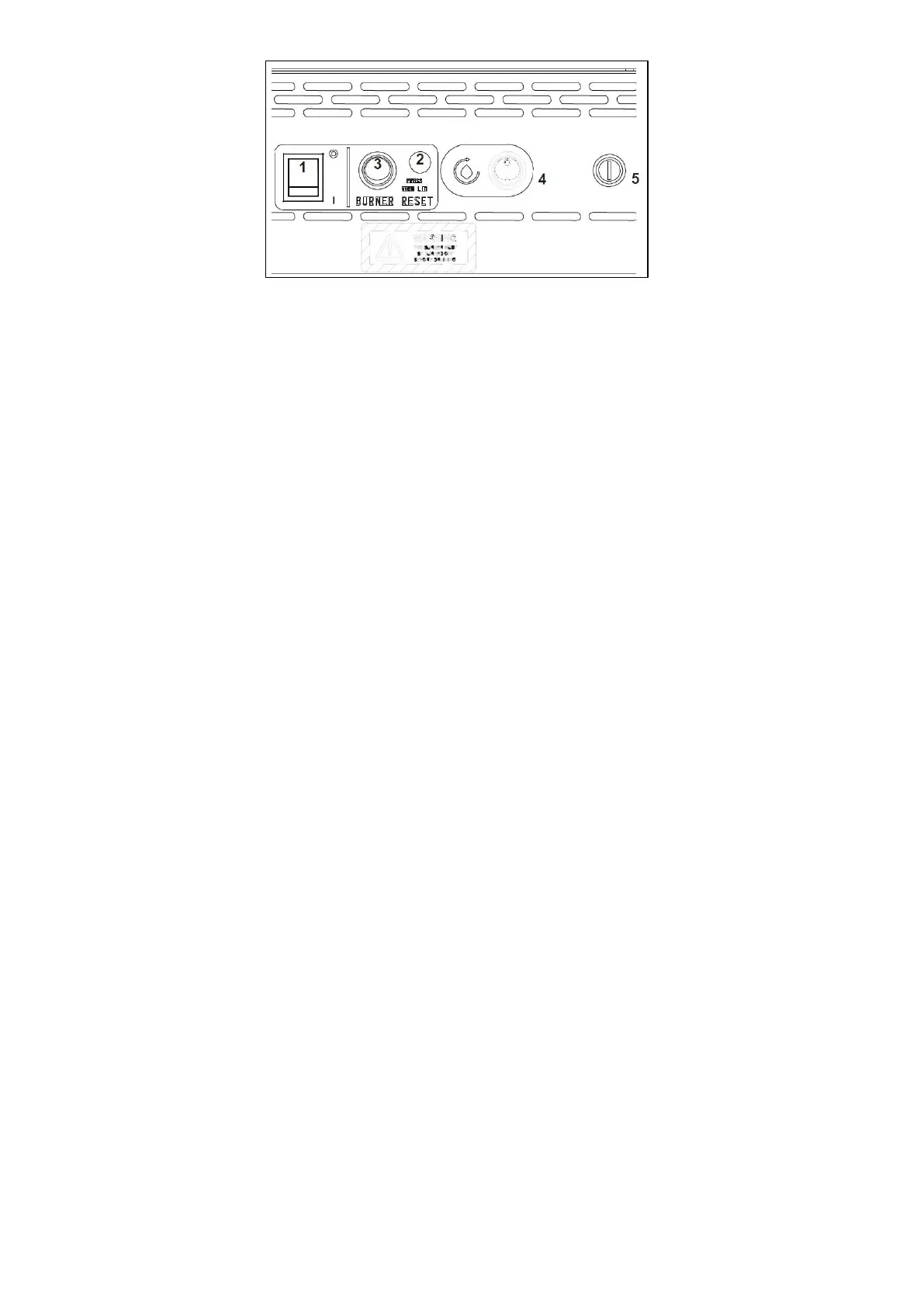

no burner flame is present. G3840 / G3840F Additional controls - Item 2 on Figure 4.
h) Turn gas supply on.
i) Press lockout reset switch. See Figure 4 (Lock out indicator will extinguish).
j) Burner will ignite and heat indicator will illuminate to
signify that burner is on.
