4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCEXEF 250 - Rev01 / 2020
79
4
1
321
B
1
2
2
3
A

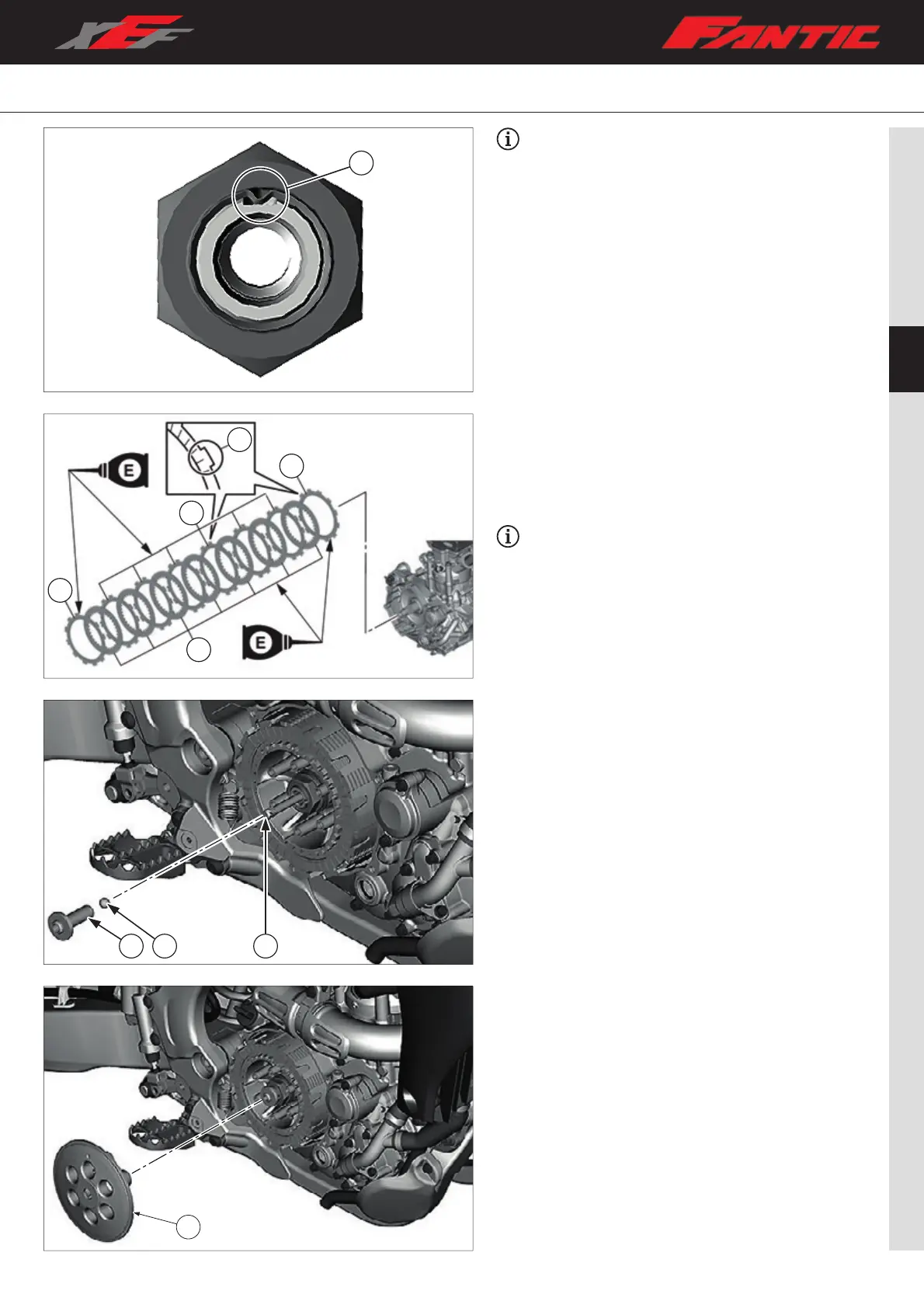

Lock the clutch hub nut at notch “A” of the primary
shaft.
– Install friction discs and clutch discs alternately on the
clutch hub, starting and ending with a friction disc.
– Install friction discs in this order:
1. friction disc 1 (identification colour “B”: black) x1;
2. friction disc 2 (identification colour “B”: orange) x6;
3. friction disc 1 (identification colour “B”: black) x1.
Apply engine oil to the friction and clutch discs.
– Install thrust rod “1”, the ball “2” and thrust bearing “3”;
– Install the thrust plate “1”;
