7

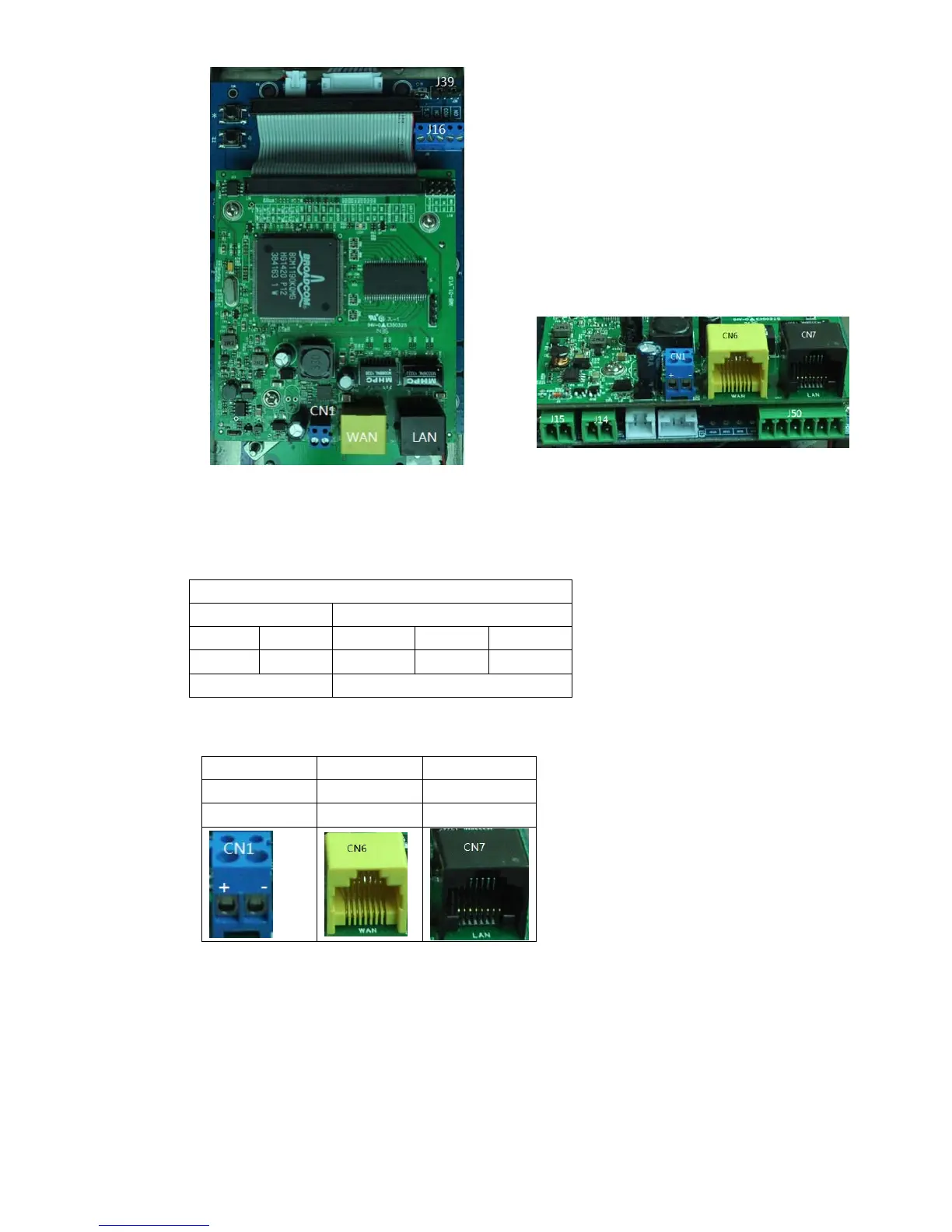

I21/I21T connection
(1) Electric LOCK and indoor switch connection
(2) Power supply and Network connection
J16
Indoor switch Electric Lock Driver
1 2 3 4 5
S_IN S_OUT NC COM NO
Connect to the switch
Normally open, normally close port
CN1 CN6 CN7
Power supply WAN port LAN port
12V DC WAN LAN
CN7
