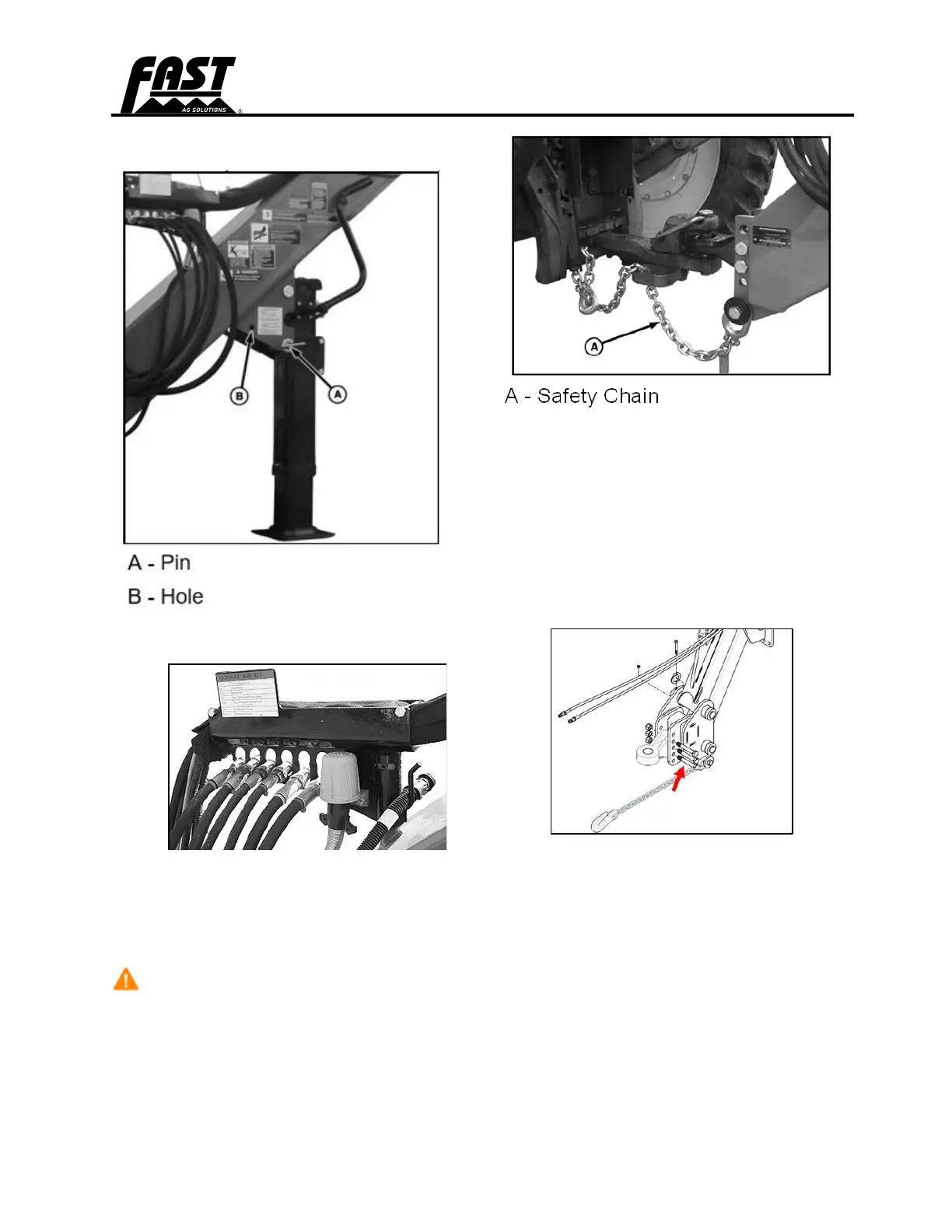

ATTACHING and DETACHING Liquid Fertilizer Applicator A10 / A13 / A18 / A24 Page 51
Detach Machine from Tractor
1. Secure jack as shown using pin (A).
Figure 2: Wiring Harness and Hoses in
Storage Position
2. Disconnect wiring harness and place
in storage position.
WARNING: Prevent serious injury or
death. Relieve hydraulic system
pressure before disconnecting
hydraulic hoses.
3. Disconnect hydraulic hoses and
place them in their storage position.
4. Disconnect safety chain (A).
Adjust Hitch Height
Verify machine is parked safely before
performing hitch adjustment to avoid injury or
death caused by uncontrolled machine
movement.
1. Remove and retain hex bolts and
nuts.
2. Lower hitch assembly and retain
using an appropriately sized stand or
strap.
3. Reinstall the hex bolts and nuts with
the hitch at the desired position.
4. Tighten the hex bolts to 873 N-m (644
ft-lbs.)
To Next Page
