FILLING THE TANK Liquid Fertilizer Applicator A10 / A13 / A18 / A24 Page 64

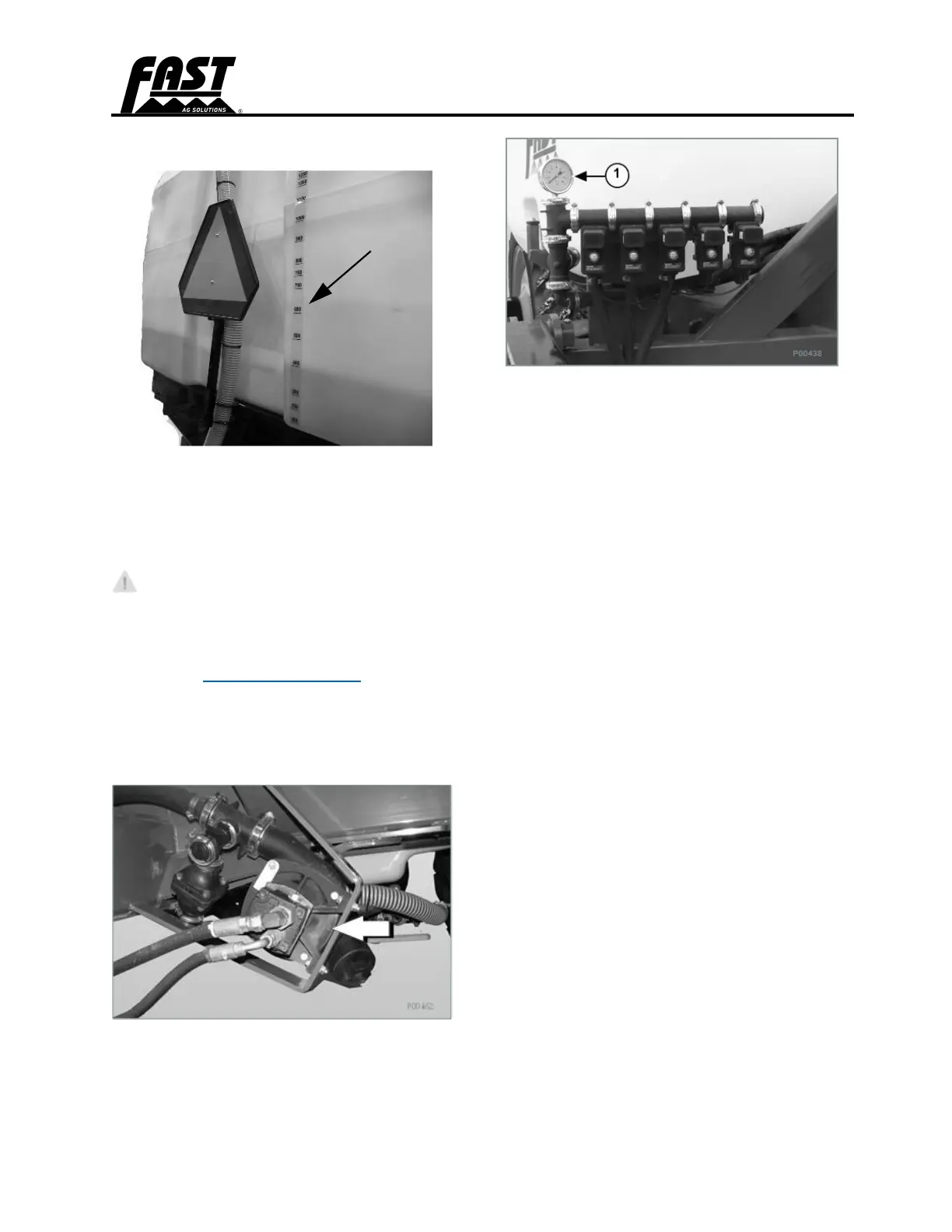

Use Tank Fill Marker
A. Fill Marker
The back end of the Product Tank has a fill
marker decal (A) on it to assist the Operator
when filling the tank.
NOTE: The tank must be level for
accurate volume readings. Use the
hydraulic hitch option to raise or
lower the front end of the trailer or
refer to Adjust Hitch Height for further
adjustment.
Pump & Pressure
The Metering Pump (product pump, main
pump) is located on the left side in front of
the trailer’s tire.
The Liquid System Pressure Gauge is in
front of the main tank on the right side (Item
1). The gauge monitors pressure in the liquid
circuit providing flow to the injectors. It is
normally used to monitor pressure in
chemical/fertilizer circuits when setting the
system for a specific application rate.
To Next Page
