TRANSPORTING Liquid Fertilizer Applicator A10 / A13 / A18 / A24 Page 52
TRANSPORTING
Following Safe Transport
Procedures

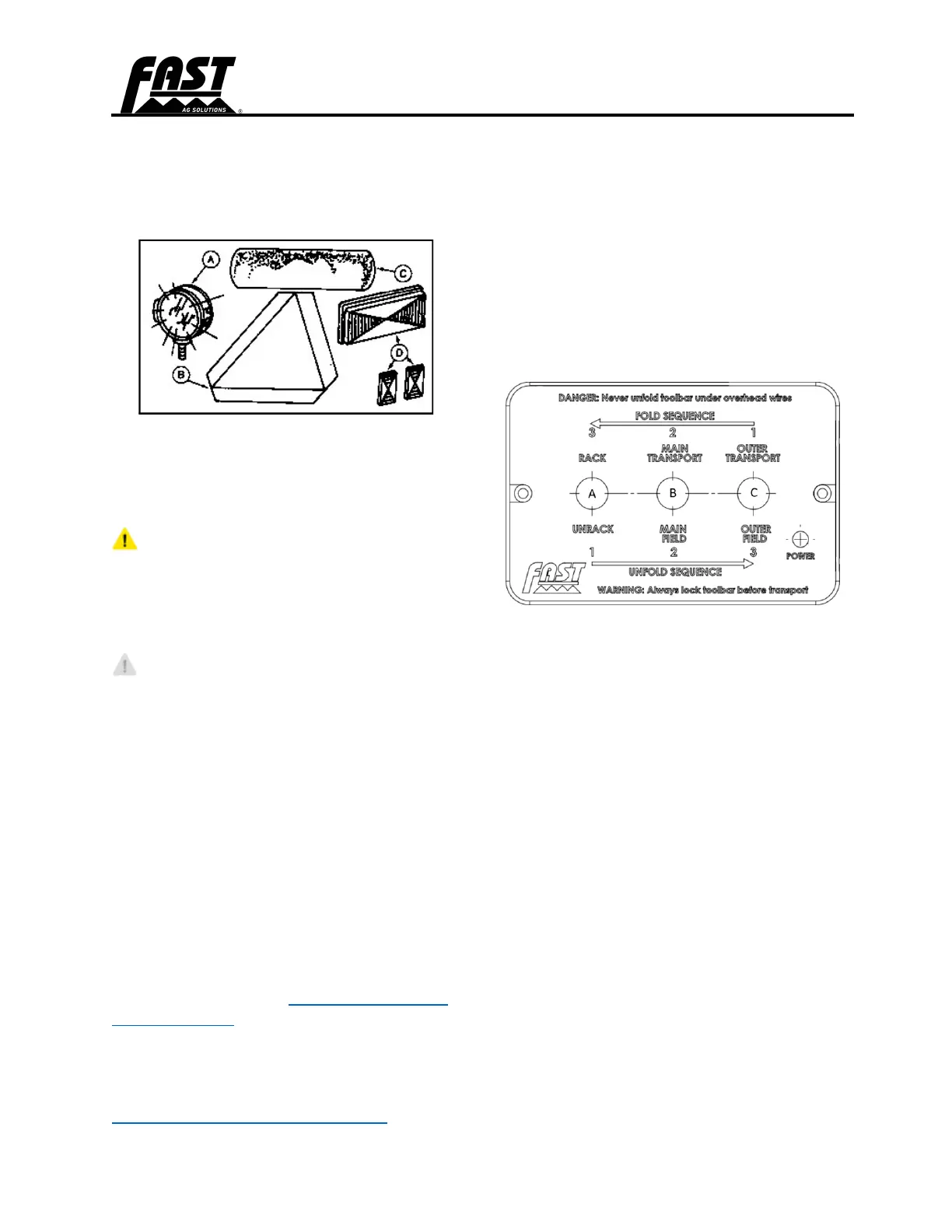

A. Lights
B. SMV Emblem
C. Reflector Tape
D. Reflectors
CAUTION: When transporting the
machine on a road or highway at night
or during the day, use warning lights
and devices for adequate warning to
operators of other vehicles.
IMPORTANT: Transport Applicator
only with tank EMPTY to prevent
Applicator damage.
Check local governmental regulations.
Various safety devices are available from
your Fast Ag Solutions dealer. Keep safety
items in good condition. Replace missing or
damaged items.
Upward force on hitch may cause instability
when transporting. Add BALLAST to tractor
as required.
BEWARE of overhead wires and narrow
gates. KNOW the transport height and width
of your machine. (See Machine Dimensions
& Specifications.)
Travel at a reasonable and safe speed;
REDUCE speed over rough or uneven
terrain, slopes, and when turning. See
Observe Maximum Transport Speed.
BE SURE SMV emblem, reflectors, and
warning lights are clean, visible, and in good
condition.
BE SURE your safety chain has a strength
rating greater than the gross weight of the
machine.
Preparing the Machine for
Transport
Fold Toolbar for Transport
A. Down Pressure Toggle Switch
B. Main Wings Toggle Switch
C. Flip Wings Toggle Switch
1. Pull SCV I backward to raise toolbar
and kick wings up.
2. Push SCV II forward in continuous
mode to supply oil to the fold valve
functions.
3. Hold flip wings toggle switch (C) in
the transport position (Outer
Transport) until flip wings are fully
folded (if equipped.)
4. Move and hold Main Wings switch (B)
to transport position until the Main
Wings are fully vertical.
5. Hold down the Down Pressure switch
(A) until the Main Wings have
reached their rest position.
6. Disengage SCV II and install
transport cylinder locks on both main
lift cylinders.
