TRANSPORTING Liquid Fertilizer Applicator A10 / A13 / A18 / A24 Page 54
Caution for All Machines
CAUTION: When transporting the
machine on a smooth surface road, do
not exceed the maximum transport
speed of 32 km/h (20 MPH). Reduce
speed considerably when traveling
over rough ground.
Reduce speed when turning. Do not
uncouple tractor brake pedals and apply
individually in an attempt to make a tighter
turn.
Serious injury or death can result from
contact with electric lines. Use care when
moving or operating this machine near
electric lines to avoid contact. Know
transport height and width of machine.
Check local regulations before transporting.
(See Machine Dimensions & Specifications
for transport height and width of machine.)
Transport with wings fully folded. Never raise
or lower the center section or wings when
moving. After folding, ALWAYS place the fold
valve (SCV II) in the neutral position for
transport.
If wing-fold cylinders are removed or
damaged, chain wings together to prevent
injury or death caused by accidental falling of
wings on you or others.
Unfolding/Extending the Toolbar
WARNING: Prevent serious injury or
death. The machine coming near or
contacting power lines can cause
electrocution. Electrocution can
occur without contact. Fully lower
wings before moving or transporting.

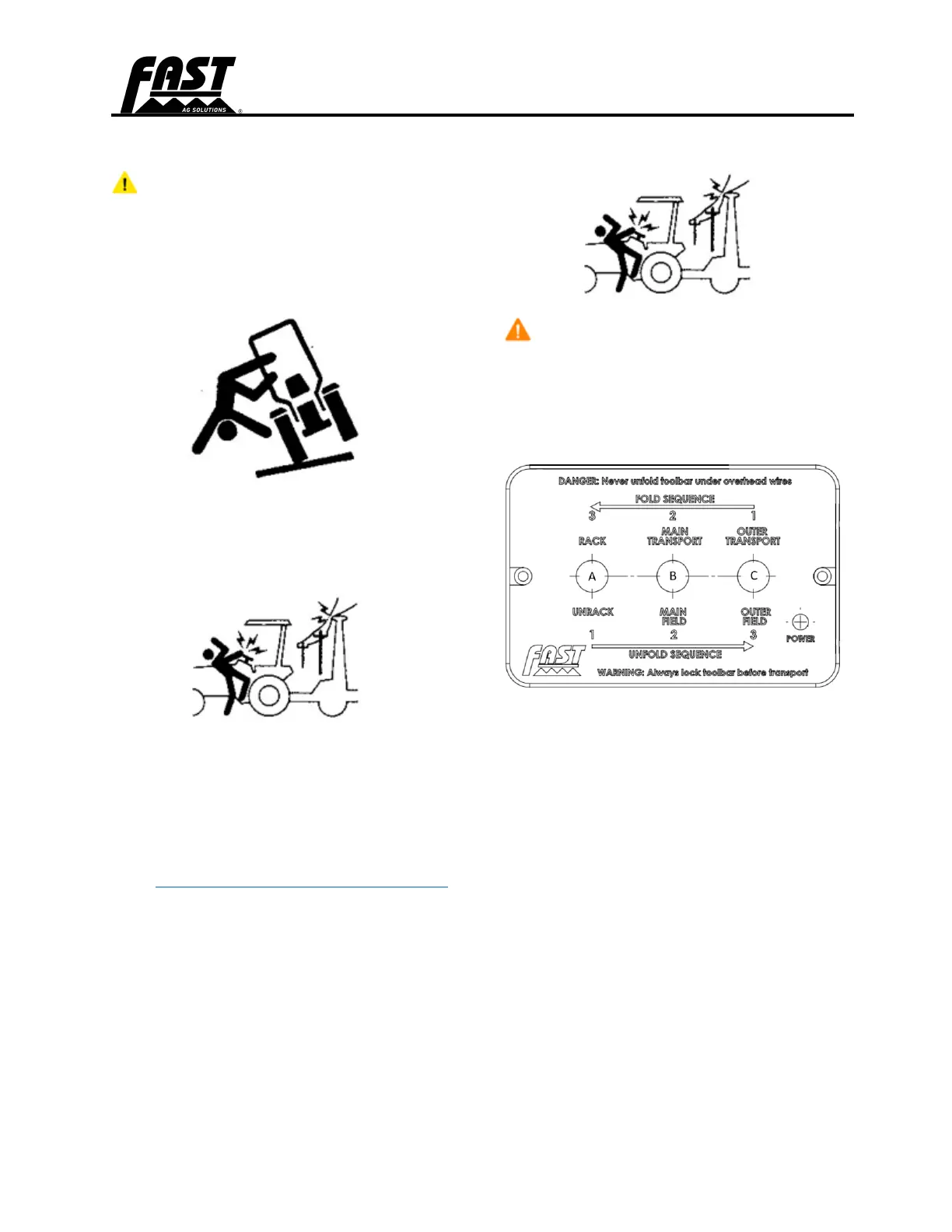

A. Down Pressure Toggle Switch
B. Main Wing Toggle Switch
C. Flip Wings Toggle Switch
1. Pull SCV I backward to raise the
center section and inner wings.
2. Verify tool bar is fully raised.
3. Remove and store the cylinder locks
from the main lift cylinders.
4. Push SCV II forward to detent to
supply continuous oil flow to the fold
valve functions.
5. Hold the Down Pressure switch (A) in
the field position (UNRACK) until the
Main Wings are fully vertical.
6. Hold the Main Wings switch (B) in its
field position while the wings are
unfolded. Wings will be laterally in-
line with the center section when fully
unfolded.
To Next Page
