HYDRAULIC FLOW Liquid Fertilizer Applicator A10 / A13 / A18 / A24 Page 58

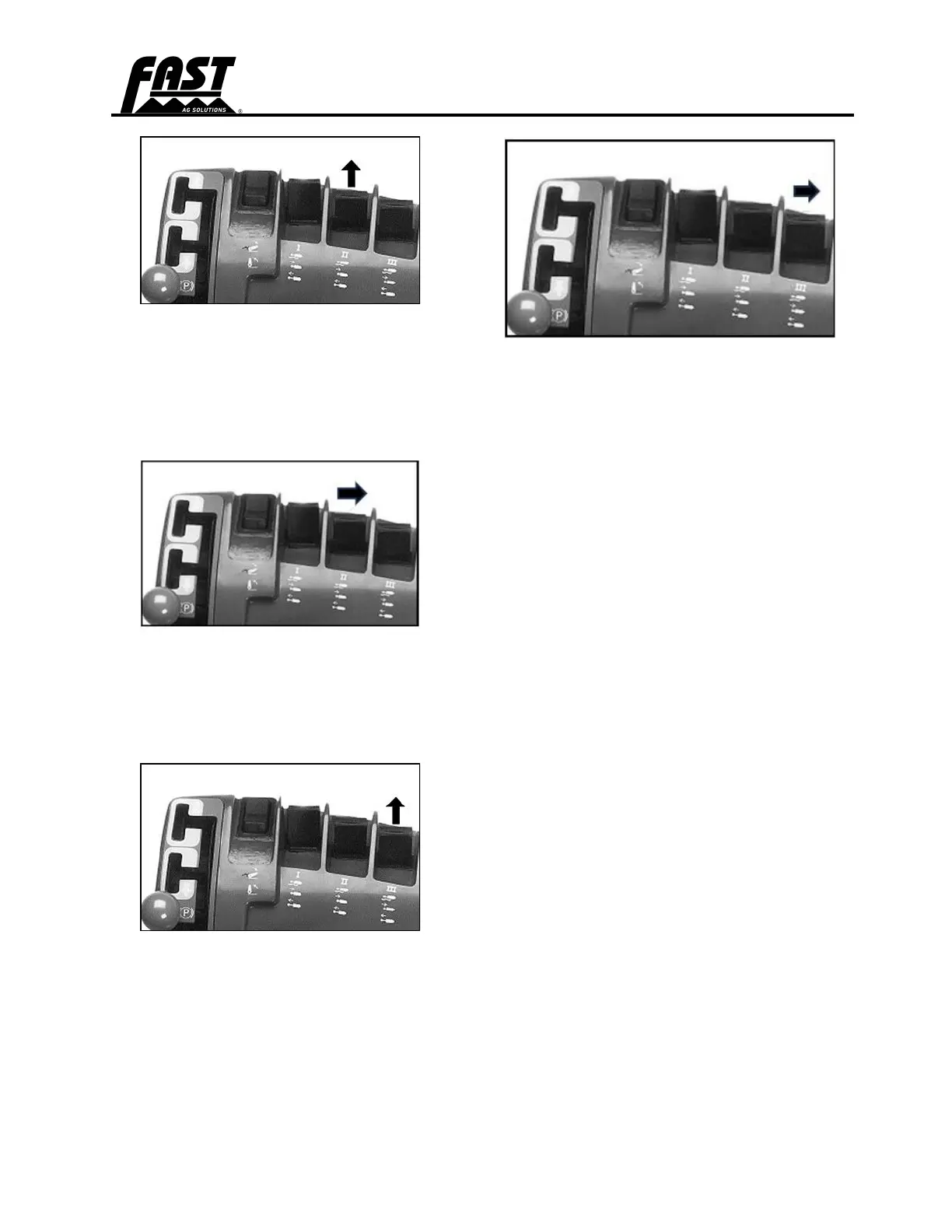

Figure 9: SCV II Pushed Forward
When the tractor’s SCV II is pushed forward,
the following functions are enabled:
1. Supplies hydraulic oil flow to operate
implement folding functions.
Figure 10: SCV II in Float
When the tractor’s SCV II is in float position,
the following functions are enabled:
1. Turns off hydraulic block pressure.
Figure 11: SCV III Pushed Forward
When the tractor’s SCV III is pushed forward,
the following functions are enabled:
1. Engages product pump for applying.
Figure 12: SCV III in Float
When the tractor’s SCV III is in float position,
the following functions are enabled:
1. Disengages product pump for
transporting.
