5.2 Mounting of the retaining bracket
The retaining bracket is suitable for wall and ceiling mounting.
Ø4,5 mm (1,77 inch) Ø4,5 mm (1,77 inch)Ø8,0 mm (3,14 inch)
Ø4,5 mm (1,77 inch)
54,0 mm (21,25 inch)
38,0 mm (14,96 inch)
19,0 mm (7,48 inch)
100,0 mm (39,37 inch)
44,0 mm (17,32 inch)

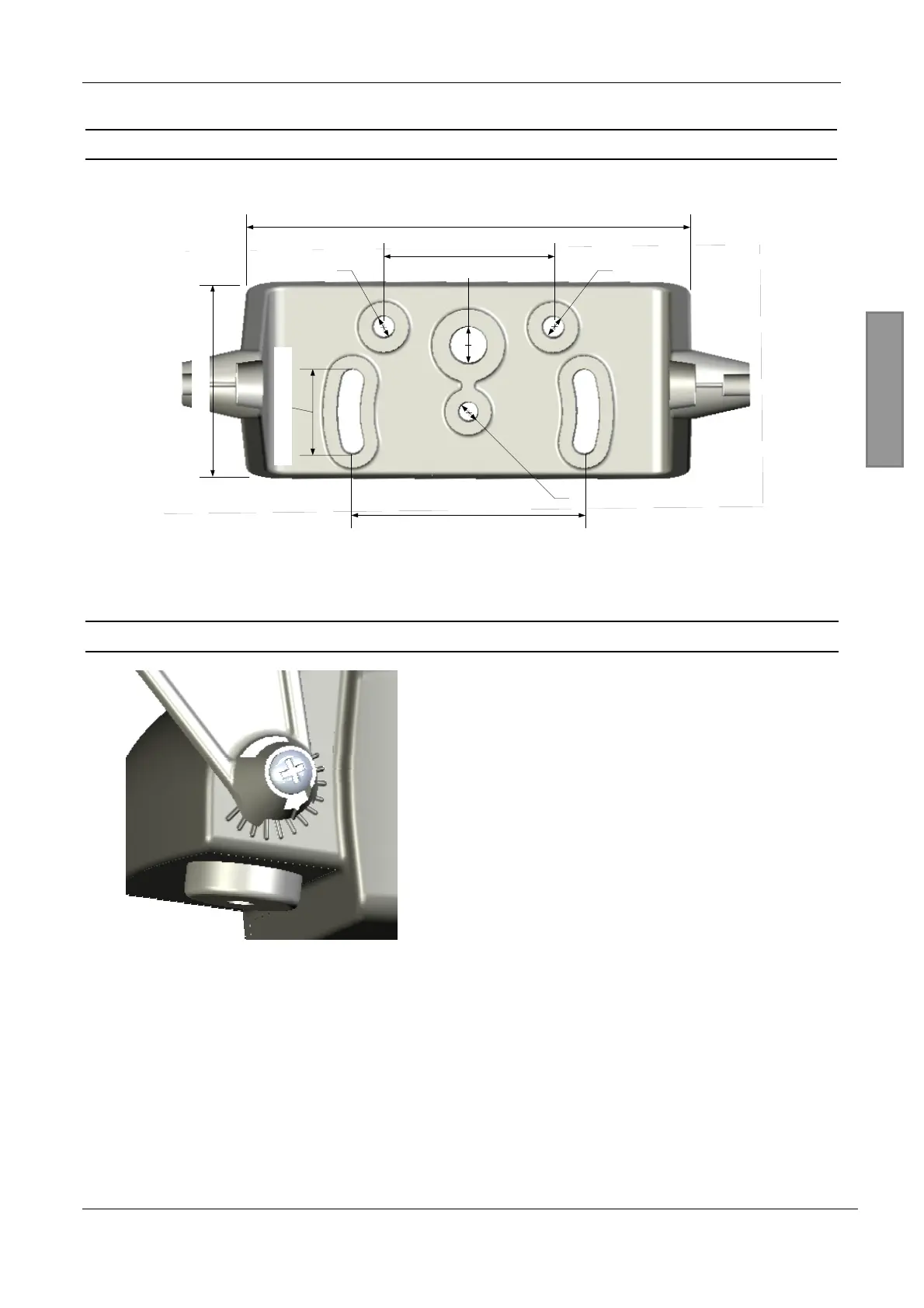

Fig. 1: Retaining bracket
5.3 Mounting the motion detector case
Fig. 2: Fixing bolt and angle spacing
After mounting the retaining bracket, the motion
detector case must be fixed at the installation
angle with the enclosed bolts.
) The angle scale, in 15° divisions, marked on
the case of the motion detector helps with precise
alignment of the device. The maximum angle is
180°.
