TST
Assembly instructions
FUZ2 -A/-B/-C/-CX/-G/-L
FEIG ELECTRONIC GmbH
Page 37 of 96
TST_FUZ2-A-B-C-CX-G-
L_Montageanleitung_EN_22.docx
6.3 Motor and brake
Connect the shielding of the motor cable to the EMC bracket (for steel housings)!
Connect the shielding of the motor cable to the PE terminal.
For steel housings, also make direct contact between the shielding and the EMC bracket.
To do this, remove a piece of the insulation of the motor cable and fix the shielding with the
clamp on the EMC bracket.

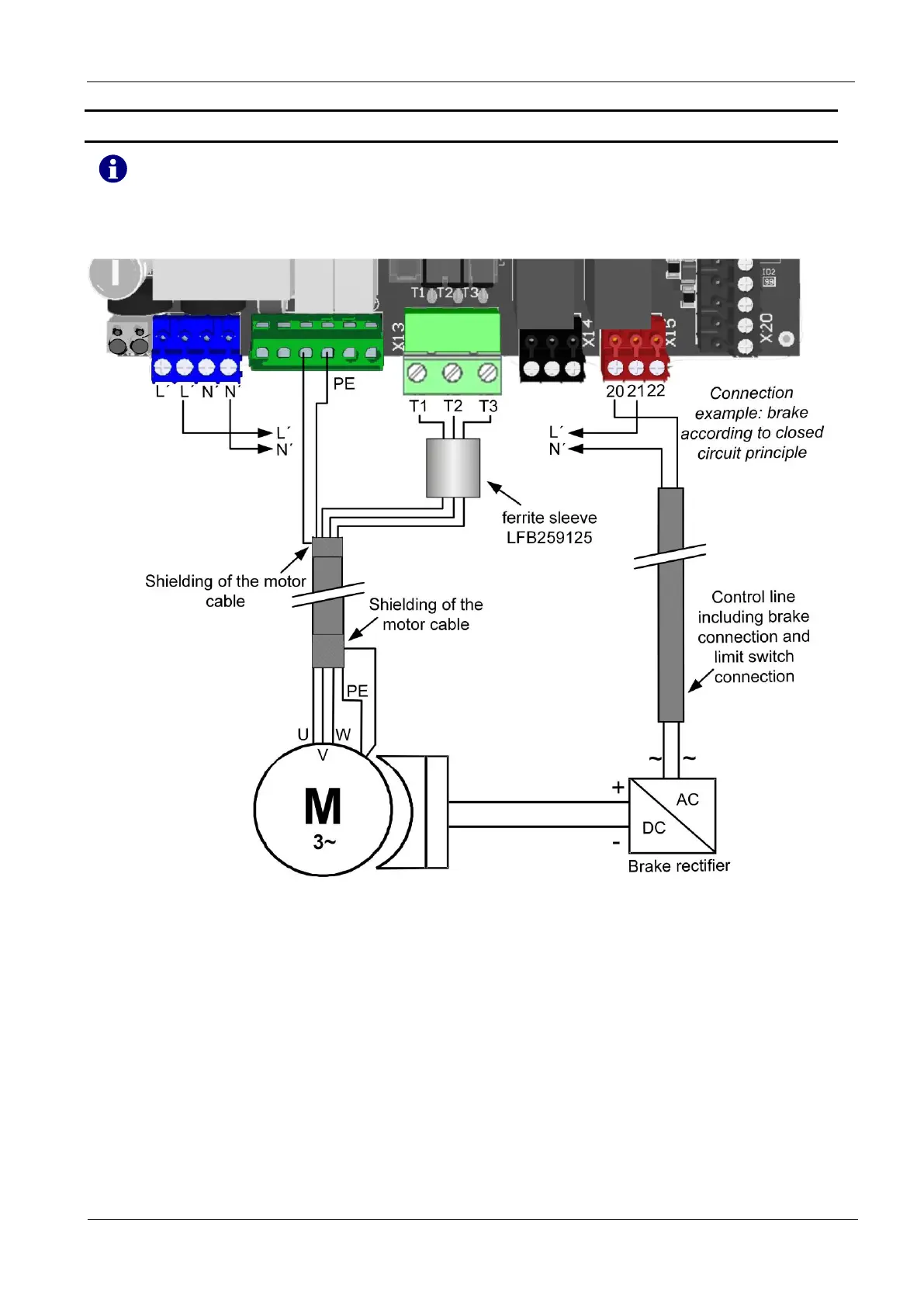

Figure 17: Motor connection
