6.11 Overview of outputs
K1 Com
K1 NO
K1 NC
Door is
OPEN
K2 Com K2 NO
K2 NC
Door is
CLOSE
L
N
L´
N´ N´
L´
CEE plug 3
poles,blue
PE
N
L
Fuse 16A /
K- Type
M
3~
T
1
T
2
T
3
U
V
W
PE
PE
10 11 12
20 21 22

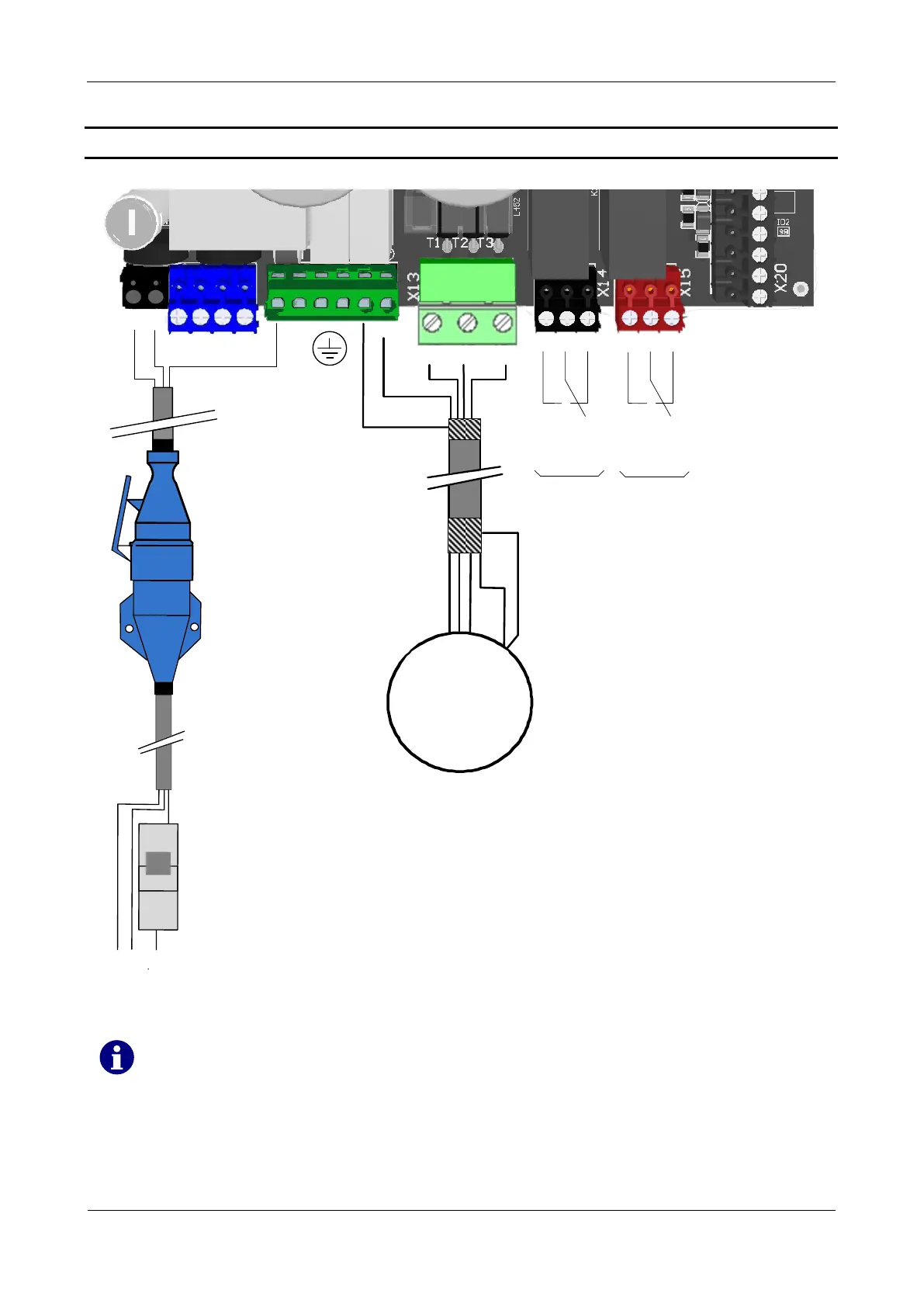

Figure 32: Overview of outputs
Contrary to the mentioned standard settings, the relay function is selectable.
