Assembly instructions
TST
FEIG ELECTRONIC GmbH
Page
50
of
96
TST_FUZ2-A-B-C-
CX
-G-L_Montageanleitung_EN_22.docx
6.10

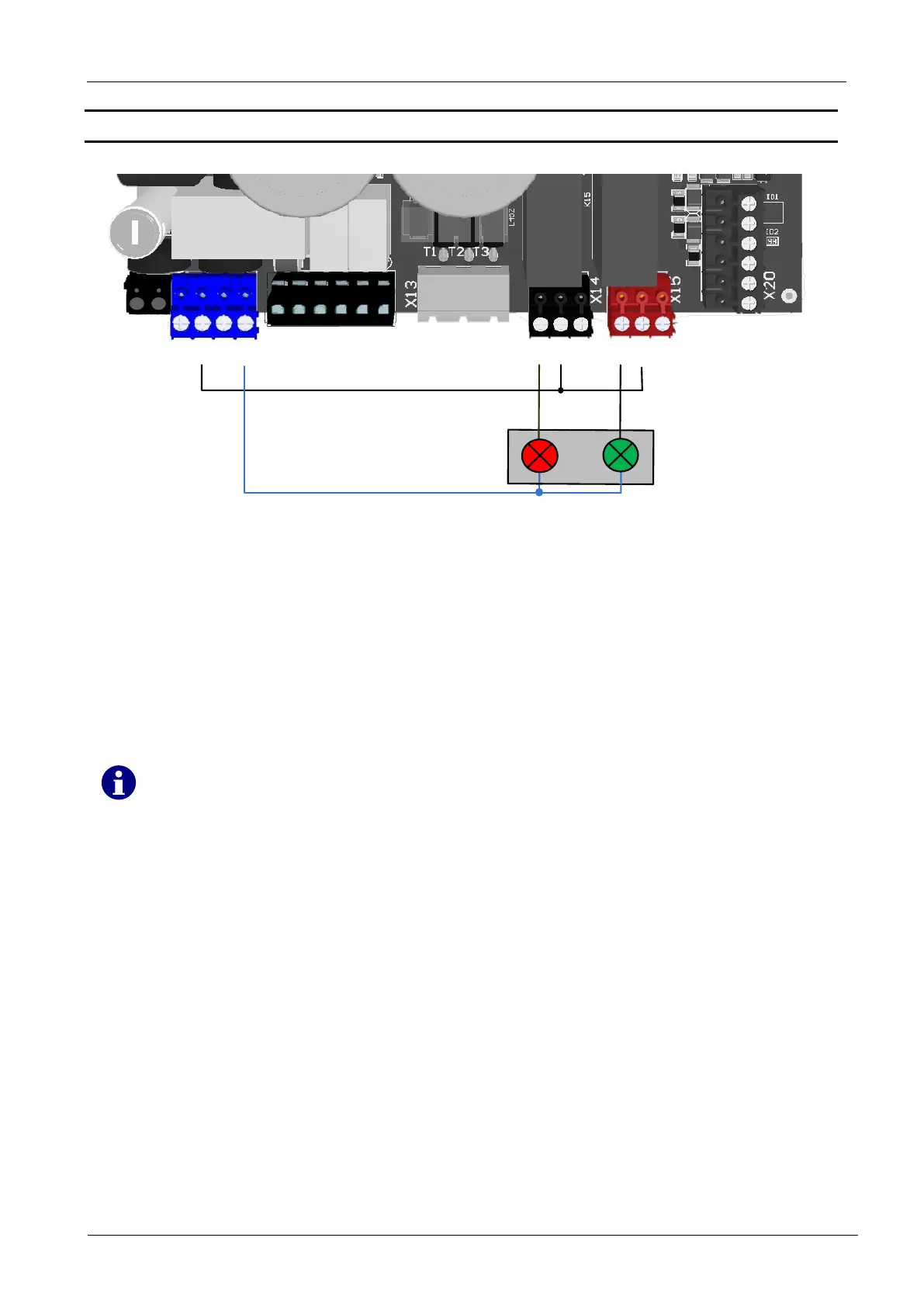

Traffic light connection
Flashing red
traffic light
:
flashing during
gate travel and
during
clearance time
P.
701
=
1253
Constant
green traffic
light
:
relay active in
position Gate
OPEN
P
.
702
=
1210
L´
L´
N´
N´
10
11
12
20
21
22
Jumper
blue
Figure
31
: Traffic
light connection
When a motor brake
is being used, relay
K2 is already oc
cupied and it can not
be
used to control
a traffic light.
49
51
Table of Contents
Notes
4
General Information about this Document
5
Table of Contents
6
Contents
6
General Description and Intended Use
9
Intended Use
10
Incorrect Use
10
Target Group
11
Personnel Qualification
11
Duty of Care of the Operating Company
12
Safety Instructions
13
Safety Functions in Accordance with en 12453:2017
14
Connection Example Testing
14
Parametrization
14
Installation of the Controller
15
Version Without Housing
16
Dimensions of the Drillings in the Mounting Frame
17
Required Free Space in Plastic and Steel Enclosure
18
Mounting the Control Electronics with Mounting Holes
20
Housing Variants
21
Housing Variant 1 / Small Housing
21
Installation Position of the Cover
21
Additional Heat Sink for Small Housing
22
Housing Variant 2 / Large Housing
25
Variants in Steel or Stainless Steel Housings
26
300 X 400 MM
26
400 X 600 MM
27
600 X 600 MM
28
Hygiene Housing Variant
29
Mount the Board Variant in a Steel Housing
30
Electrical Connection
34
Power Supply Voltage Without Main Switch
35
Power Supply Voltage with Main Switch
36
Motor and Brake
37
Safety Edge on the Integrated Evaluation
39
Optical Safety Edge
39
Electrical Resistance Safety Edge
40
Safety Edge at the 2Nd Integrated Evaluation (Input 10)
41
Optical Safety Edge
41
Electrical Resistance Safety Edge
42
Digital Input
42
Light Curtain TST LGB
43
Installation of the TST LGB
43
Connection of the TST LGB
44
Limit Switch Connection
45
Absolute Encoder TST PE or TST PE FSB with WICAB System
45
Absolute Encoder TST PD
46
Absolute Encoder des
47
Mechanical Limit Switches
48
Photo Eye
49
External Triggering Devices
49
Traffic Light Connection
50
Overview of Outputs
51
Overview of Inputs
52
Optional Plug-In and Expansion Cards
53
Wireless Receiver TST SFFE
53
Induction Loop Detector TST SUVEK
54
Induction Loop Detector VEK MNST1/2/3/4
55
Safety Edge Monitor TST SURA
56
Expansion Card Rfuxk
57
Interface Card TST Rfuxfcom
58
Auxiliary Relay TST SRA
59
Expansion Board TST Rfuxio-B/-E
60
LCD Text Display
61
General Operating Instructions to Set Parameters
62
Open the Parameter Operation Mode
62
Editing a Selected Parameter
63
Exit Parameter Operation Mode
63
Execute a Reset
63
Entry into the Extended Parameter Configuration Mode
63
Basic Settings
64
Automatic Query of Basic Data
64
Commissioning
66
With Absolute Encoder or Incremental Encoder
66
With Mechanical Limit Switches
67
With Light Curtain TST LGB
68
New Request for Teach-In of the End Positions
70
Boost / Increase in Performance for Low Speeds
70
Movement Optimisation for the Door
71
Opening of the Door
71
Closing of the Door
72
Pre-Limit Switch Setting
73
Ramp Configuration
73
Correction of the Final Positions
73
Functions
73
Messages
74
Error Messages
74
Information Messages
89
General Messages
91
Specifications
94
