Feig Electronic TST FUZ2-C User Manual

TST
Assembly instructions
FUZ2 -A/-B/-C/-CX/-G/-L
FEIG ELECTRONIC GmbH
Page 52 of 96
TST_FUZ2-A-B-C-CX-G-
L_Montageanleitung_EN_22.docx
6.12 Overview of inputs
86 - +24 V
85 - Input 7: Manual / automatic
84 - GND
83 - +24 V
82 - Input 6: Permanent OPEN
81 - GND
76 - +24 V
75 - Input 5: photo eye
74 - GND
73 - +24 V
72 - Input 4: Pull switch (Open & Close)
71 - GND
66 - Output 15: +24 V
65 - Input 10: Disable auto close time
64 - Input 9: Deactivating intermediate stop
63 - GND
62 - +24 V
61 - Input 8: Locking endposition CLOSE
54 - Input 3: CLOSE
53 - Input 2: STOP
52 - Input 1: OPEN
51 - +24 V
45 - +12 V
44 - GND
43 - Safety edge Safety edge closing
42 - E-stop 1
41 - E-stop 1
36* - GND
35* - Channel B
34* - Channel A
33* - +12 V
32* - E-stop 2
31* - E-stop 2
8K2
10
9
8
7
6
#
5
#
3 / blue
2 / white
4 / black
1 / brown
3
2
4
6
5
1
#
Only with TST PE_FSBS

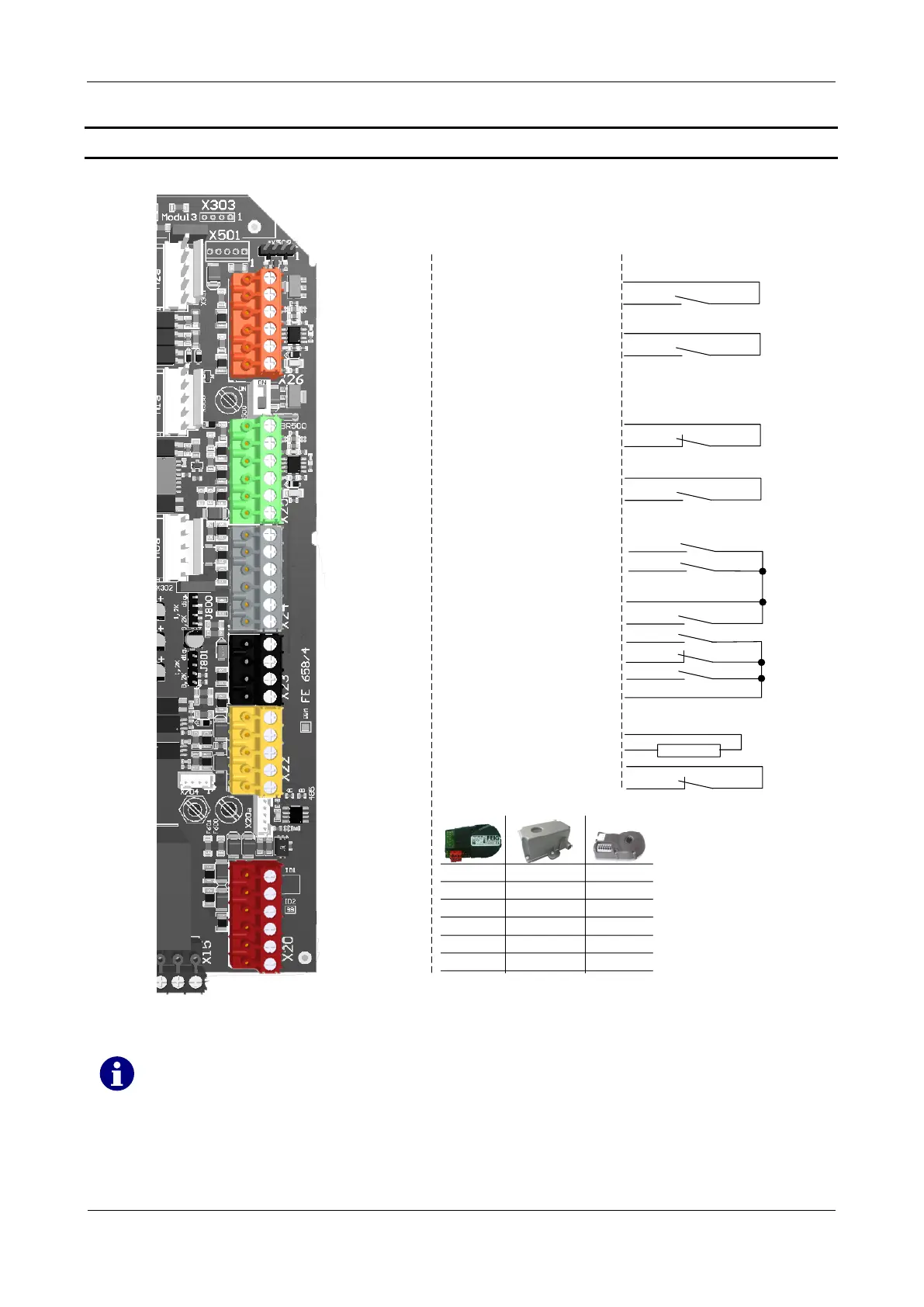

Figure 33: Overview of inputs
Input 10 is used in controller variant -B as a second safety edge monitor.
Remove the connection of mechanical limit switches (6.7.4 Mechanical limit switches).
