Felder A 941 - Assembly and Installation

18
!
BP
/
/
#
#
#
"
"
$
$
!
%
%
BP
BQ
BQ
&
&
*
*
)
BL
BL
BM
BN
BO
ø 140 mm
ø 120 mm
Planer-Thicknesser
A 941 / AD 941 / AD 951

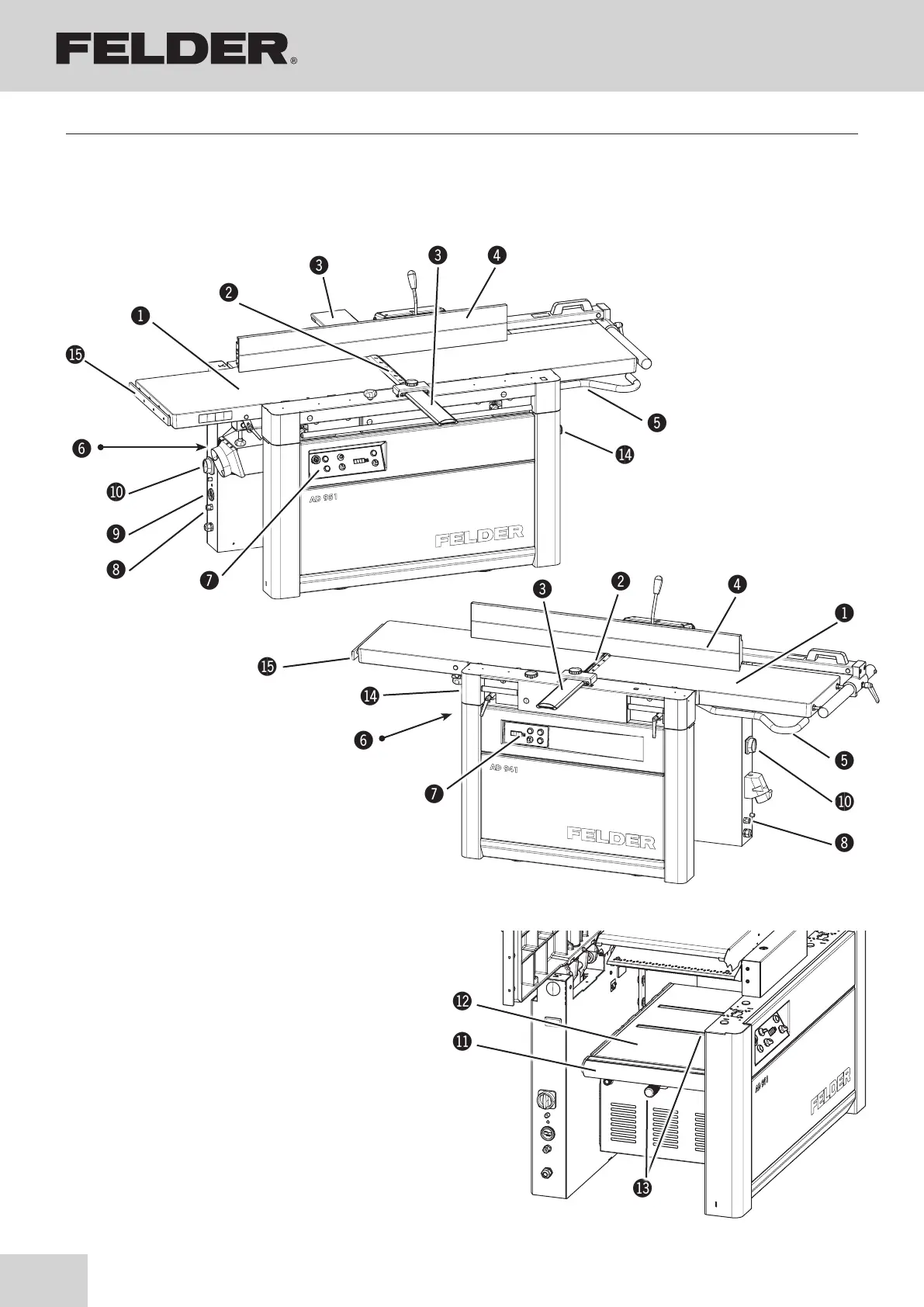

Fig. 5-1: Overview - AD 951
Fig. 5-2: Overview - A 941 / AD 941
Fig. 5-3: Overview - Thicknesser unit
!Planer unit
"Cutterblock
#Cutterblock cover
$Planer fence
%Adjusting the depth of cut
&Dust extraction outlet, Ø
/Control panel
(Potential-free contact
)Operating hour meter (Option)
BLMain switch
BMWorkpiece roller (Option)
BNThicknesser table
BOUnder table rollers (Option)
BPEMERGENCY-STOP button
AD 941 - Option
BQTable extension clamping system “F”
(Option)
5 Assembly
5.1 Overview
Assembly
