Planer-Thicknesser
A 941 / AD 941 / AD 951

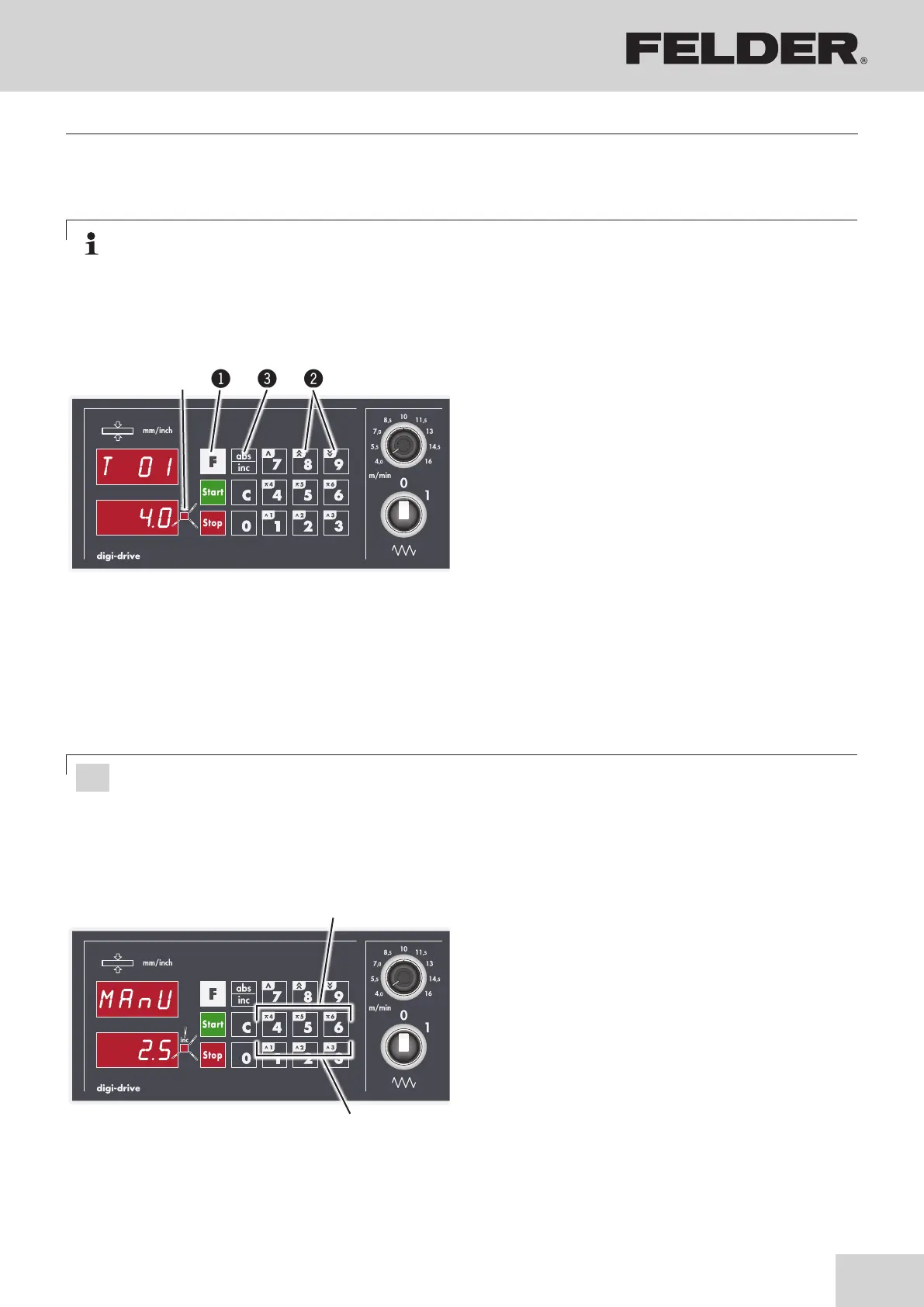

Fig. 8-12: Fixed values
Fig. 8-13: Using fixed values
Note:
Keys 1–3 and 4–6 can be programmed with fixed values.
1–3: Incremental positioning / 4–6: Absolute positioning
!F key
"button 8 / 9: Select parameter
#Save key (ABS>INC)
$LED - Inc
!1–3: Incremental positioning
"4–6: Absolute positioning
8.9.2 Fixed values
8.9.3 Setting fixed values
8.9.4 Using fixed values
• Press F Key.
• The following value appears in the display: MAnU
• Retrieve the saved value 1, 2, 3 or 4, 5, 6.
• Press the Start key to start positioning.
The thicknesser table travels the distance of the
saved value (1, 2, 3) or travels to the saved position
(4, 5, 6).
• Press F key for about 5 seconds.
”REF” and the last calibration are displayed.
• With the keys 8/9: Select parameter (e.g. T01 for
value „1“) and press the ABS>INC key.
• LED flashes. Input desired value.
• Save the parameter value with the ABS>INC key, the
next parameter will be displayed in the actual value
window.
• Exit parameter input with the F key or
the control system reverts to the operating mode after
a few seconds.
Attention! First decimal place must be entered (e.g. 4-0 for 4 mm)!
