Bin Bout A+ F1 T
CONNECTIONS
F1 A+ T Bin Bout
F1 A+ T Bin Bout
Power, data, audio and video input (no polarity).
Power, data, audio and video output (cascade connection).
Call Button Connection for Doors to Residences. (See diagram P1).
Call extension connection ref 2040 / Light and bell activator ref. 2438
Additional functions (negative output "-" / send command, see chapters: Monitor iLoft:
Buttons / F1 Button: Auxiliary F1 function
.
Bin
Bout
T, -
A+, -
F1, F2
Flush-mounted
Surface
- A+ F1 T
B
in
B
out
Bin Bin Bout Bout A+ F1 T
Bin Bin Bout Bout A+ F1 T Bin Bin Bout Bout A+ F1 T

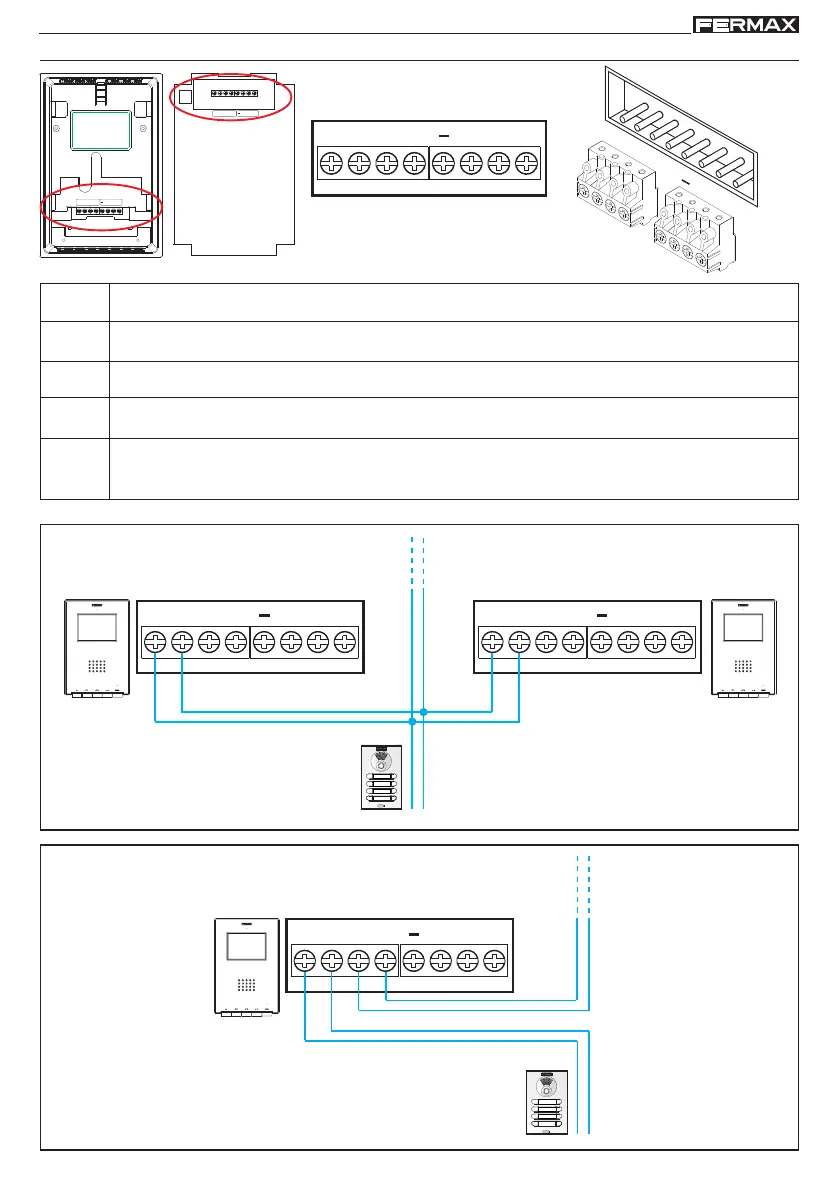

Distribution diagram
Cascade diagram
