HYDRAULIC ELECTRONIC BOARD BOX
6. WIRING CONNECTION
6.1 Power supply
EXTERNAL KIT
POWER SUPPLY
L N
EXTERNAL KIT
POWER SUPPLY
fig. 5 -
Power Supply Voltage(L/N) 220-240V AC
Wiring size 1.5mm
2
NOTE
Leakage Protection Switch must be installed to the Power Supply of the unit.service panel.
6.2 Communication connection

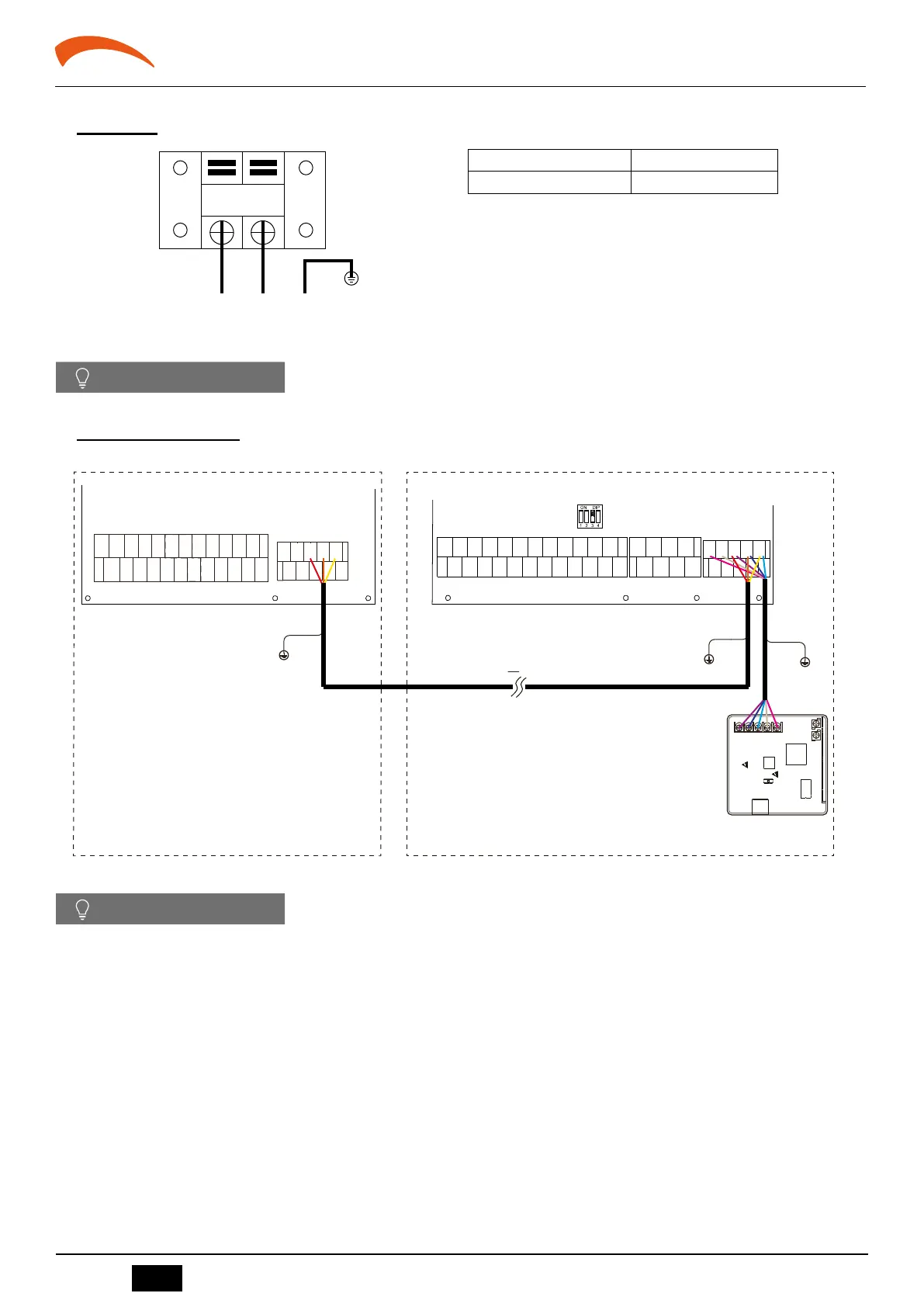

Connect 3 shielded wires(3*0.75mm
2
) between kit X Y E and hydraulic module board X Y E.
Hydraulic module board of M thermal Arctic Series
1
SL1
2
SL2
3
4
C
H
5 6
1ON
7
1OFF
8
9 10
11
12
P_s
23 24
N
21
N
3ON
3OFF
20
19
18
13 14 15
IBH1
L1
16
17
N
22
25
29
30
31
DFT2
32
DFT1
26
27
S1
HT
R2
AH
28
AHS2
1
A
2
3
B
4
X
5
Y
E
6
P
7
Q
8
9
E H1
10
H2
2ON
2OFF
P_c
P_o
P_d
N
R1
TBH
N
N
N N
CN11 CN7 CN30
P_d
P_s
CN11 CN30
1
A
2
B
3
X/HA
4
Y/HB
5
E
6
P
7
Q
8
E
9
H1
10
H2
1
AHS1
2
AHS2
3
4
TBH
5 6
7
1ON
1OFF
8
9 10
P_o
11
C1
12
24
3OFF
23
C1
20
21
IBH1
19
18
13 14 15
16
17
P_c
22
2ON
2OFF
3ON
P_X
C1
C1
C1C1C1C1
IBH2
L1<50m
H1 H2
Wired Controller of M thermal Arctic Series
X
Y
E
B
A
1
0
S4-3
MH-kit PCB
Wired controller of monobloc
Hydraulic module board of monobloc
Kit PCB
fig. 6 -
NOTE
The DIP switch S4-3 of hydraulic module board of Monobloc must set to ON.
