Festo Distributing Station - 6.2 Mechanical Set Up

6. Commissioning
24 © Festo Didactic GmbH & Co. KG 

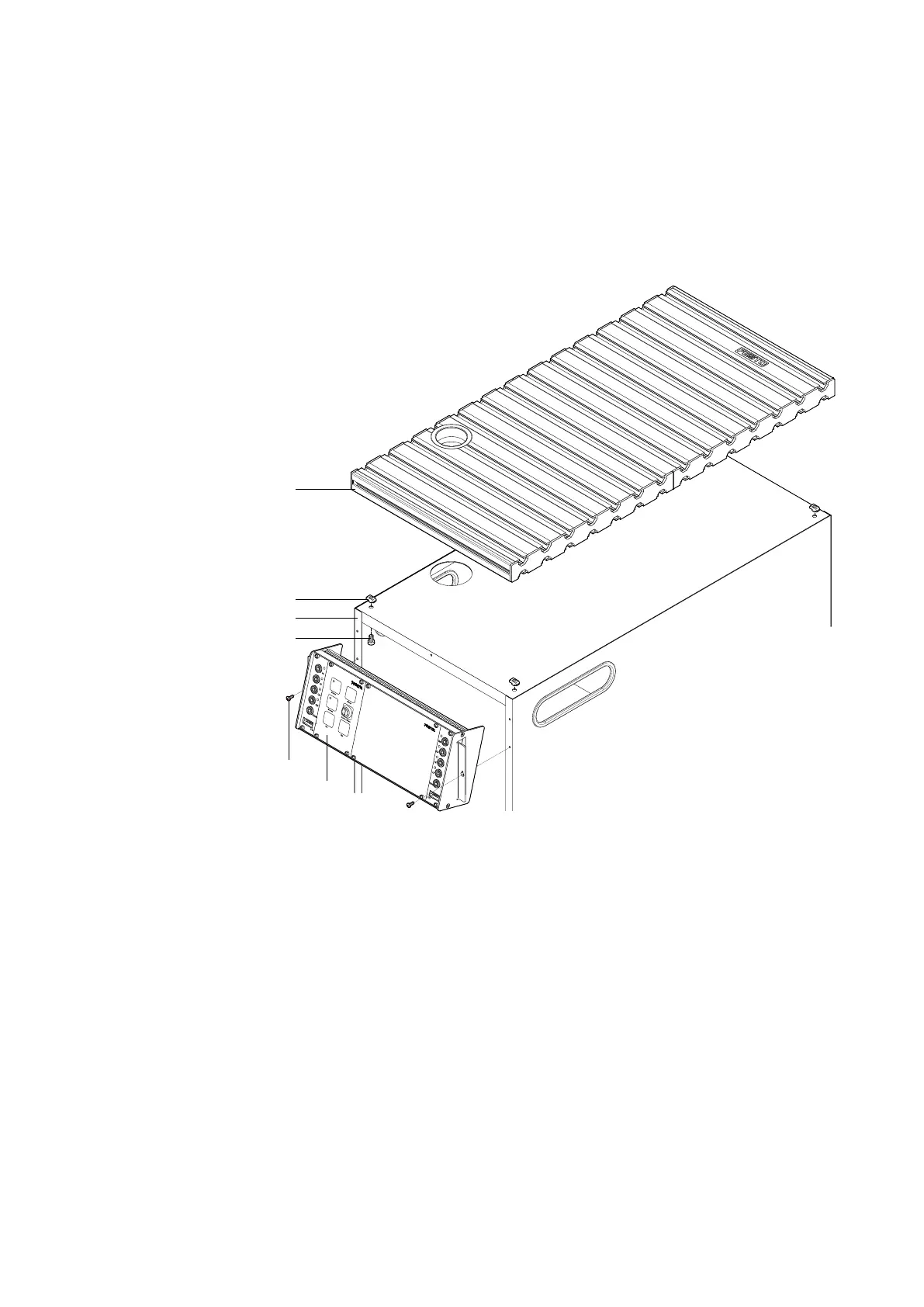

6.2.1 Assembling profile plate and control console
1
2 (4x)
4 (4x)
3
5 (2x)
6
1
Profile plate
2
T-head nut M6 x-32 (4x)
3
Trolley
4
Socket head screw M6x10 (4x)
5
Screw 3.5x9 (2x)
6
Control console
6.2
Mechanical set up
