5. Maintenance and conversion
5−22
Festo P.BE−MPA−EN en 0910d
5.3.7 Replacing the interlinking boards
MPA−S valve terminal with multi−pin plug connection
or AS interface
With the multi−pin plug connection, the electrical linking is
constructed on a modular basis. Each sub−base has its own
board. The following interlinking boards are available for the
MPA−S valve terminal with multi−pin plug connection:

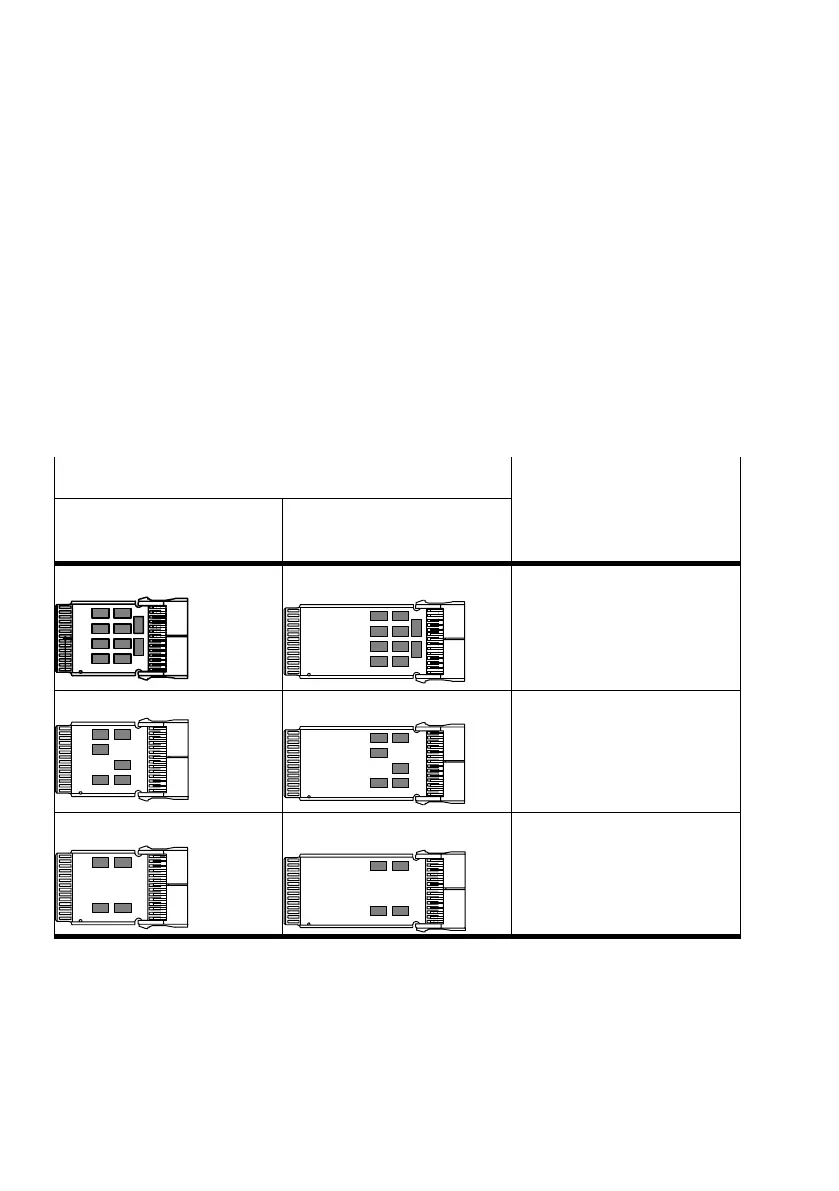

Interlinking board for ...
one sub−base one sub−base and
one supply plate
Version
Type: VMPA1−MPM−EV−AB−8 Type: VMPA1−MPM−EV−ABV−8 Only for size MPA1:
Printed circuit board for
controlling a total of 8 solenoid
coils per sub−base.
Type: VMPA1−MPM−EV−AB−4 Type: VMPA1−MPM−EV−ABV−4 For sizes MPA1 and MPA2:
Printed circuit board for
controlling a total of 4 solenoid
coils per sub−base.
Type: VMPA2−MPM−EV−AB−2 Type: VMPA2−MPM−EV−ABV−2 Only for size MPA2:
Printed circuit board for
controlling a total of 2 solenoid
coils per sub−base.
Tab.5/5: Interlinking boards type VMPA−MPM−...
