The sub−bases with integrated pressure zone separation are
marked with a notch. By means of the marking you can
ascertain with which sub−base variant your valve terminal is
equipped(see Tab.1/7).
Sub−base design
MPA1 MPA2
Sub−base with separate supply
channel (1)
Type: VMPA1−FB−AP−4−1−T1
Type: VMPA2−FB−AP−2−2−T0
Sub−base with separate supply
channel (1) and separate exhaust
channels (3) and (5).
Type: VMPA1−FB−AP−4−1−S1 Type: VMPA2−FB−AP−2−2−S0

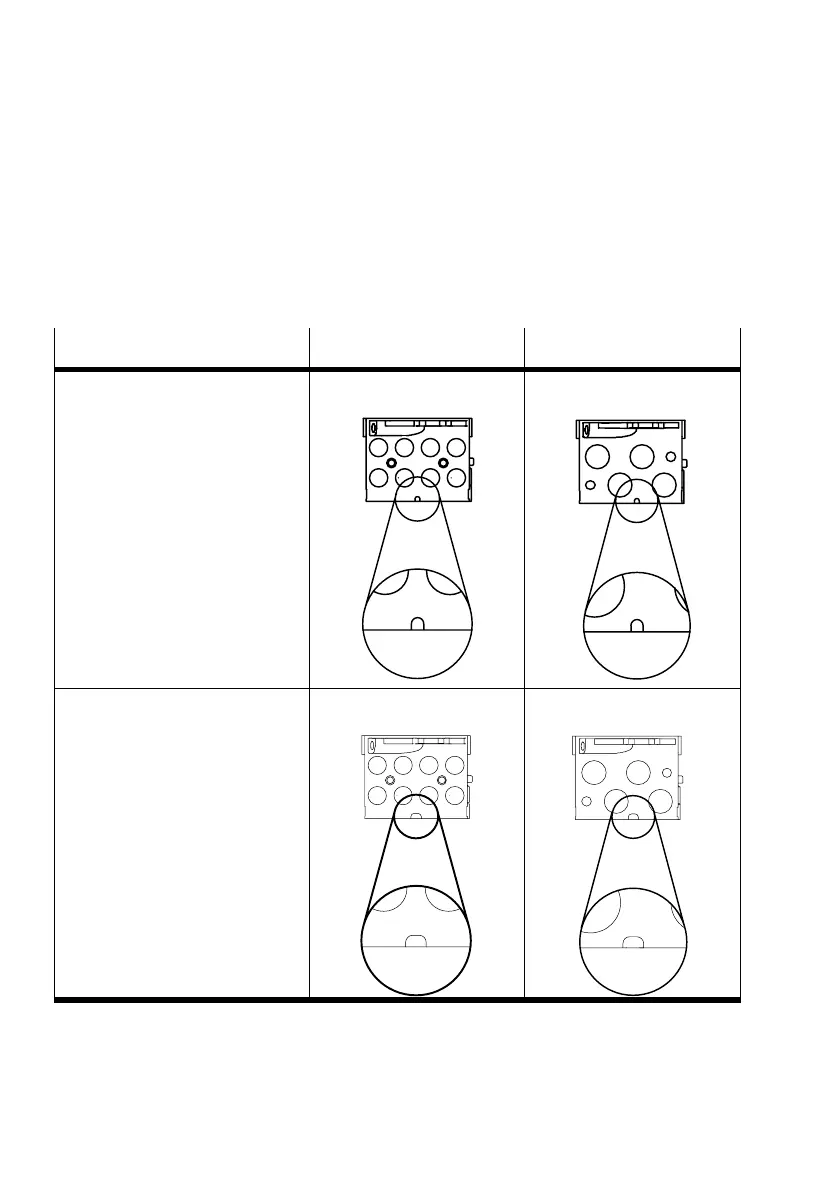

Tab.1/7: Variants of the sub−bases with pressure zone separation
