Vertical stacking
You can fit further pneumatic components to each valve
position between the sub−base and the valve.
Thesecomponents will enable you to implement certain
additional effects as desired. The following components are
available:

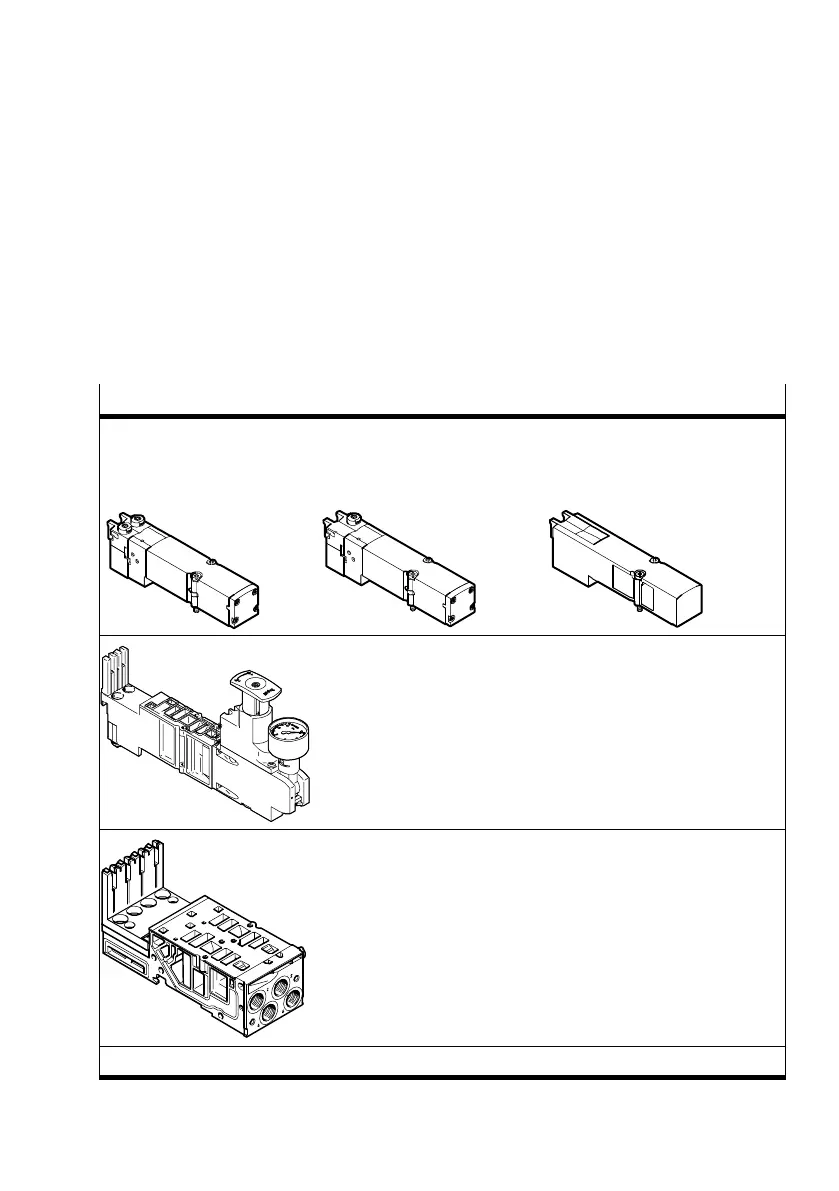

Component
Single−solenoid 5/2−way
valves
Alternative:
2x2/2−, 2x3/2−way valve or a
5/2−way double pilot valve or a
5/3−way mid−position valve
Alternative:
Cover plate, for sealing an unused
valve location
Type: MPA...
Pressure regulator plate type: VMPA... B8−R...C2−C−...
(with or without pressure gauge).
The Tab.1/10 provides you with an overview of the available
pressure regulator plate variants.
The following section describes the functions of the major pressure
regulator plates.
Vertical stacking, optional component:
1
)
Sub−base type MPA...−...−AP−... with electronic module type
VMPA...−...EM...
1)
For notes on installing the ver tical stacking components, see Chapter 3
Tab.1/9: Components of the pneumatic module of the MPA−S valve terminal
