1. Summary of components
1-14
Festo P.BE-SPC11 -DGP-EN en 0012NH
Fixed stops ( 8 )
With drives of type DGP(I)L-... you can use e.g. the shock ab-
sorber suppor t (without shock absorber) type KYP-... as the
fixed stop. The cushioning path of the internal end position
cushioning should not project into the work stroke used.
Fit the fixed stops outside the cushioning path.
12 2
33
1
Drive end position
2 Permitted end position (example)
3 Cushioning path of the internal end position cushioning

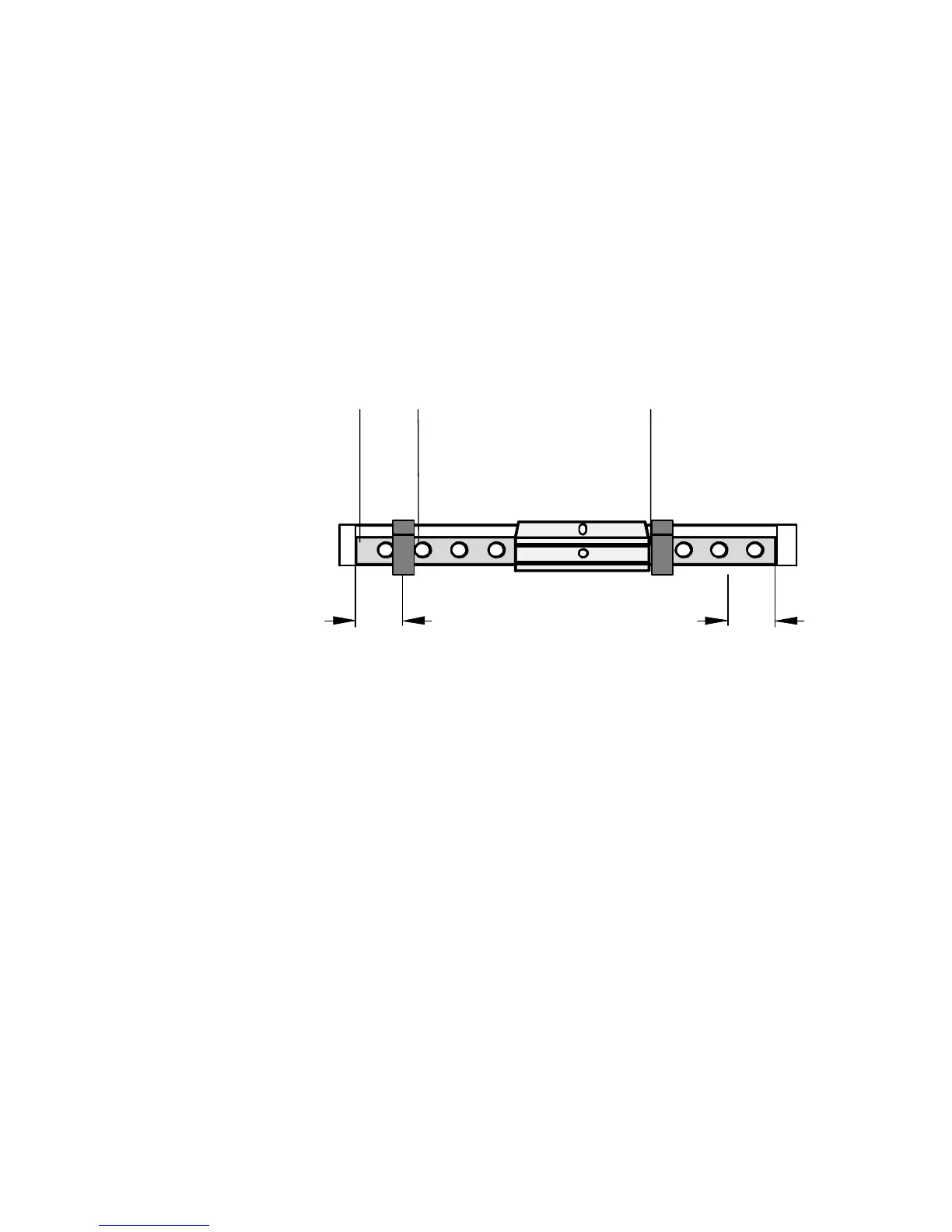

Fig. 1/5: Cushioning path
Specifications on the cushioning length of the drive used can
be found in the operating instructions for the drive and in the
Pneumatics catalogue.
