Fiat FIORINO 2021 - Replacing an Exterior Bulb

155
REPLACING AN
EXTERIOR BULB
For the type of bulb and relevant power
rating, see the “Changing a bulb”
paragraph.
FRONT LIGHT CLUSTERS

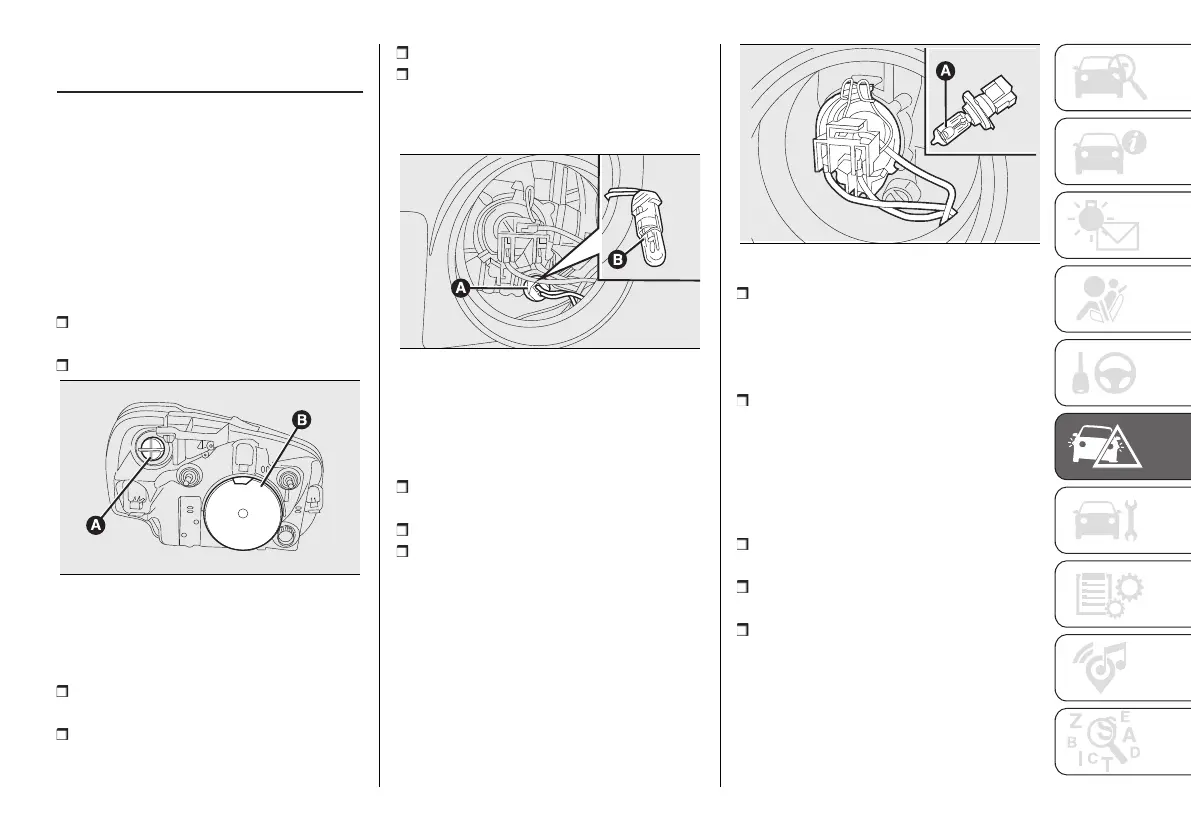

The front light clusters fig. 193 contain
sidelight, dipped beam, main beam and
direction indicator bulbs.
The bulbs are arranged inside the light
cluster as follows:
(A) Side lights/tail lights and
main/dipped beam headlights;
(B) Direction indicators.
193 F0T0093
SIDE LIGHTS
To replace the bulb, proceed as
follows:
remove the protective cover (A)
fig. 193;
turn the bulb holder (A) fig. 194
anticlockwise and extract it;
extract the bulb (B) and replace it;
refit the new bulb, put the bulb
holder (A) fig. 194 back into place
and then refit the protective cover (A)
fig. 193 properly.
194 F0T0094
DIPPED BEAM/MAIN
BEAM HEADLIGHTS
To change the bulb (double filament),
proceed as follows:
remove the protective cover (A)
fig. 193;
release the bulb holder clip;
extract the bulb (A) fig. 195 from the
connector (B) and replace it;
195 F0T0095
refit the new bulb by inserting it on
connector (B) and then make the
contour of the metallic part mate with
the grooves obtained on the headlight
parabola;
refit the bulb holder clip and refit the
protective lid (A) fig. 193.
DIRECTION INDICATORS
Front
To replace the bulb, proceed as
follows:
turn the protective lid (B) fig. 193
anticlockwise;
extract the bulb (A) fig. 196 and
replace it;
correctly refit the protective cover (B).
