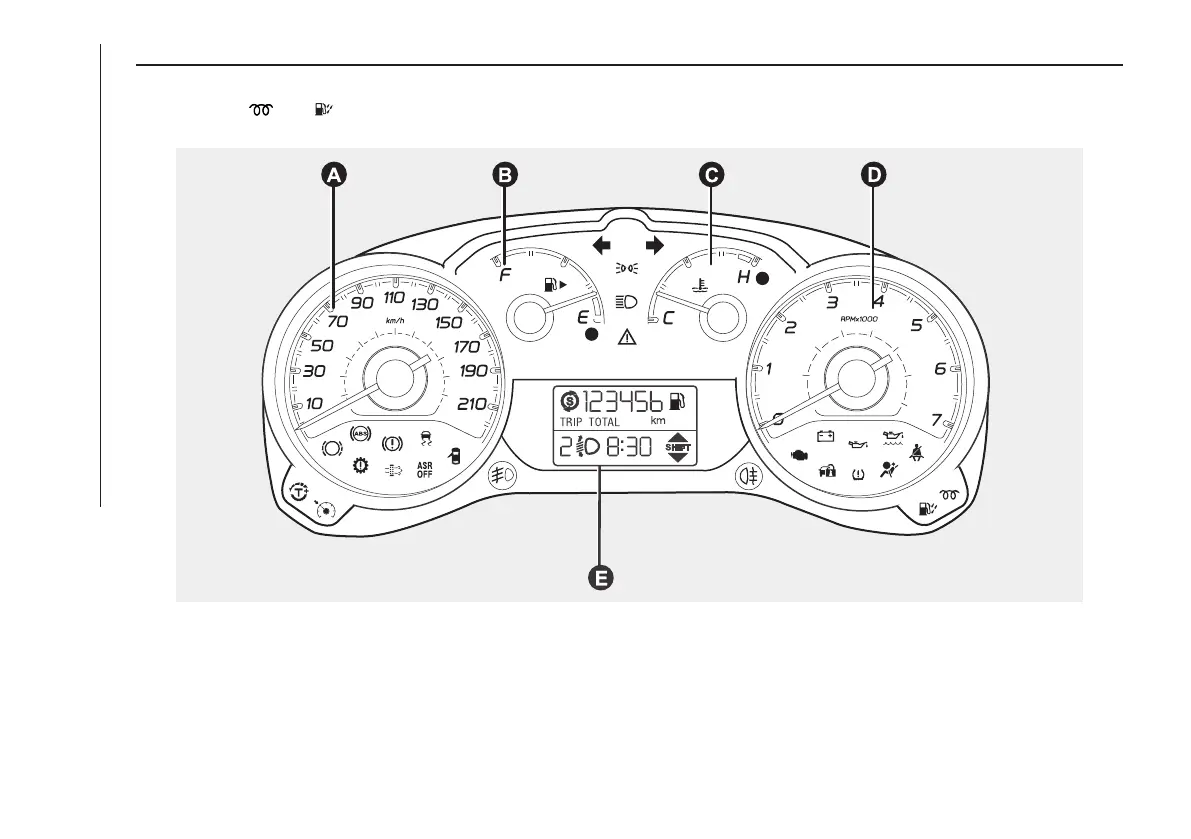

KNOWING THE INSTRUMENT PANEL
64
DASHBOARD AND INSTRUMENT PANEL
Versions with digital display
Warning lights and are available on diesel versions only.
122 F0T0807
A. Speedometer B. Fuel level gauge with reserve warning light C. Engine coolant temperature indicator with overheating warning
light D. Rev counter E. Digital display
