REMOVABLE CEILING
LIGHT
(for versions/markets, where provided)
To replace the bulb, proceed as
follows:

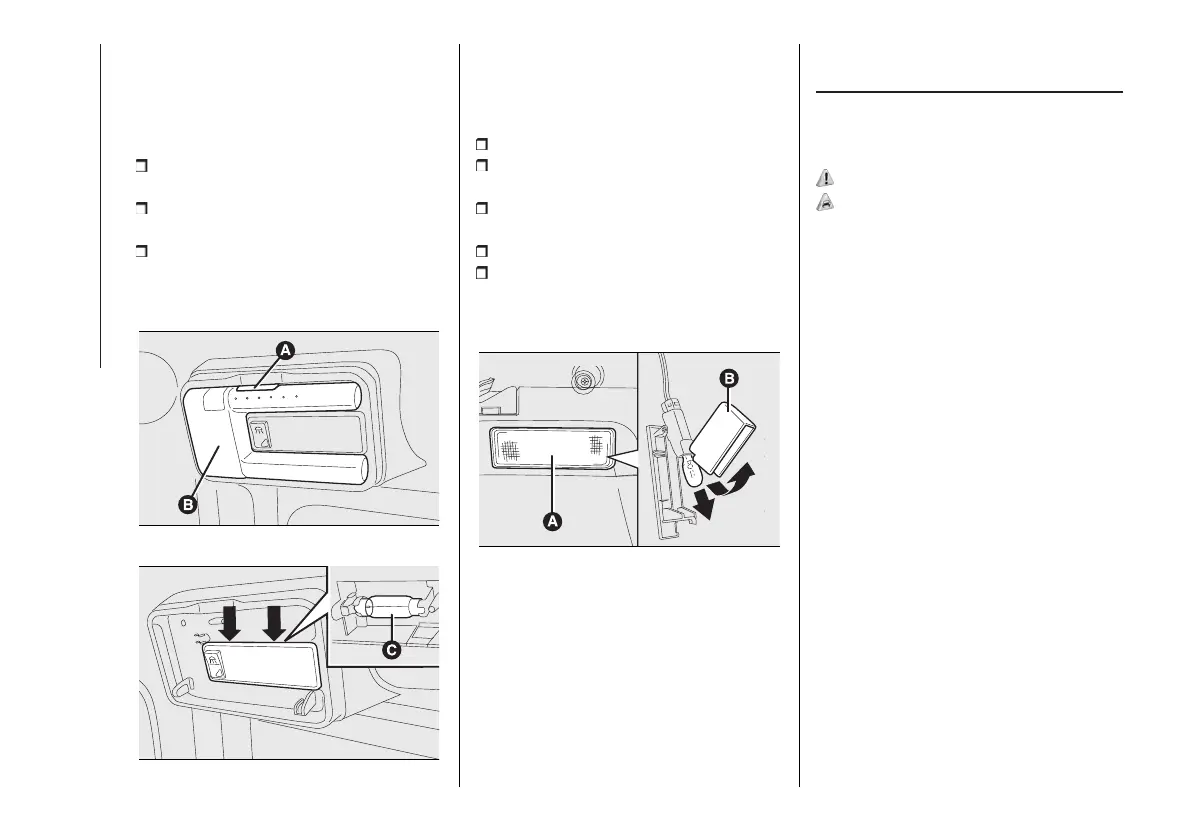

press button (A) fig. 214 and extract
the removable courtesy light (B);
extract the ceiling light by operating
in the points shown by the arrows;
change the bulb (C) fig. 215 releasing
it from the side contacts and making
sure the new bulb is correctly fastened
between the contacts;
A
UT
O
214 F0T0108
AUT
O
215 F0T0109
BOOT COURTESY LIGHT
(for versions/markets, where provided)
To change the bulb, proceed as
follows:
open the tailgate;
remove the light (A) fig. 216 levering
in the point shown by the arrow.
open the protection (B) replace the
snap-fitted bulb;
close the cover (B) on the lens;
refit the ceiling light (A) by inserting it
in its correct position firstly on one side
and then pressing on the other until it
clicks into place.
216 F0T0251
FUSE
REPLACEMENT
GENERAL INFORMATION
For fuse replacement, contact a Fiat
Dealership.
135) 136) 137) 138) 139) 140)
30)
Fuses protect the electrical system:
they intervene (blow) in the event of
a failure or improper action on the
system.
Check the state of the corresponding
fuse when a device does not work: the
filament (A) fig. 217 should be intact.
If it is not, replace the blown fuse with
another with the same ampere rating
(same colour).
(B) intact fuse.
(C) fuse with damaged filament.
To change a fuse, use the tongs (D)
located in the tool box or the Fix&Go
container (for versions/markets where
provided).
Refer to the tables on the following
pages to identify the protective fuse.
WARNING The Natural Power system
components are protected by specific
fuses. Contact a Fiat Dealership for
replacement.
