KNOWING YOUR VEHICLE
44

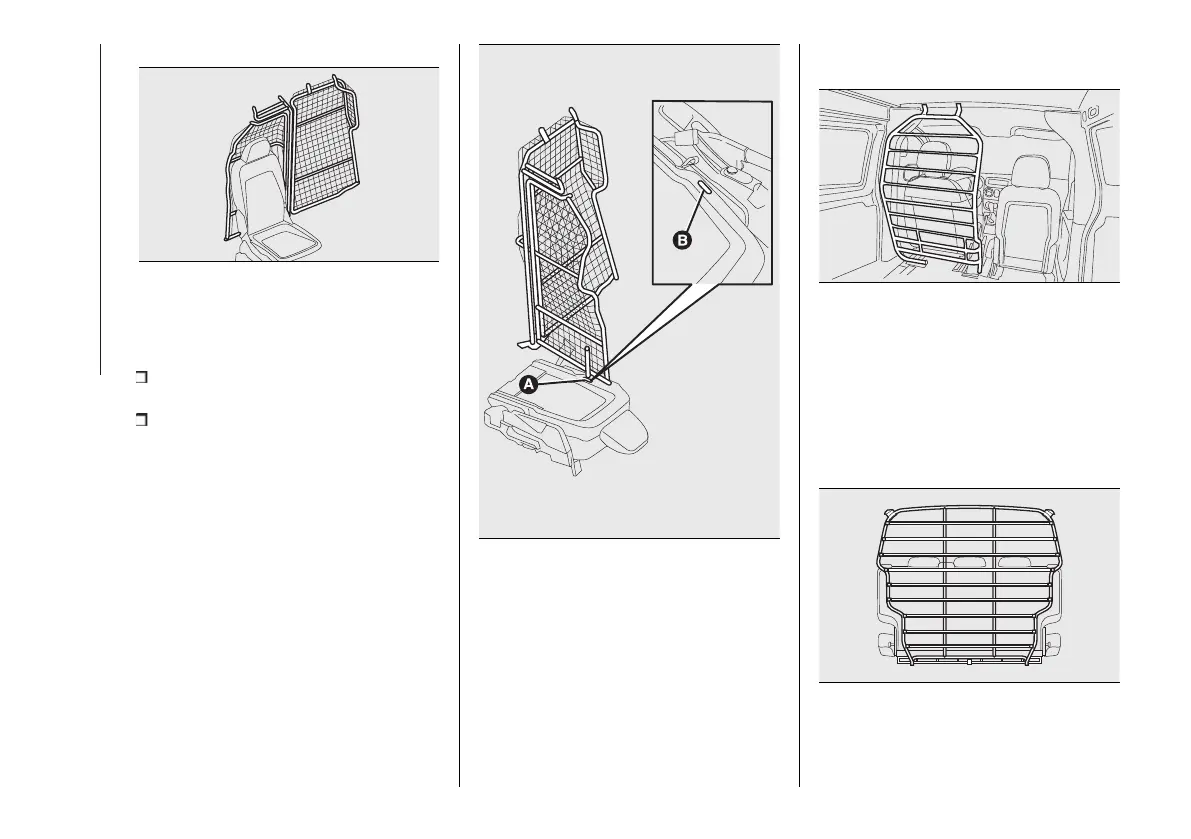

Pivoting split partition fig. 63
63 F0T0196
If you need to carry awkward shaped
items, you can open the partition as
follows:
lay the foldaway passenger seat flat
(see previous pages);
from inside the load compartment,
unhook the pin (A) fig. 64on the back of
the partition and insert it in seat on the
backrest of the folded seat (B).
64 F0T0210
To put the partition back in its normal
position, follow the same procedure in
reverse.
DRIVER PROTECTION
LADDER
(for versions/markets, where provided)
On some versions, a fixed ladder fig. 65
is provided to protect the driver from
unstable loads and allow greater
loading capacity from the passenger
side.
65 F0T0177
FIORINO COMBI AND
QUBO N1 4-SEATER
VERSIONS
(for versions/markets, where provided)
Fixed partition fig. 66
This is located behind the backrest of
the rear seats.
66 F0T0195
