L830-EB Hardware User Manual Page 10 of 39
3.1.1 Pin Map

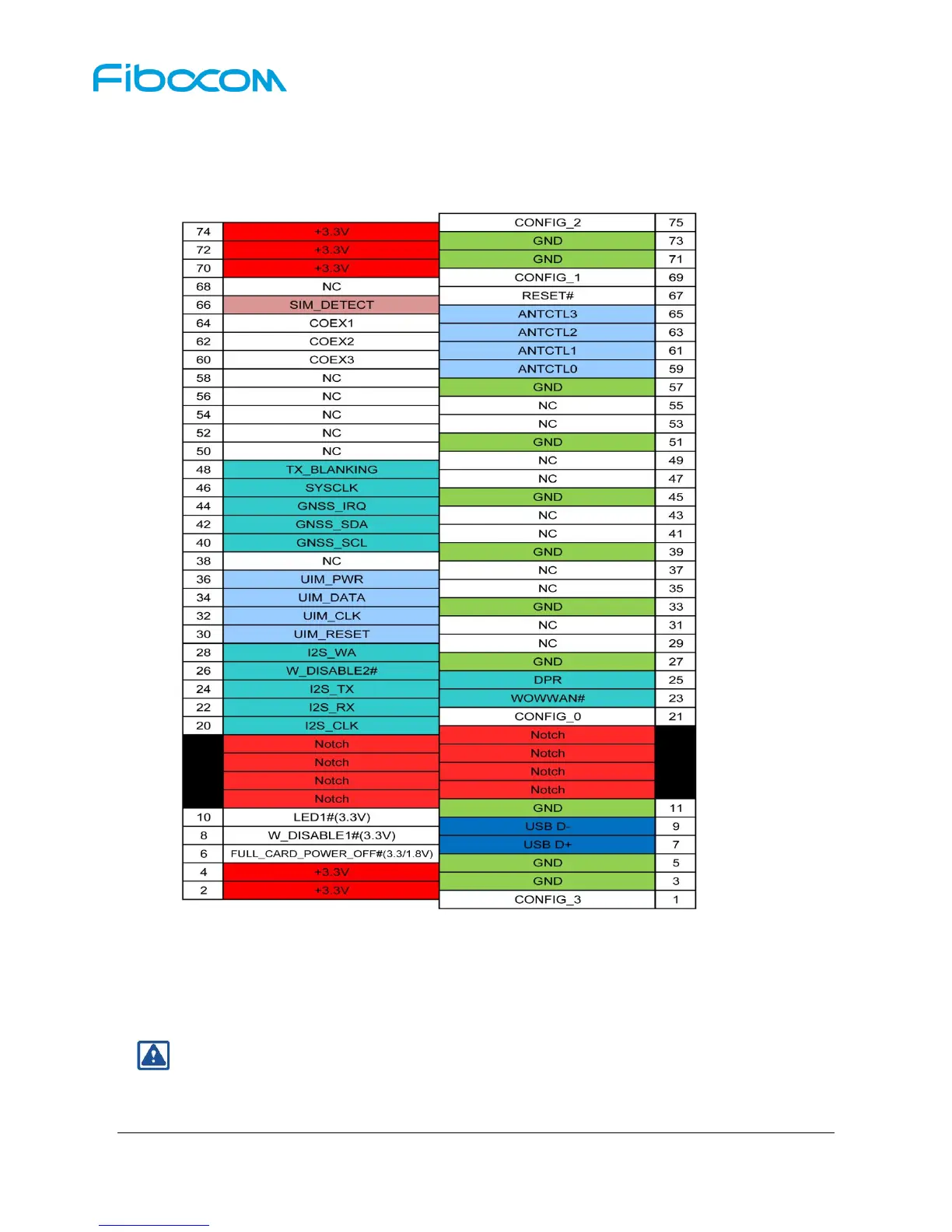

Figure 3-1 Pin Map
Note:
Pin “Notch” represents the gap of the gold fingers.
