L830-EB Hardware User Manual Page 18 of 39

3.3.1 Module Start-Up

3.3.1.1 Start-up Circuit

The FULL_CARD_POWER_OFF# pin needs an external 3.3V or 1.8V pull up for booting up. The

VDD(3.3V/1.8V) should be provided from the external circuit. Two methods for module starting up:

 AP (Application Processor) controls the module start-up, and the circuit design is shown in Figure

3-4:

 Automatically start-up when powered on, and the circuit design is shown in Figure 3-5:

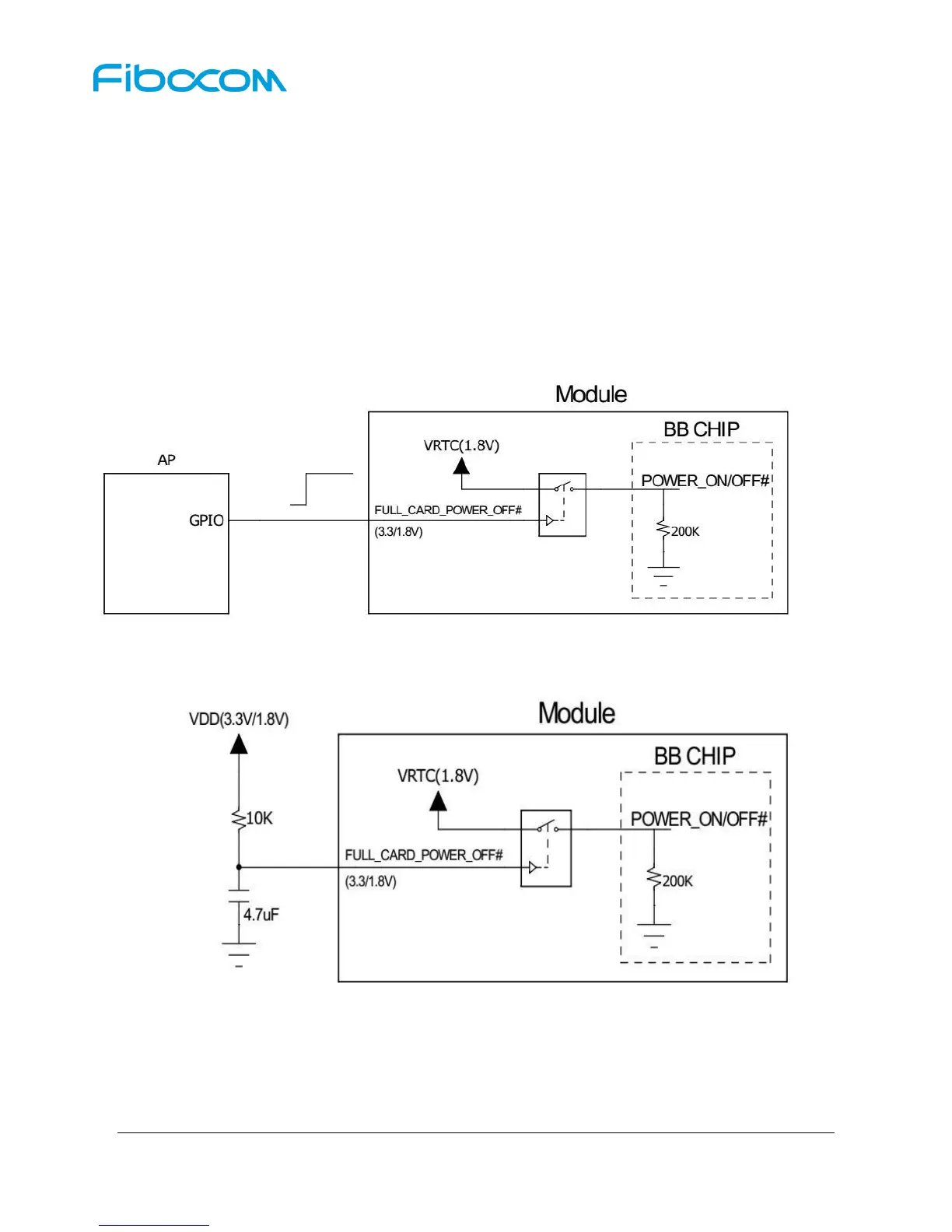

Figure 3-4 Circuit for Module Start-up Controlled by AP

Figure 3-5 Circuit for Automatic Start-up
