L830-EB Hardware User Manual Page 36 of 39

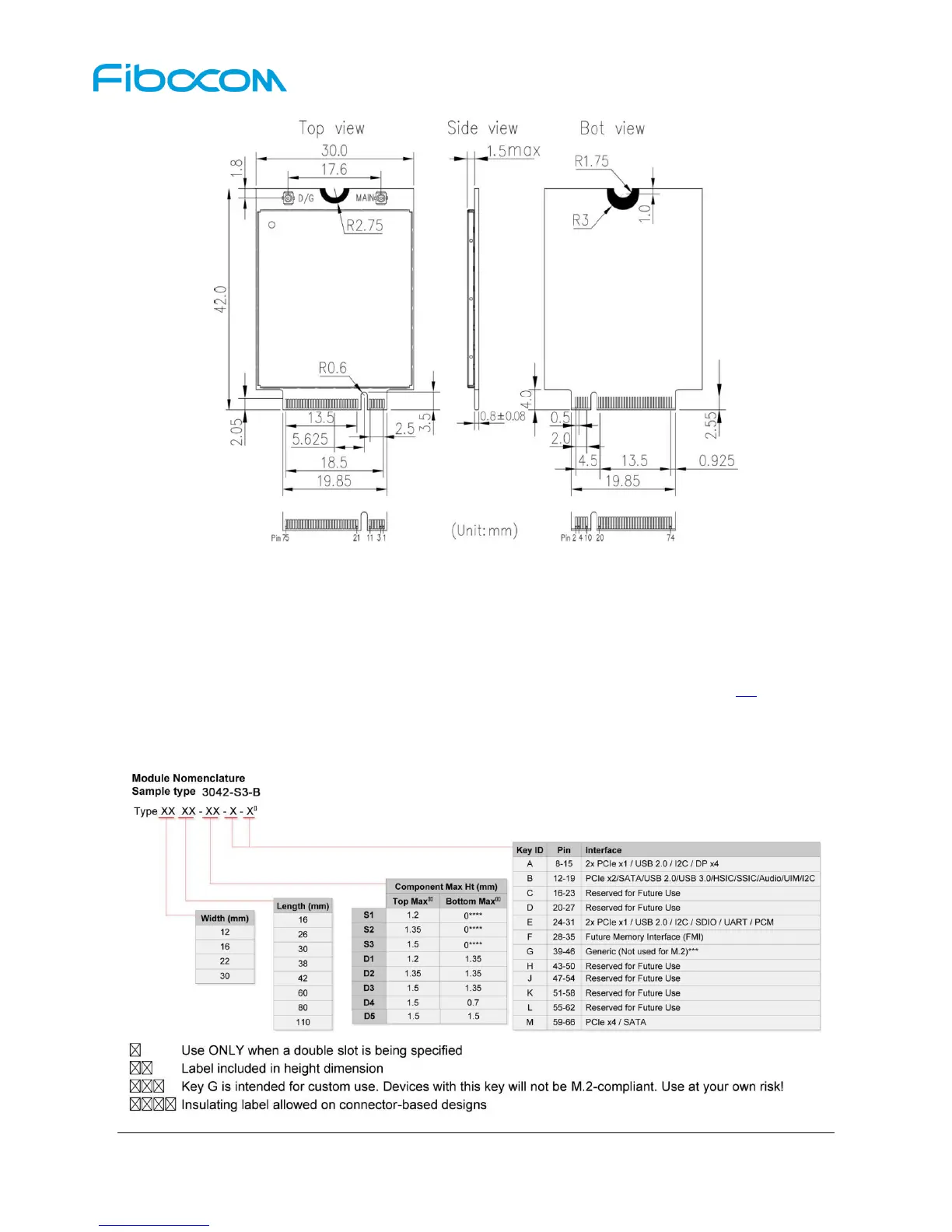

Figure 5-2 Dimension of Structure

5.3 M.2 Interface Model

The L830 M.2 module adopts 75-pin gold finger as external interface, where 67 pins are signal pins and 8

pins are notch pins as shown in Figure 3-1. For module dimension, please refer to chapter 5.2. Based on

the M.2 interface definition, L830 module adopts Type 3042-S3-B interface (30x42mm, the component

maximum height on t top layer is 1.5mm, PCB thickness is 0.8mm, and KEY ID is B).

5.4 M.2 Connector

The L830 module connects to AP via M.2 connector, it is recommended to use M.2 connector from
