5.6.2 Tray size
The pallet size is 330*175*6.0mm, as shown in Figure 5-5:
ITEM
L
W
H
T
A0
B0
DIM
330.0±0.5
175.0±0.5
6.0±0.3
0.5±0.1
43±0.3
33.0±0.3
ITEM
A1
B1
C
D
E
F
DIM
294.0±0.3
159.0±0.3
20.0±0.5
9.0±0.5
24.5±0.5
187.5±0.2
ITEM
G
J
DIM
105.0±0.2
9.0±0.2

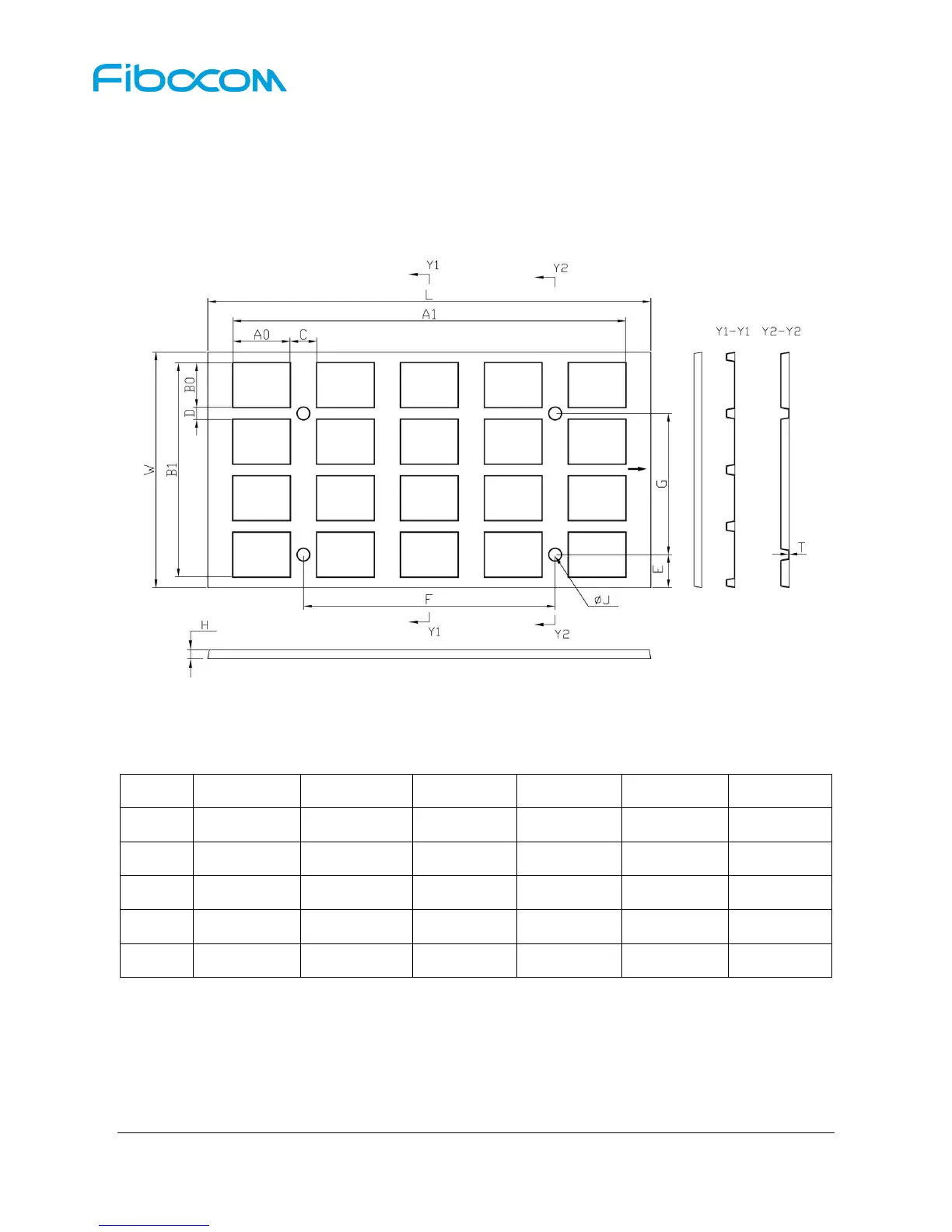

Figure 5-5 Tray Size (Unit: mm)
