power, the maximum operating current can reach 1A, so the power source should be not lower than
3.135V, or the module may shut down or reboot. The power supply limits are shown in Figure 3-3:
Burst transmit Burst transmit
min:3.135V
Power supply
Ripple≤300mV
Drop
VBAT≥3.135V

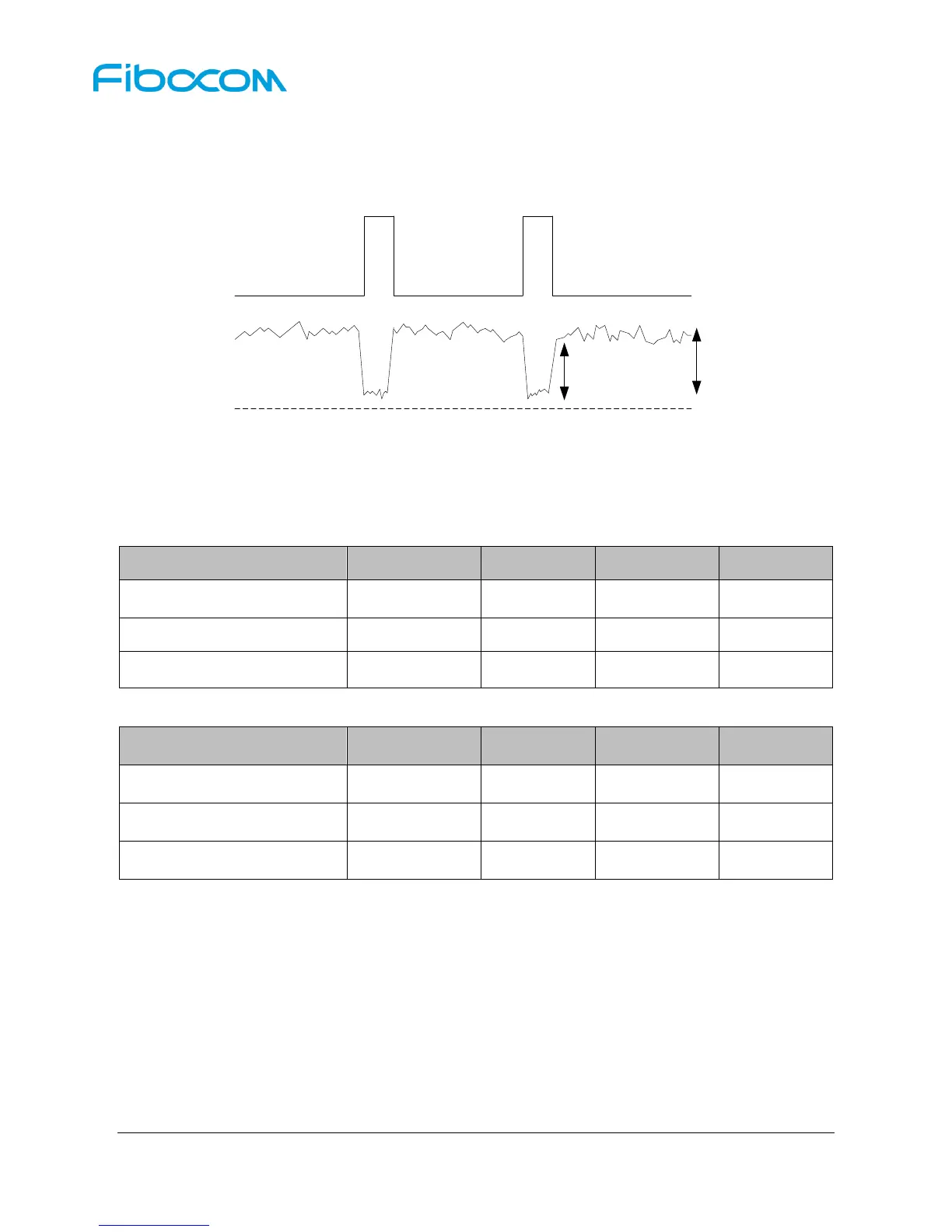

Figure 3-3 Power Supply Limit
3.2.2 Logic level
The L830 module 1.8V logic level definition as shown in the following table:
Parameters
Minimum
Typical
Maximum
Unit
1.8V logic level
1.71
1.8
1.89
V
V
IH
1.3
1.8
1.89
V
V
IL
-0.3
0
0.3
V
The L830 module 3.3V logic level definition as shown in the following table:
Parameters
Minimum
Typical
Maximum
Unit
3.3V logic level
3.135
3.3
3.465
V
V
IH
2.3
3.3
3.465
V
V
IL
-0.3
0
0.3
V
3.2.3 Power Consumption
In the condition of 3.3V power supply, the L830 power consumption as shown in the following table:

Fibocom L830-EB Specifications

General

Category	Computer Hardware
Manufacturer	Fibocom
Model	L830-EB
Form Factor	M.2
Operating Temperature	-10°C to +55°C
LTE Bands	B1/B3/B5/B7/B8/B20
3G Bands	B1/B5/B8
Data Rate	LTE Cat4: 150Mbps DL / 50Mbps UL
Interface	PCIe, USB 2.0
Operating Voltage	3.135V to 4.4V
