L830-EB Hardware User Manual Page 35 of 39

L830 module Main antenna requirements

Bandwidth(LTE)

LTE band 1(2100): 250 MHz

LTE Band 3(1800): 170 MHz

LTE band 5(850): 70 MHz

LTE band 7(2600): 190 MHz

LTE Band 8(900): 80 MHz

LTE band 20(800): 71 MHz

LTE band 28(850): 100 MHz

LTE band 32(700): 11 MHz

Impedance

50 Ohm

Input power

> 25dBm average power WCDMA & LTE

Recommended

standing-wave ratio (SWR)

≤ 2:1

5 Structure Specification

5.1 Product Appearance

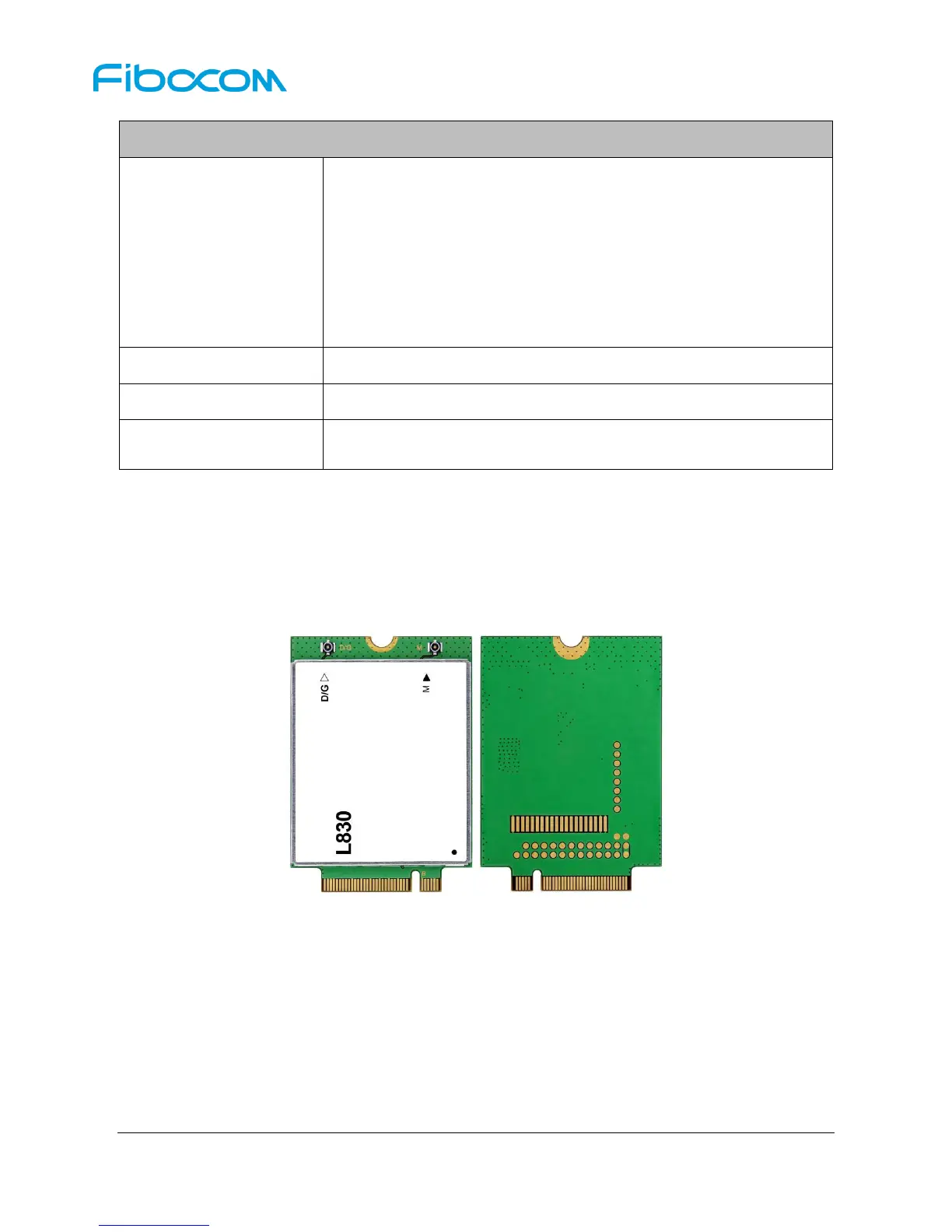

The product appearance for L830 module is shown in Figure 5-1:

Figure 5-1 Module Appearance

5.2 Dimension of Structure

The structural dimension of the L830 module is shown in Figure 5-2:
