L850-GL Hardware User Manual Page 16 of 54
3 Application Interface
3.1 M.2 Interface
The L850 module applies standard M.2 Key-B interface, with a total of 75 pins.
3.1.1 Pin Map

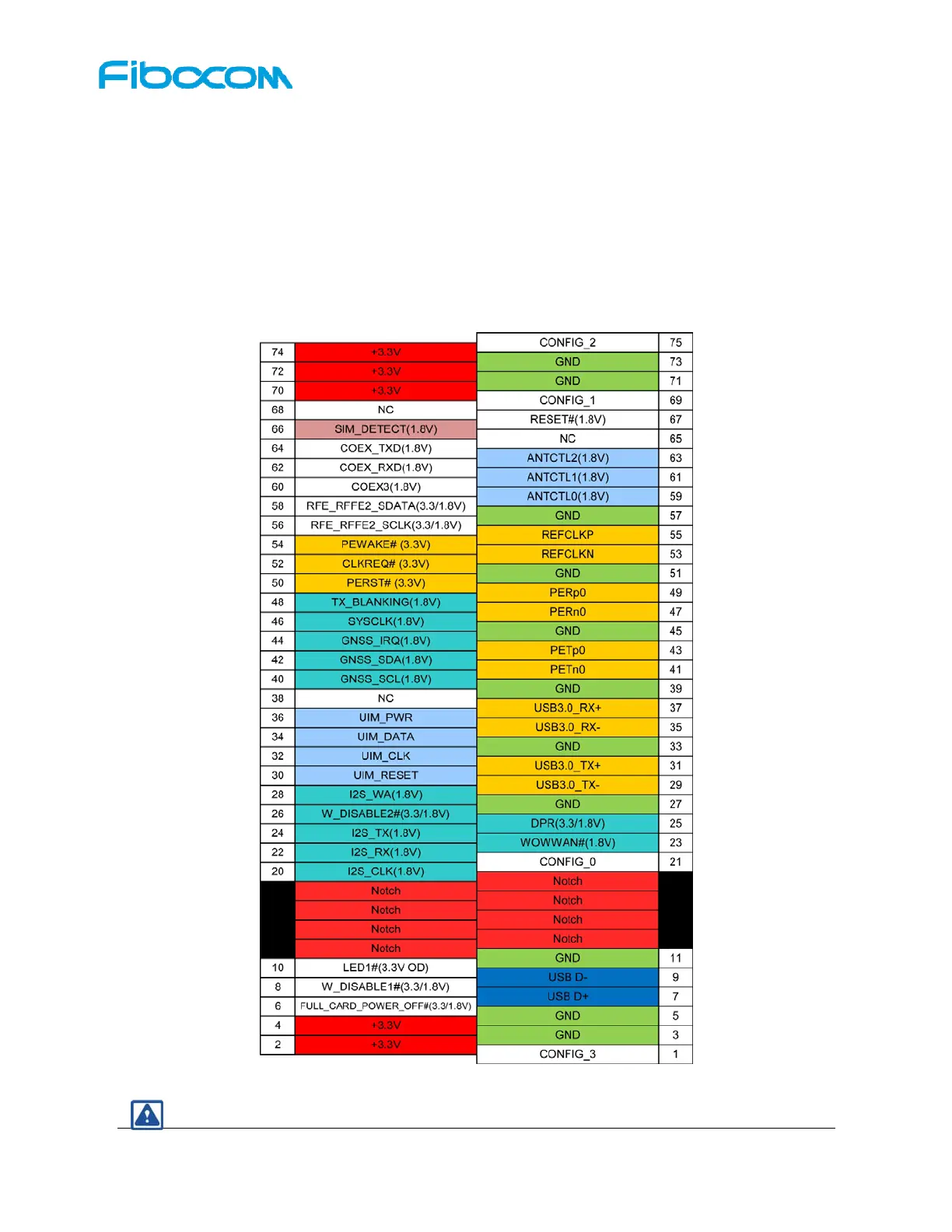

Figure 3-1 Pin Map
