L850-GL Hardware User Manual Page 50 of 54
5 Structure Specification
5.1 Product Appearance

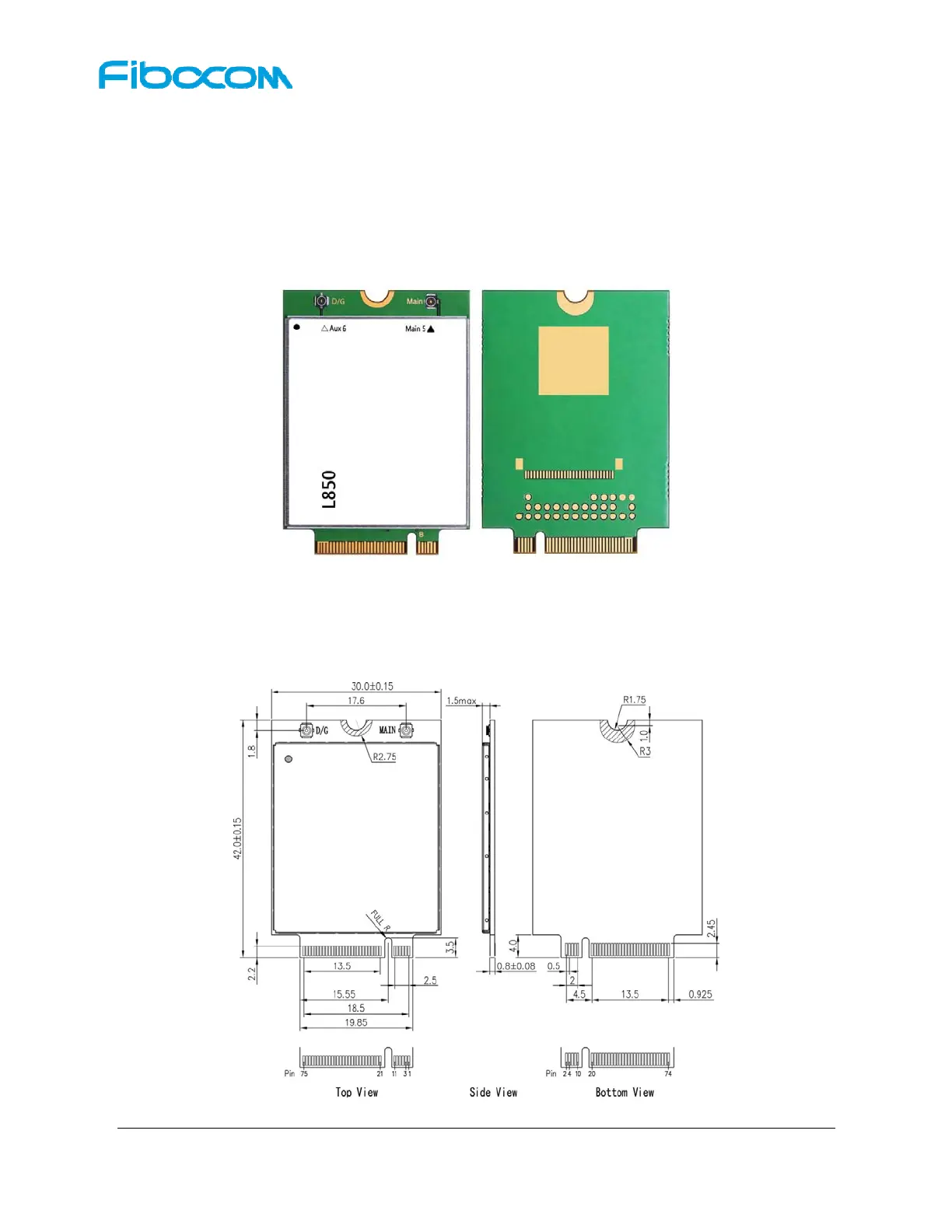

The product appearance for L850 module is shown in Figure5-1:
Figure 5-1 Module Appearance
5.2 Dimension of Structure
The structural dimension of the L850 module is shown in Figure 5-2:
Figure 5-2 Dimension of Structure
