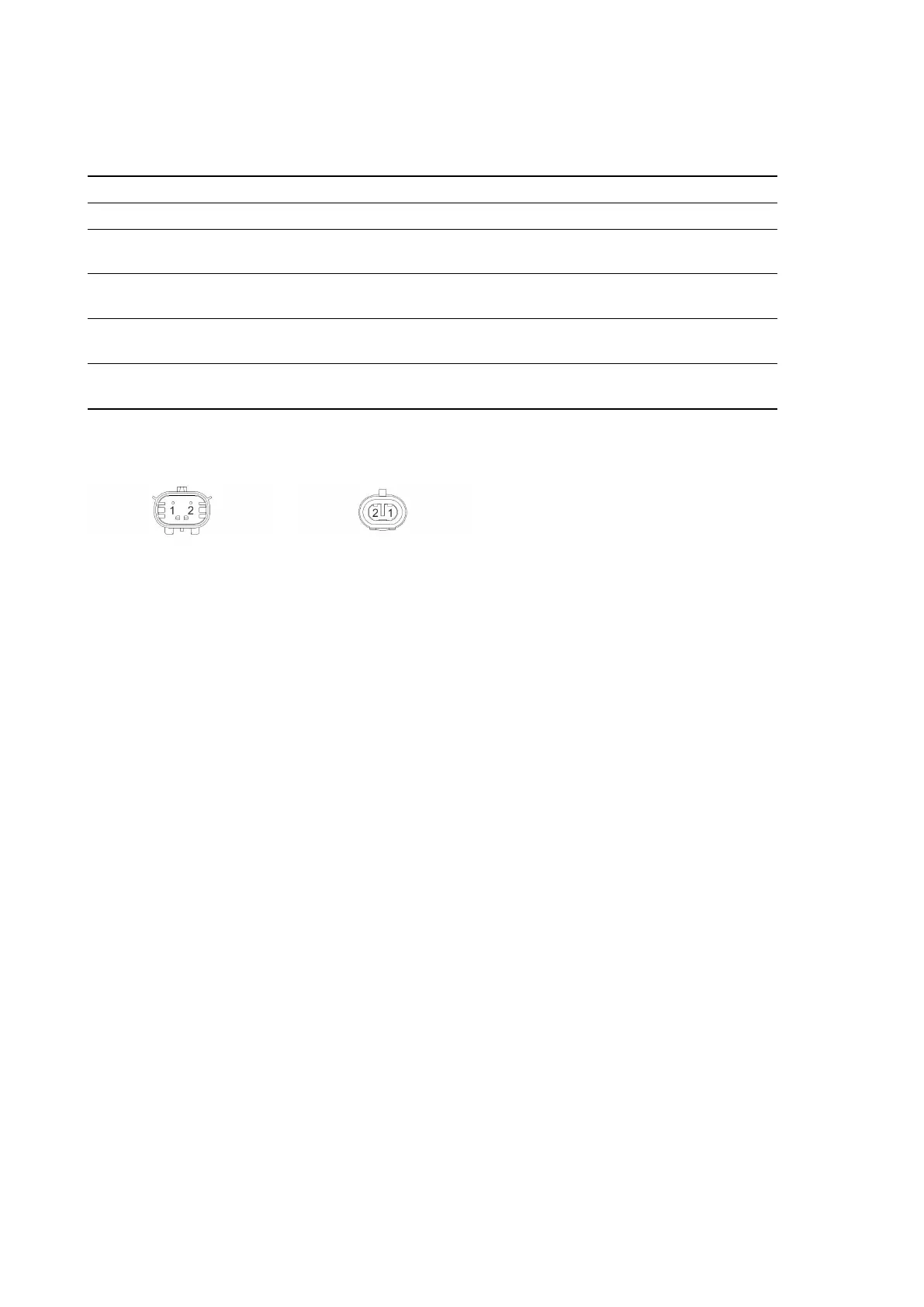

Error Codes of Charger
The charger have an alarm system through successive flashes of the yellow LED.
Error code
Flash Description
1 Battery not connected or reverse polarity or output short circuit.
Verify the battery connection.
2 Alarm time-out: damaged battery or battery capacity is too high
The alarm is reset disconnecting the main supply. If it persists consult your service.
3 Faulty battery charger
The alarm is reset disconnecting the main supply. If it persists consult your service.
4 Overtemperature
The alarm will be reset itself when the charger cools. Verify the ventilation.
Charger Cables Detail
1 Batteria -
2 Batteria +
1 Contatto COM Rel`e
2 Contatto NC Rel`e
40
