5.7.3 65 Brush Deck Actuator
(see section 4.7.2 at page 62)
5.8 Disassembly
5.8.1 Brush Flange
Remove the splash guards by unscrewing the wing nuts and re-
move the brush.

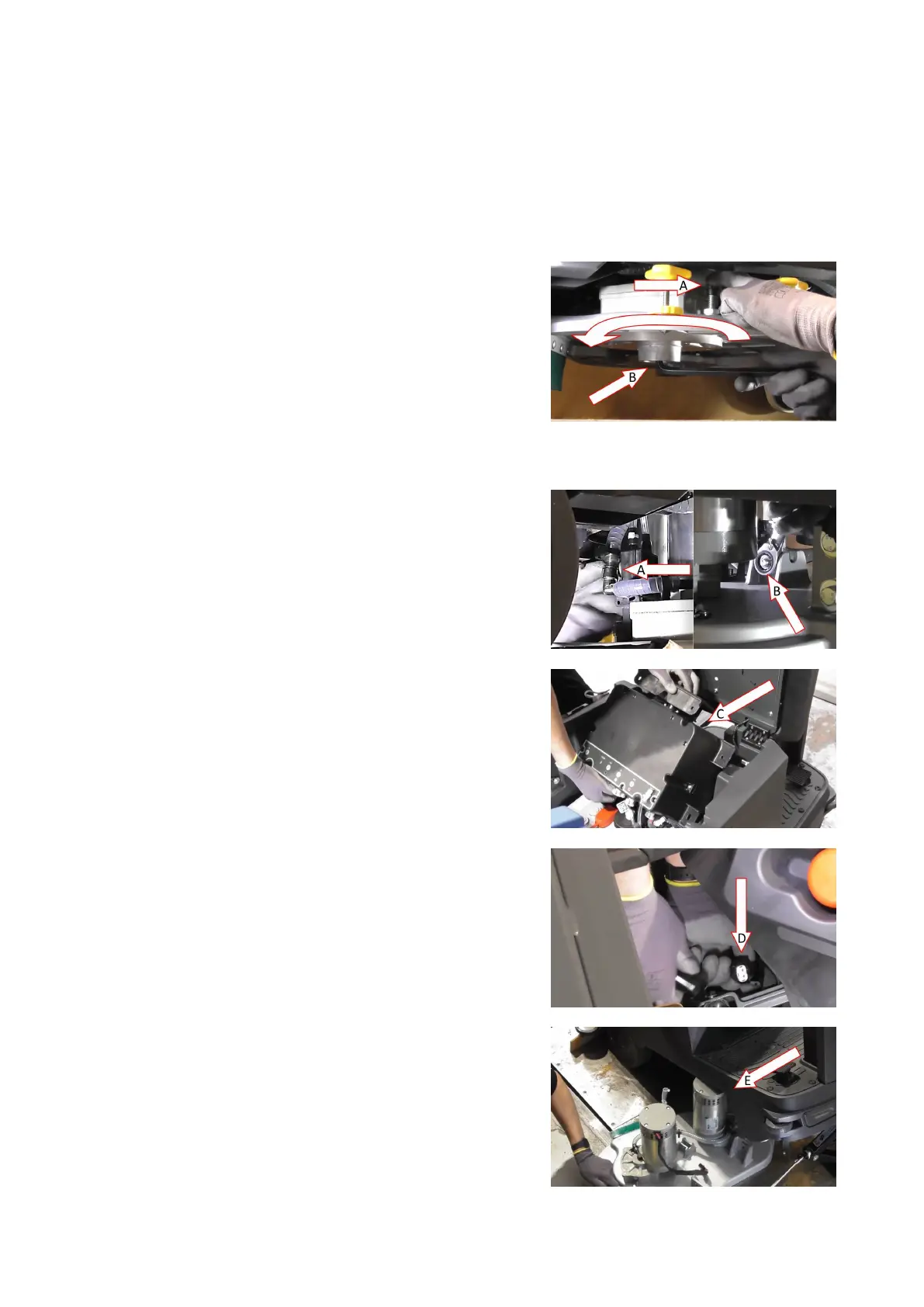

Press flange stop rod (A) to lock the flange. With the rod low-
ered, insert the Allen key (B) and unscrew it in the opposite
direction of the working brush.
Then proceed with the removal of the flange.
Perform the same operation with the other flange, paying atten-
tion to turn it in the opposite direction.
5.8.2 65 Brush Deck
Remove both brushes, close the water, lower the brush deck and
turn off the machine.
Remove the water supply hose from the distributor (A) and
unscrew the central support screw (B).
Release the compensation spring, remove the screw that holds the
left arm to the brush deck and the screws of the right arms to the
brush deck, paying attention to preserve washers and bushings.
Lift the recovery tank and remove the seat screws.
Disconnect the hoses from the water system box, remove the box
screws and reposition it tilted (C).
Between the water system box and the seat, disconnect the
power connectors of both motors (D).
Turn the machine On, let the actuator of the brush deck stand
up, turn the machine Off.
Lift the front of the machine with a suitable lifting system.
At this point remove the brush deck from the right side (E).
71
