Fimap BMg Series - Chapter 6 50 BTO Washing Unit

Chapter 6
50 BTO Washing Unit

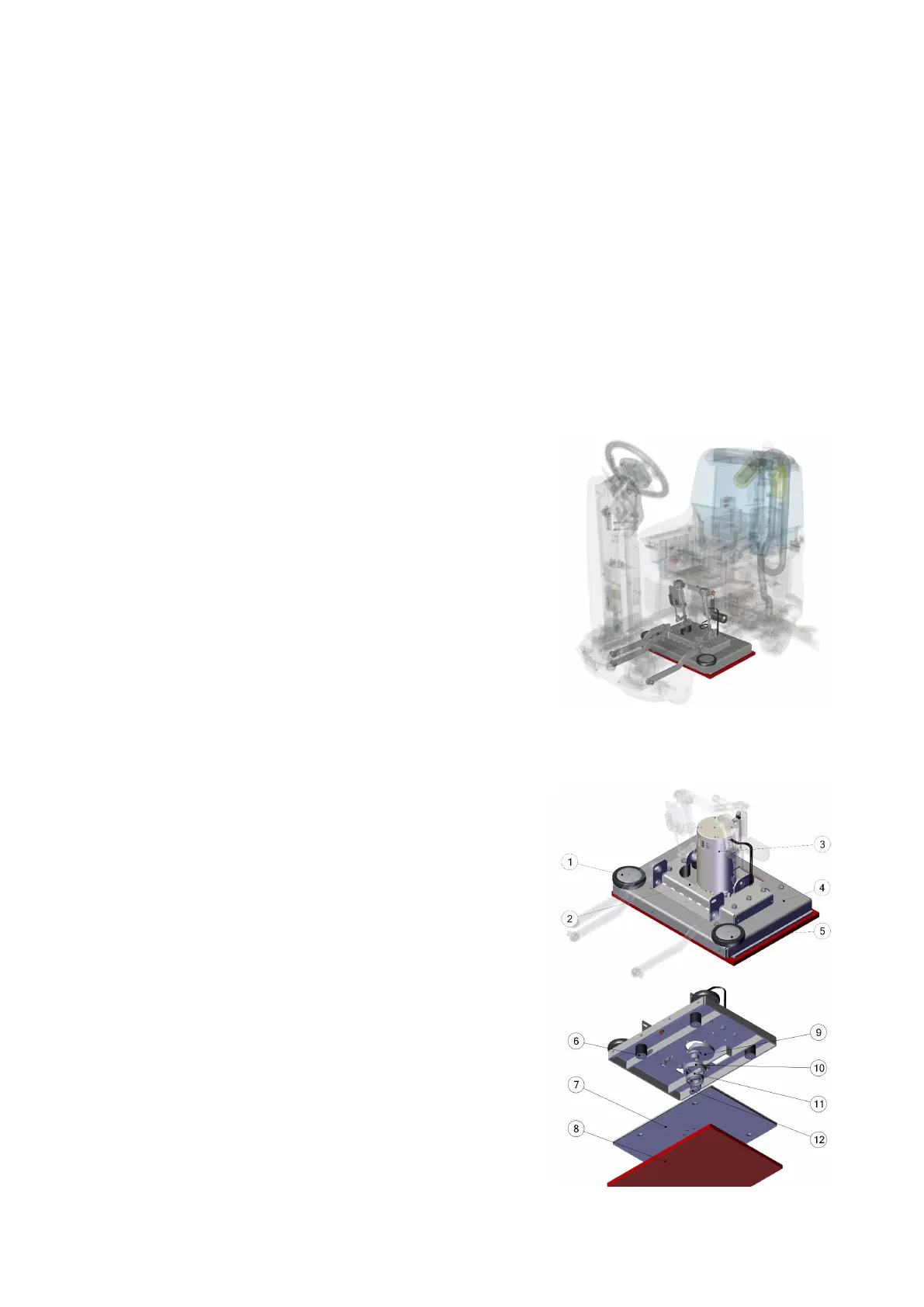

6.1 Location on machine
The orbital unit is located under the machine body in a central
position.
The orbital unit control is assembled above it
6.2 Main Components
1 Right Bumping wheel
2 Brush deck upper Body
3 Brush Motor
4 Brush deck lower Body
5 Left Bumping wheel
6 Antivibration
7 Orbital Brush deck Plate
8 Brush deck Pad
9 Eccentric Flange
10 Bearing housing
11 Bearing
12 Holding washer
