4.8 Disassembly
4.8.1 Brush Flange

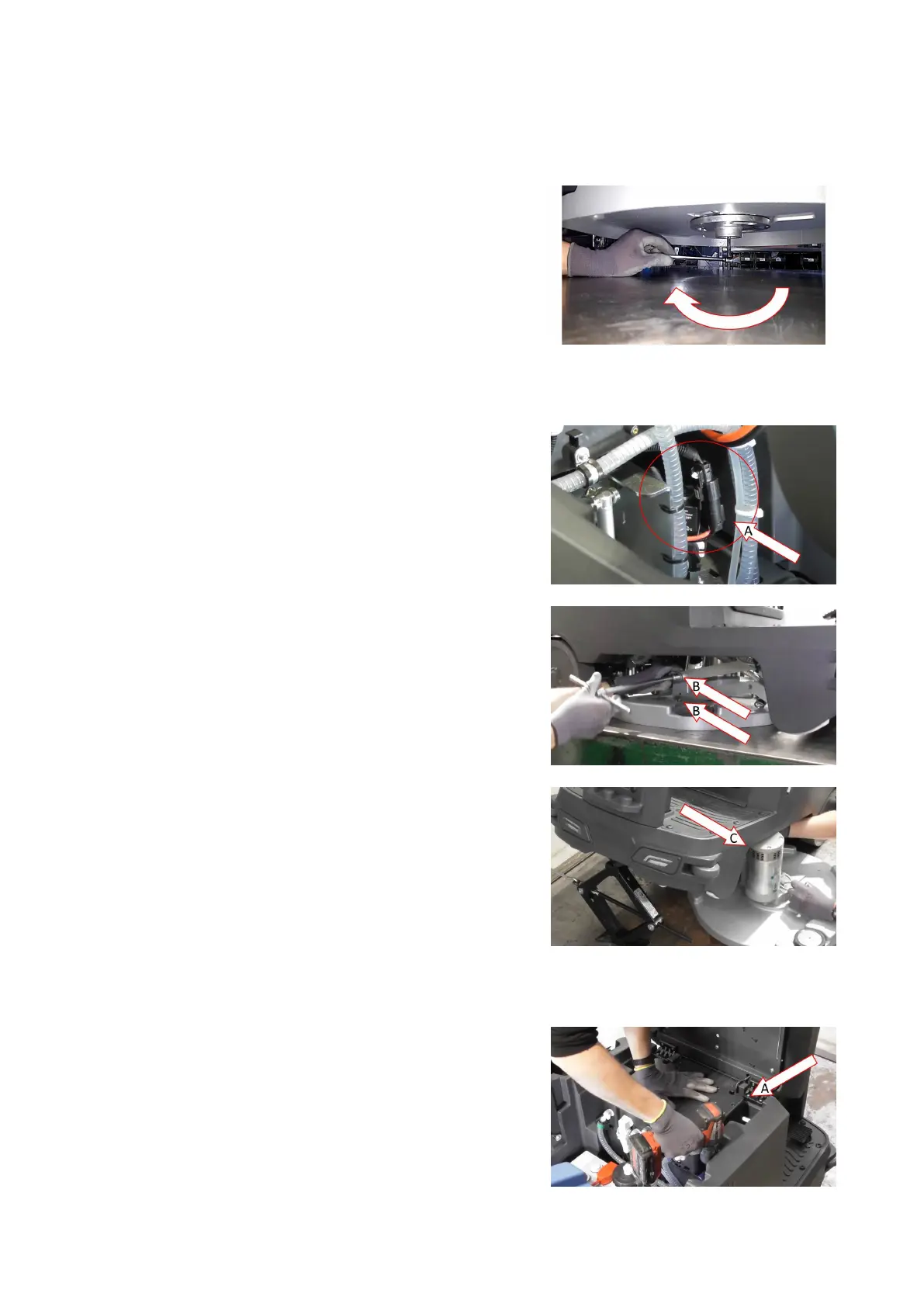

Remove the brush.
Insert the Allen key and unscrew it in the opposite direction of
the working brush.
Then proceed with the removal of the flange
4.8.2 56 Brush Deck
Remove the brush, close the water, lower the brushdeck and turn
the machine Off.
Remove the batteries, and disconnect the brush motor power
connector (A).
Release the compensation spring.
Unscrew the right and left screws (B).
At the base of the gear, disconnect the water flow tube.
Lift the front of the machine with a suitable lifting system.
At this point remove the base (C) from the left side.
4.8.3 Brush Deck Actuator
Lower the base and turn off the machine.
Lift the seat and remove the water system screws (A) to access
the actuator connector.
