Fimap BMg Series - Lubrication Points; Work Requirements

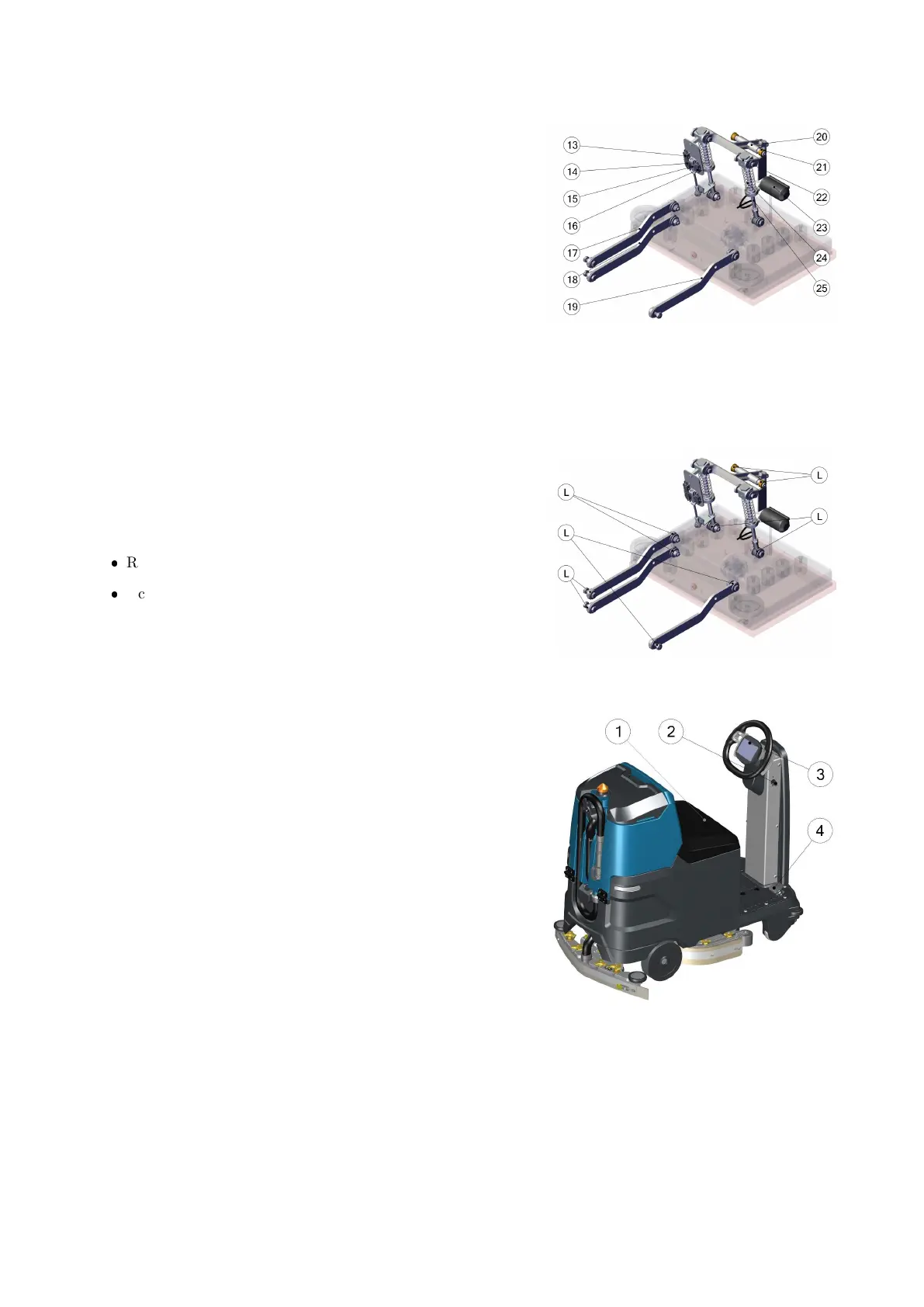

13 Pressure Microswitch 1
14 Max Pressure Microswitch 2
15 Microswitch activation Rod
16 Max Pressure Microswitch 3
17 Upper Lifting Arm
18 Lower Right Lifting Arm
19 Brush Deck Left Lifting Arm
20 Lifting Arm
21 Lifting Arm Bushings
22 Brush Deck lifting Pin Guide
23 Brushdeck Actuator
24 Brush Deck compensating Spring
25 Brush Deck lifting Pin
6.3 Lubrication Points
For lubrication use standard grease.
 Rotation Pin
 Actuator push Pin
6.4 Work requirements
The sweeping unit only works if the following conditions are met:
1. The batteries are not discharged.
2. The operator is seated on the machine so as to press the
seat safety switch (1).
3. The machine is on (2).
4. The electrobrake is activated.
5. The functions setting on the display is Washing or Washing
+ Drying (3).
6. The accelerator pedal is pressed(4).
