Fimap BMg Series - Chapter 9 Water Unit

Chapter 9
Water Unit
9.1 Location on machine

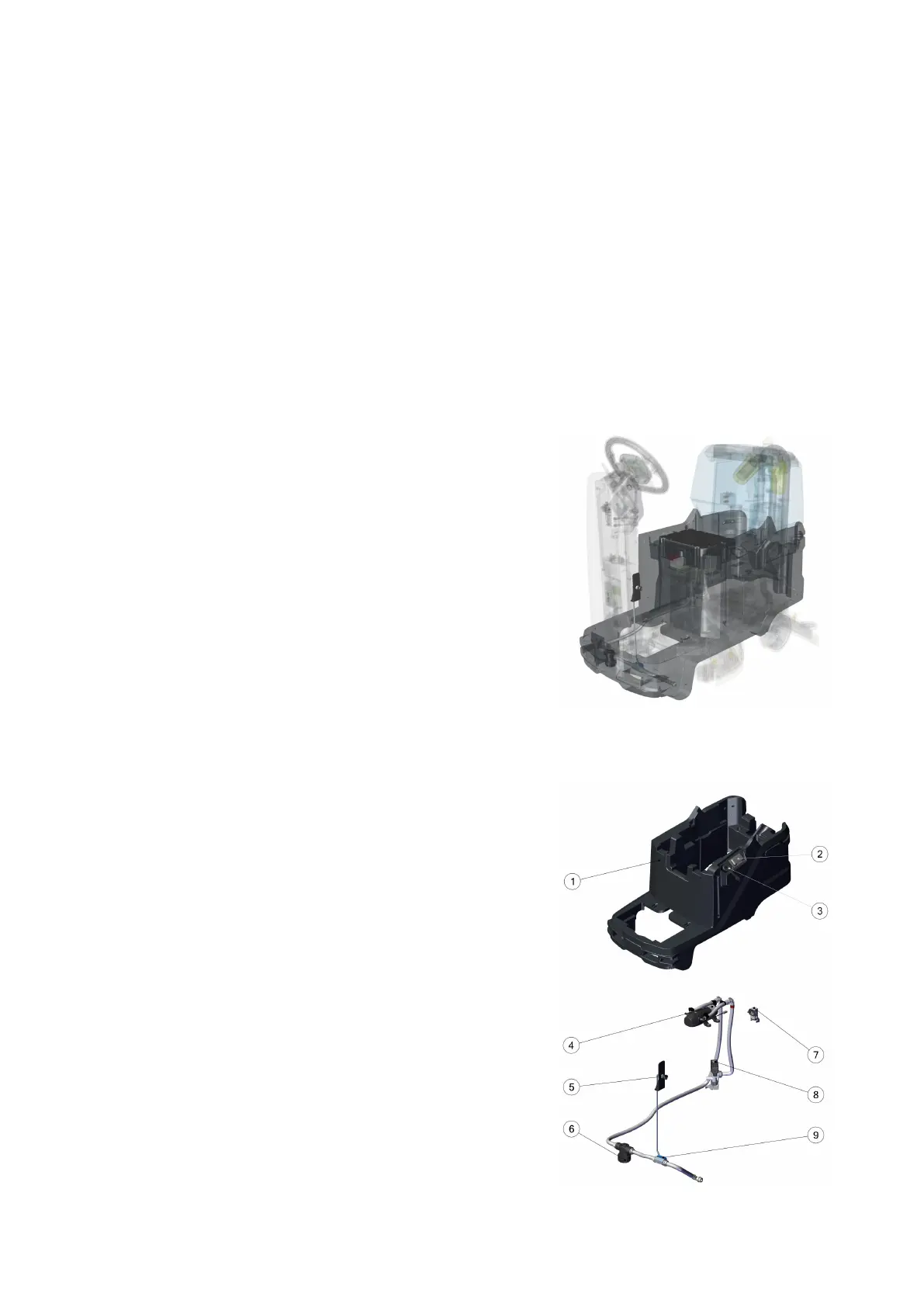

The Water unit is located under the machine body in central
position.
9.2 Main Components
1 Solution Tank
2 Chemical dosing Cap
3 Water fill Cap
4 Water Pump
5 Water Valve Knob
6 Water Filter
7 Pump group Connector
8 Solenoid
9 Water Valve
