Fimap BMg Series - Adjustments; Disassembly

Batteries
The batteries must have a voltage of 24V. Two 12V monoblock elements can be installed (see section 3.3.19 at page
33).
8.6 Adjustments

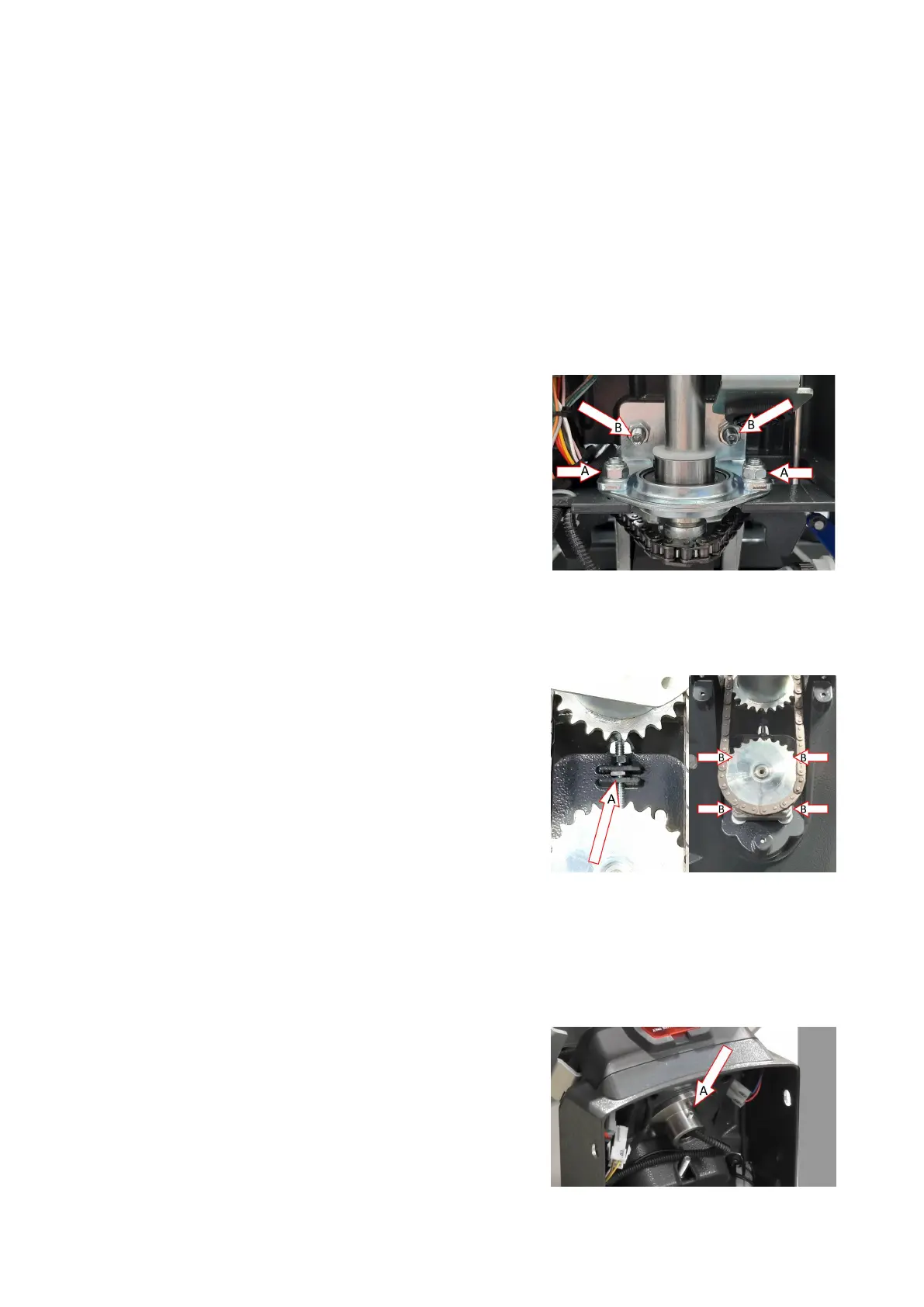

8.6.1 Steering Chain
Remove the front carter.
Loosen the 2 lower screws (A).
Loosen the lock nuts of the upper headless screws (B) and adjust
the distance from the steering column until a medium tension of
the chain is obtained, which must not have any slack. Tighten
the locknuts and the lower screws.
8.6.2 Steering Column Chain
Remove the front carter.
Remove the display and the steering wheel.
Loosen the four screws of the lower crown. (B).
Block the square nut (A) with a wrench and tighten the threaded
bar until the chain is in a medium tension.
Tighten the lower crown screws.
8.7 Disassembly
8.7.1 Touchscreen Display
Unscrew the 6 screws of the nose and remove it.
Unscrew the headless screw (A).
