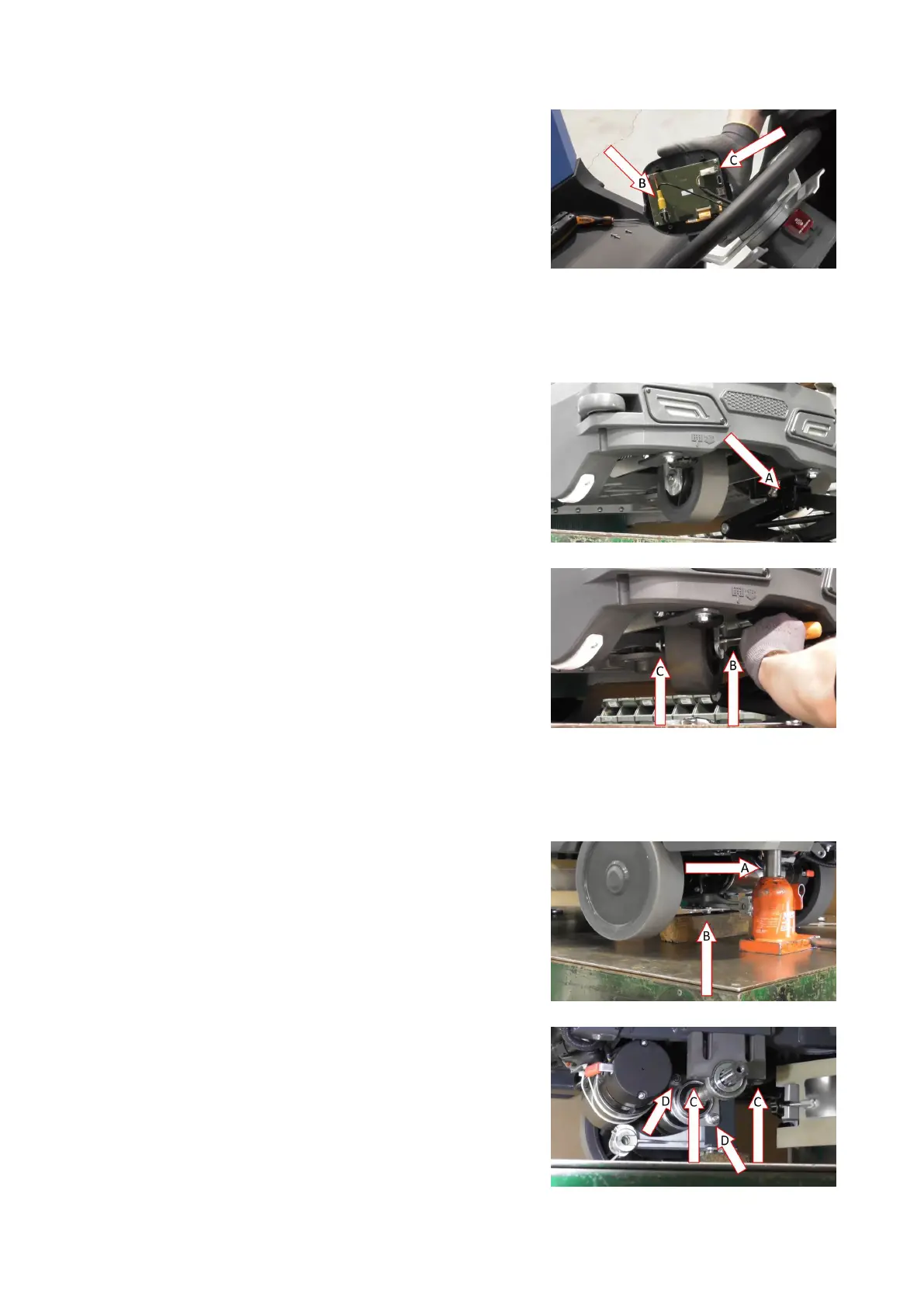

Slide out the display and remove the 4 screws on the back.
Open the display and remove connectors (B,C).
8.7.2 Front Wheel
Raise the machine with a hydraulic actuator (A). Unscrew the
screws also on the other side.
If necessary, use an instrument (B) to push the pin (C) out of
the seat.
8.7.3 Traction Gearmotor
Remove the Complete Squeegee Holder (see section 7.8.1 at page 86).
Place a wedge at the front of the front wheel.
Lift the rear part of the machine with a suitable lifting system
(A) and insert a shim (B) under the central screw of the squeegee
support hook.
Insert two wedges at the front of the machine, under the two
anti-tipping points.
Remove the right wheel and the lower part of the relative bearing
support (C). Remove the central bearing fixing nuts (D), and
extract the axle shaft from the gear.
93
