Fimap BMg Series - Page 85

Functionality Check - Vacuum Unit
Conventions:
 +V
b
: Positive voltage of the battery.
 −V
b
: Negative voltage of the battery.
 The emergency button is not pressed, the key contact is closed and the charger is not connected to the
mains.
 The Vacuum system is in working condition.
Input/output:
Satisfied condition Pin V at work V at rest
Vacuum Motor Activated XD(1) ref to XD(2) +V
b
−V
b
Vacuum Wand Activated J1(8) ref to J7(18) +V
b
−V
b
Display Transmitting J1(7) ref to B- +V
b
−V
b
Display Negative J1(4) ref to B- −V
b
−V
b
Display Receiving J1(7) ref to B- +V
b
−V
b
Display Positive J1(8) ref to B- +V
b
+V
b
Electrobrake Activated J2(1) ref to J2(2) +V
b
−V
b
Traction pedal pressed J5(3) ref to J5(6) +V
b
−V
b
Backward Activated J7(11) ref to J7(16) +V
b
−V
b
Seated Operator J7(15) ref to J7(1) +V
b
−V
b
Squeegee Actuator in motion J13(1) ref to J13(4) +V
b
−V
b

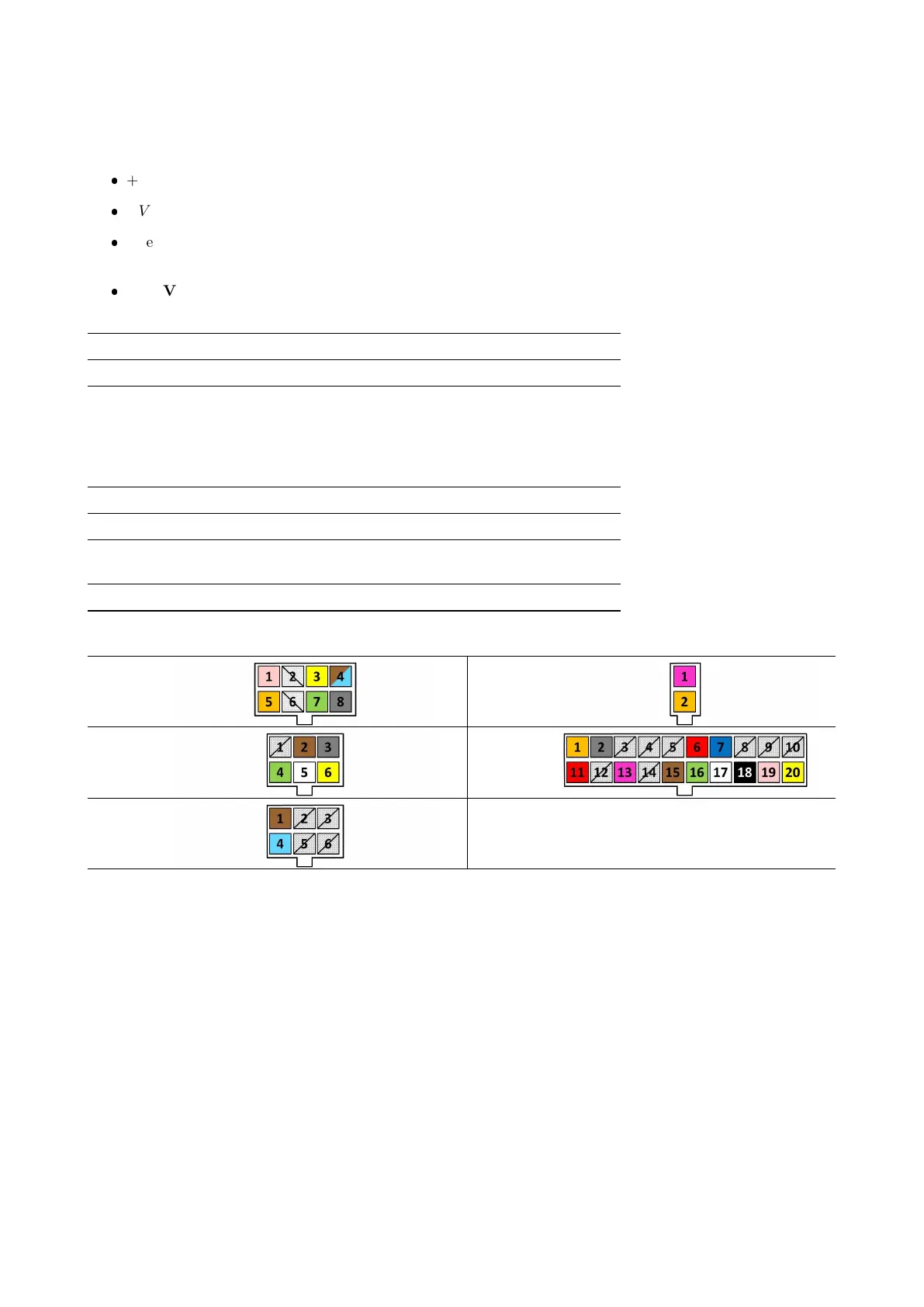

J1 J2
J5 J7
J13
7.6.1 Relative electrical Components
Vacuum Motor
The vacuum motor produces a vacuum in the system upstream of it which causes a flow of air that runs through
the entire drying system and allows the water to be sucked together with the air.
2 Stages Motor
With a constant 24 V DC supply (full battery) the single motor without load (M3) draws 17,6 Amps ± 0,1.
With a constant 21 V DC supply (low battery) the absorption is 15,9 Amps ± 0,1.
3 Stages Motor
With a constant 24 V DC supply (full battery) the single motor without load (M3) draws 24,0 Amps ± 0,1.
With a constant 21 V DC supply (low battery) the absorption is 22,0 Amps ± 0,1.
Actuator
The squeegee lifting actuator, by means of the lever and the tie rod, lowers the squeegee and pushes it to the
ground.
85
